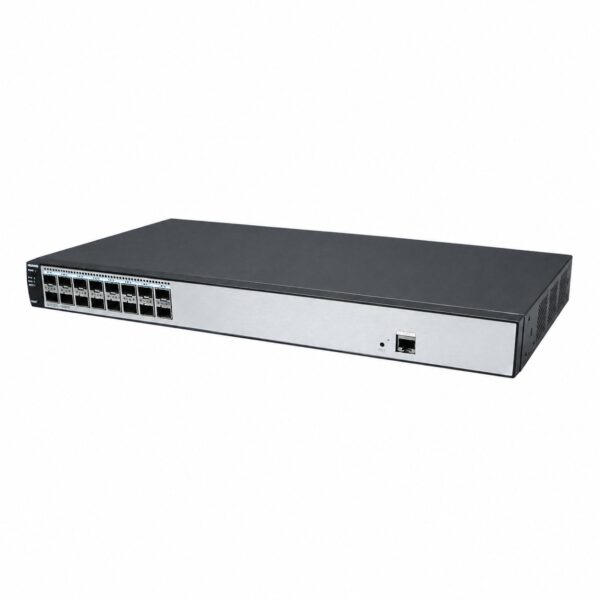

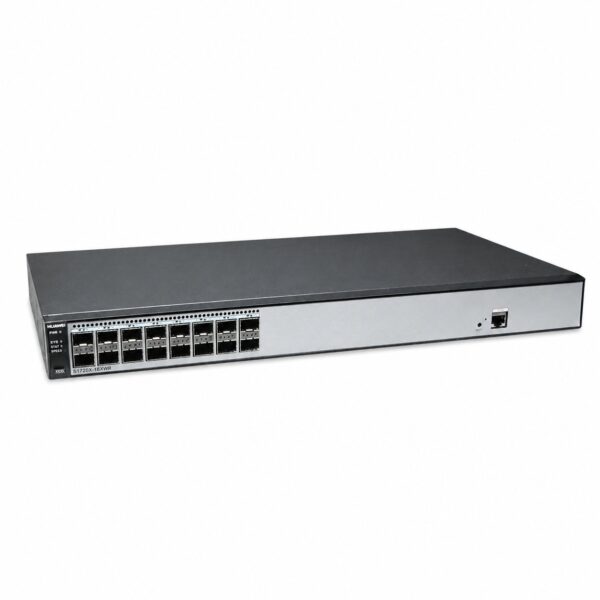

Huawei S1720X-16XWR-AC Switch – Product Documentation & Specifications

Product Documentation List

Document Type	Description
Product Datasheet	Comprehensive specifications, fixed port configuration, forwarding performance, switching capacity, memory, security features, VLAN, QoS, STP, multicast, routing, link aggregation, port mirroring, bandwidth control, device management, and power specifications
S200 & S1700 Switch Product Description	Detailed hardware description including appearance, indicators, button functions, port layouts, and physical structure
Product Features Guide	Management methods overview including Web, SNMP, CLI (with license), and console port support; license upgrade path from web-managed to fully-managed model
Quick Installation Guide	Installation instructions, cabling guidance, and packing list
Web User Guide	Web-based configuration interface documentation for S1720X series switches

Product Overview

The Huawei S1720X-16XWR-AC is a next-generation energy-saving Ethernet access switch featuring 16 x 10GE SFP+ ports with fixed AC power supply. It is part of the Huawei S1700 series, deployed at the access layer of enterprise networks to deliver cost-effective packet switching capabilities.

The switch provides a switching capacity of 680 Gbit/s and a forwarding performance of 240 Mpps. It is ideally suited for small and medium-sized enterprises, Internet cafés, hotels, and schools, offering easy installation and maintenance while helping customers build secure, reliable, and high-performance networks.

The S1700 series delivers multi-service access capabilities, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security, and can be used to build ring topologies of high reliability. The S1720X-16XWR features three built-in fans for forced air cooling and supports energy-efficient Ethernet (EEE), allowing the switch to enter a power-saving mode when traffic is light.

The S1720X series web-managed switches provide telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight, which analyzes network data based on intelligent fault identification algorithms to accurately display real-time network status and identify network problems that affect user experience.

Product Specifications

Category	Specification
Product Model	S1720X-16XWR-AC
Product Type	Managed switch
Application Level	Layer 3
Transmission Rate	10000 Mbps
Switching Capacity	680 Gbit/s
Forwarding Performance	240 Mpps
MAC Address Table	32K
Fixed Ports	16 x 10GE SFP+ ports (can be used for both upstream and downstream transmission)
Port Structure	Non-modular
Port Description	16 x 10 Gig SFP+
Memory (RAM)	1 GB
Flash Memory	240 MB
VLAN	4K VLANs; VLAN assignment based on access, trunk, and hybrid ports; Management VLAN; Voice VLAN
QoS	PQ and WRR; Eight queues on each port; Queue scheduling based on 802.1p or DSCP priorities
STP	STP (IEEE 802.1d); RSTP (IEEE 802.1w); MSTP (IEEE 802.1s)
Multicast	IGMP snooping; Maximum of 1K multicast groups; Fast leave
Routing Feature	IPv4 and IPv6 static routing
Link Aggregation	64 Link Aggregation Groups (LAGs); Maximum of eight ports in each LAG; Static LACP
Port Mirroring	Port-based bi-directional flow mirroring
Bandwidth Control	Rate limiting for incoming and outgoing packets with granularity of 64 kbit/s
Broadcast Storm Suppression	Broadcast storm suppression based on interface rate; Alarm sending when traffic rate reaches upper limit
Security Features	Packet filtering based on MAC addresses; MAC address authentication; Port-based 802.1x authentication; RADIUS authentication; Portal authentication; Port isolation; Storm suppression; DHCP snooping
Device Management	Web system network management; DHCP client; One-key restoration
Device Maintenance	System log; Ping; Virtual Cable Test (VCT); Link Layer Discovery Protocol (LLDP)
License Upgrade	Web-managed S1720 model can be upgraded to fully-managed model (SNMP/CLI) by purchasing a license
AC Input Voltage (Rated)	100 V to 240 V AC; 50/60 Hz
AC Input Voltage (Maximum)	90 V to 264 V AC; 47 Hz to 63 Hz
Maximum Power Consumption	<61.3 W
Dimensions (W × D × H)	420 × 220 × 43.6 mm
