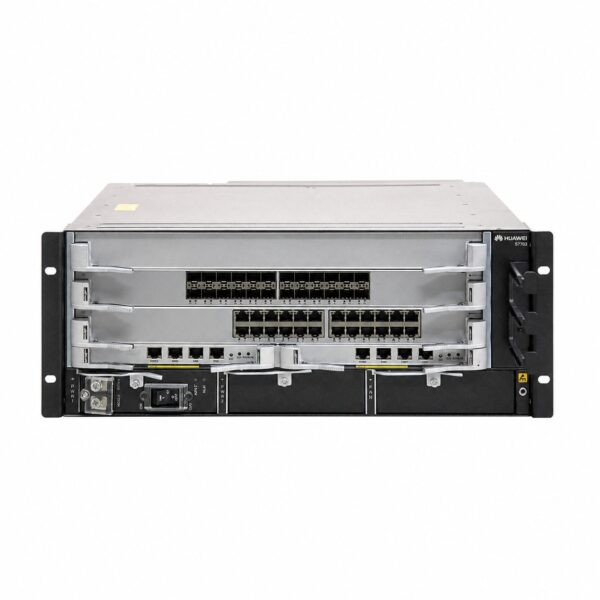

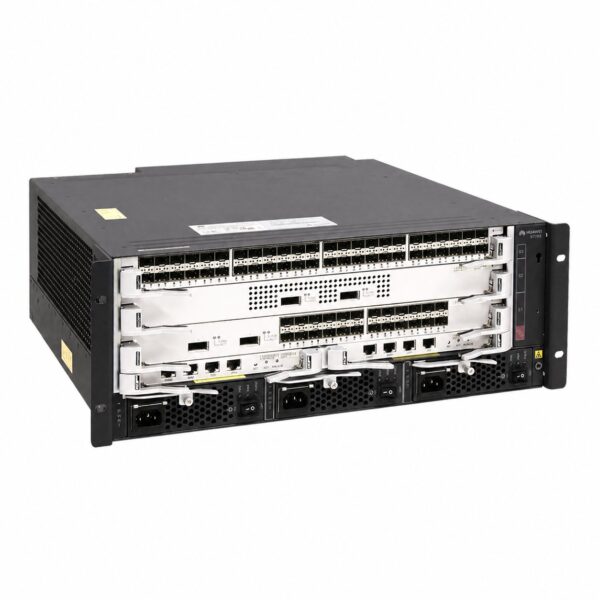

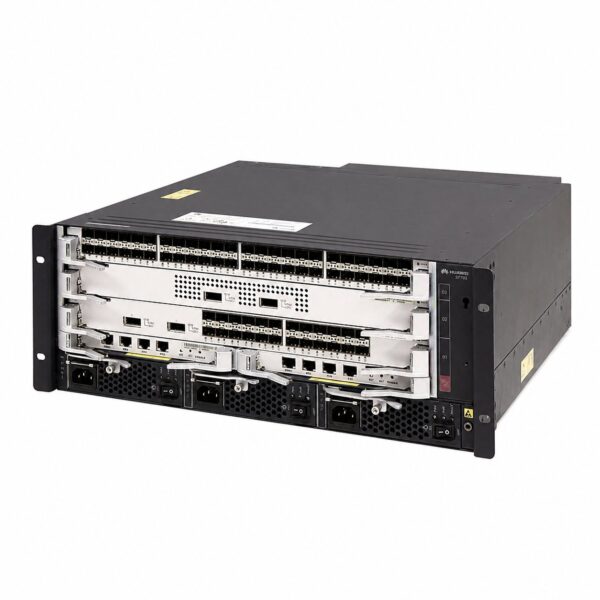

Huawei CloudEngine S7703 – Product Documentation

Name: Huawei CloudEngine S7703 - SunSpike
SKU: S7703

Product Overview

The Huawei CloudEngine S7703 is a high-end modular chassis switch from the S7700 series, designed for next-generation enterprise networks. It is a 4U smart routing switch that delivers high-performance Layer 2 to Layer 4 switching services alongside intelligent service optimization capabilities, including MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and integrated security.

The S7703 chassis features a modular architecture with hot-swappable Main Control Units (MCUs) and Line Processing Units (LPUs), allowing flexible customization for campus core/aggregation or data center deployments. It supports up to 144 × 10GE, 36 × 40GE, or 18 × 100GE ports per chassis, with a switching capacity of 1.92 Tbps and forwarding performance of 1440 Mpps.

Key intelligent features include built-in native Access Controller (AC) capabilities supporting up to 4K APs for wireless convergence, unified user management with multiple authentication methods (PPPoE, 802.1X, MAC, Portal), Super Virtual Fabric 2.0 (SVF 2.0) for network virtualization and simplified management, and iPCA network quality awareness for real-time service flow monitoring.

The S7703 is built on a fully programmable hardware architecture with energy-efficient chips and left-to-rear airflow design. Key components such as main control units, power modules, and fan trays operate in redundancy mode to minimize system downtime. The switch supports advanced features including VXLAN with BGP-EVPN, MACsec encryption, IPv4/IPv6 dual-stack routing, and OpenFlow 1.3.

Product Specifications

Parameter	Specification
Model	Huawei CloudEngine S7703
Chassis Type	Modular Chassis Switch
Chassis Height	4U
Dimensions (H × W × D)	175 mm × 442 mm × 476 mm (S7703) / 175 mm × 442 mm × 517 mm (S7703-PoE)
Weight (Empty)	< 14 kg
Main Control Unit (MCU) Slots	2
Line Processing Unit (LPU) Slots	3
Fan Slots	1 (hot-swappable)
Power Supply Slots	S7703: 2 system + 1 PoE; S7703-PoE: 3 shared
Switching Capacity	1.92 Tbps
Forwarding Performance	1440 Mpps
System Memory (DRAM)	16 GB
Storage (NAND Flash)	2 GB
System Buffer	8 MB
Maximum Port Density (per Chassis)	144 × FE, 144 × GE, 144 × 10GE, 72 × Multi-GE, 36 × 40GE, 18 × 100GE
Maximum 10GE Ports	Up to 144
Maximum 40GE Ports	Up to 36
Maximum 100GE Ports	Up to 18
MAC Table Entries	Up to 1,000,000
Redundancy Design	MCU, Power Modules, CMU, Fan Trays
Power Supply Options	AC (800 W or 2200 W) and DC (1600 W or 2200 W)
Power Consumption	< 800 W
Operating Temperature	0°C to 45°C

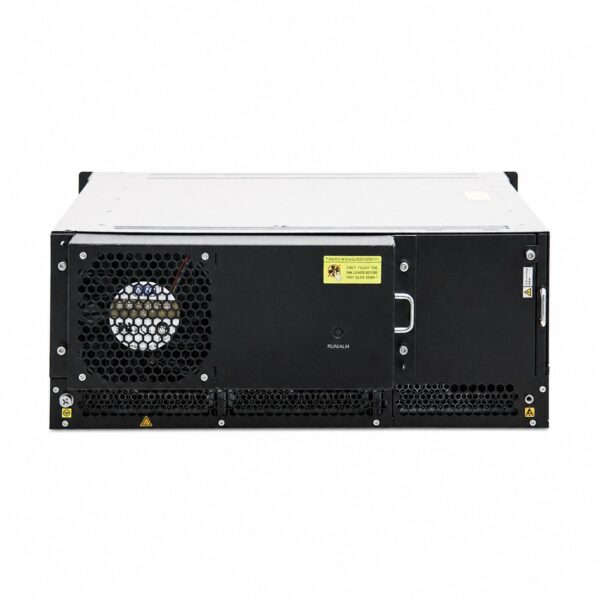

Airflow	Left-to-rear
Installation	N66E or N68E cabinet, one chassis per cabinet

Supported Protocols & Features

Category	Supported Features
Virtualization	VXLAN, BGP-EVPN, SVF 2.0
Security	MACsec encryption, NAC (802.1X, Portal, MAC, DHCP), TPM-trusted boot, DoS protection
Routing (IPv4)	Static routes, RIP, OSPF, IS-IS, BGP4
Routing (IPv6)	Static routes, RIPng, OSPFv3, IS-ISv6, BGP4+
IPv6 Transition	IPv6 manual tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel, IPv4-compatible automatic tunnel
MPLS	MPLS VPN
QoS	HQoS, hardware-assisted traffic analysis
OAM & Detection	IEEE 802.1ag, Y.1731, BFD, HSR
OpenFlow	OpenFlow 1.3, multi-controller support, up to 256K flow tables
Wireless Management	Native AC, supports up to 4K APs
User Management	Unified user management, PPPoE, 802.1X, MAC, Portal authentication
Data Center Features	TRILL, FCoE, EVN, nCenter, EVB, SPB
Interoperability	VBST (compatible with PVST/PVST+/RPVST), LNP, VCMP
