Huawei CloudEngine CE16816-DC Data Center Switch – Product Documentation

Product Documentation List

Document Title	Description
CloudEngine 16800 Series Switches Hardware Description (V300)	Comprehensive hardware overview covering chassis, power modules, fan modules, cards, cables, and pluggable modules for the CE16800 series
CloudEngine 16800 Data Center Switch Datasheet	Detailed product specifications, switching capacity, port density, and feature descriptions for the CE16800 series
CloudEngine 16800 Series Product Overview (Enterprise Portal)	High-level product introduction covering architecture, iLossless algorithm, intelligent O&M, and key specifications
CloudEngine 16800 Series Configuration Guides	Step-by-step configuration documentation for various features including M-LAG, VXLAN, routing protocols, and system management
CloudEngine 16800 Series Power Supply System Overview	Detailed documentation on power supply architecture, PEM modules, and power redundancy configurations
CloudEngine 16800 Series M-LAG Configuration Guide	Comprehensive guide for M-LAG deployment, including dual-homing and multi-chassis link aggregation configurations
CloudEngine 16800 Series VXLAN Configuration Guide	Documentation covering VXLAN routing, bridging, BGP-EVPN control plane, and QinQ access VXLAN deployments
CloudEngine 16800 Series O&M and Telemetry Guide	Documentation on telemetry-based data collection, iPCA, ERSPAN+, and Fabric Insight integration for network visualization
CloudEngine 16800 Series Programmability Guide	NETCONF interface documentation and Ansible-based automation configuration guides

Product Overview

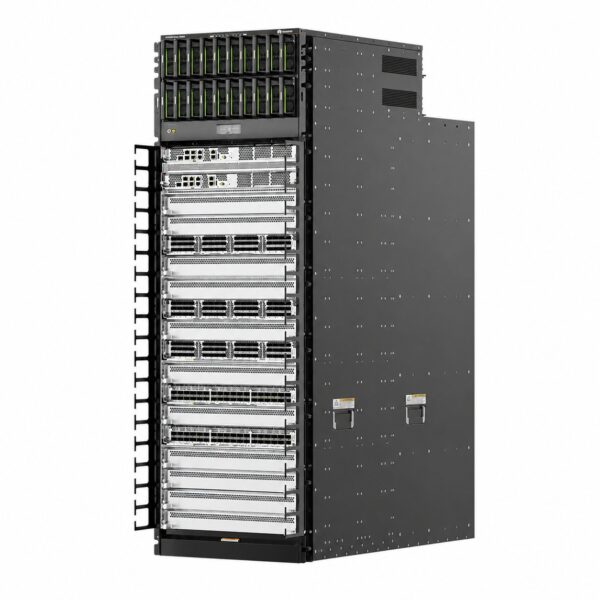

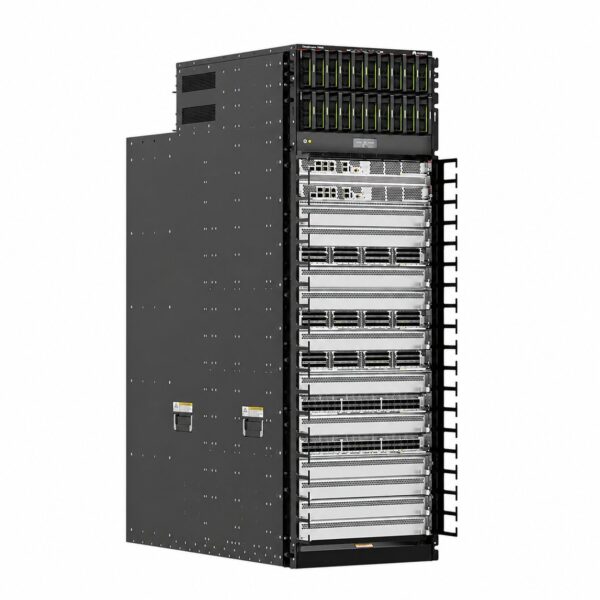

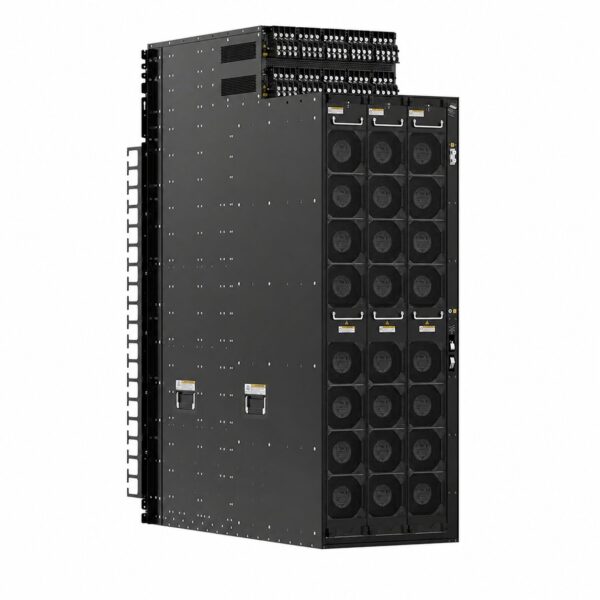

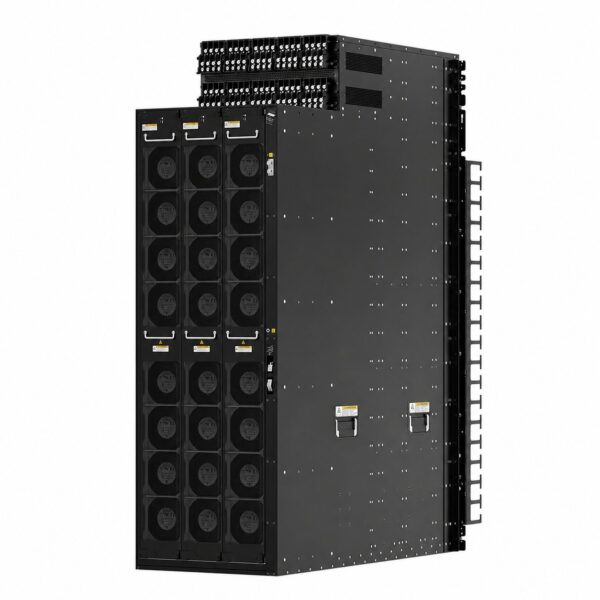

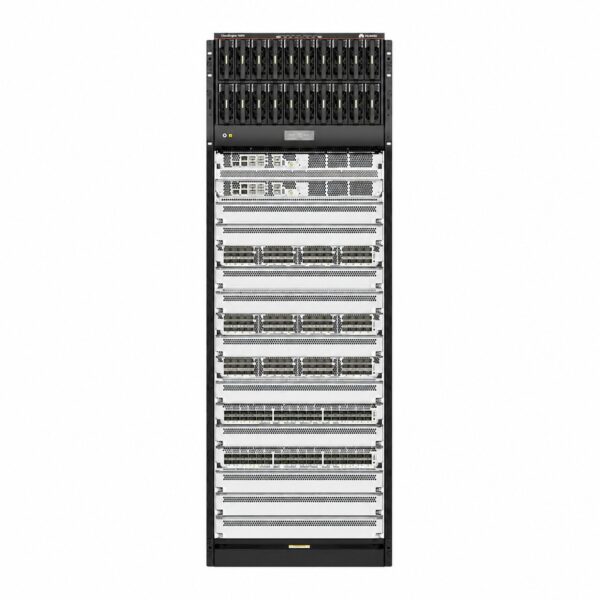

The Huawei CloudEngine CE16816-DC is a high-performance modular data center core switch belonging to the CloudEngine 16800 series. It is the data center switch built for the AI era, designed for large-scale data center deployments, cloud computing environments, and cross-regional computing power scheduling scenarios such as integrated big data centers.

The CE16816-DC features an innovative backplane-free Clos switching architecture with cell switching and VoQ (Virtual Output Queue) technology. It provides 16 service slots and 9 switching fabric module slots, delivering massive switching capacity of up to 178 Tbps (hardware switching capacity) and packet forwarding rates of up to 921,600 Mpps. The switch supports high-density port configurations including up to 576 x 400GE, 768 x 100GE, 768 x 40GE, 792 x 25GE, or 792 x 10GE line-rate ports.

The CloudEngine 16800 incorporates the unique iLossless intelligent lossless algorithm that learns and trains network-wide traffic in real time, implementing zero packet loss and end-to-end microsecond-level latency to achieve maximum throughput. The switch supports intelligent O&M with millisecond-level telemetry data collection, enabling fault location within 3 minutes and prediction of 90% of risks.

The DC version (CE16816-DC) is specifically designed for -48V/-60V DC power environments with a strict front-to-back airflow design and a 32.3 U chassis height. It supports comprehensive virtualization features including M-LAG, VS (1:16 virtualization), and Cluster Switch System (CSS), as well as VXLAN routing and bridging with BGP-EVPN control plane.

Technical Specifications

Category	Parameter	Specification
General Information	Part Number	02353BXE
	Model	CE16816-DC
	First Supported Version	V200: V200R005C20; V300: V300R020C00
	Product Type	Data Center Core Switch / Enterprise-Class Modular Switch
	Switching Architecture	Clos architecture, cell switching, VoQ
	Form Factor	Modular
Switching Performance	Switching Capacity	178 Tbps (hardware)
	Maximum Switching Capacity	3615 Tbps / 10844 Tbps
	Packet Forwarding Rate	921,600 Mpps
Slots	Service Slots	16
	Switching Fabric Module Slots	9
	Redundant MPUs	1:1
	Redundant Switch Fabrics	N+M
Power Supply	Power Supply Mode	DC
	Number of Power Modules	20
	Rated Input Voltage	-48 V / -60 V
	Input Voltage Range	-40 V to -72 V
	Maximum Input Current	58.5 A (at -40 V)
	Redundant Power Supply	N+1 backup recommended (dual-input or single-input system)
Cooling	Heat Dissipation Mode	Fan-based heat dissipation
	Airflow Direction	Strict front-to-back airflow
	Redundant Fans	Hot standby mode
Physical Specifications	Chassis Height	32.3 U
	Chassis Dimensions (H x W x D)	1436 mm x 483 mm x 1144 mm (with mounting ears and cable management brackets)
	Dimensions with Packaging (H x W x D)	1695 mm x 770 mm x 1350 mm (66.73 in. x 30.31 in. x 53.15 in.)
	Weight (Base, without packaging)	262.8 kg (with dual MPU dummy panels)
	Weight (Fully Configured, without packaging)	569.6 kg – 627.2 kg
Environmental Specifications	Long-Term Operating Temperature	0°C to 40°C (32°F to 104°F)
	Long-Term Operating Relative Humidity	5% RH to 85% RH, noncondensing
	Long-Term Operating Altitude	≤ 5000 m (16404 ft.)
	Altitude Derating	Above 1800 m, max operating temperature reduces by 1°C per 220 m increase
Reliability	Availability	0.9999970745
	MTBF	32.68 years
	MTTR	1 hour
Virtualization	M-LAG	Supported
	VS (Virtual System)	1:16 virtualization
	CSS (Cluster Switch System)	Supported
	VXLAN	VXLAN routing and bridging, QinQ access VXLAN
	BGP-EVPN	Supported
L2/L3 Features	Layer 2 Protocols	VLAN, STP, LACP
	Layer 3 Protocols	Static route, IPv4/IPv6 dynamic routing protocols
	IP Packet Fragmentation and Reassembly	Supported
Reliability Features	Microsegmentation	Supported (IPv4 and IPv6)
	Hardware-Based BFD	Supported
	VRRP	Supported
O&M	Telemetry	Supported
	ERSPAN+ / iPCA	Supported
	Netstream / sFlow	Supported
Programmability	NETCONF Interface	Standard northbound interface
	Ansible Automation	Supported with open-source module release
Data Center Features	1588v2	Supported
	RoCE V1/V2	Supported
	PFC / AI ECN	Supported
Cabinet Installation	Cabinet Installation Standards	A812
