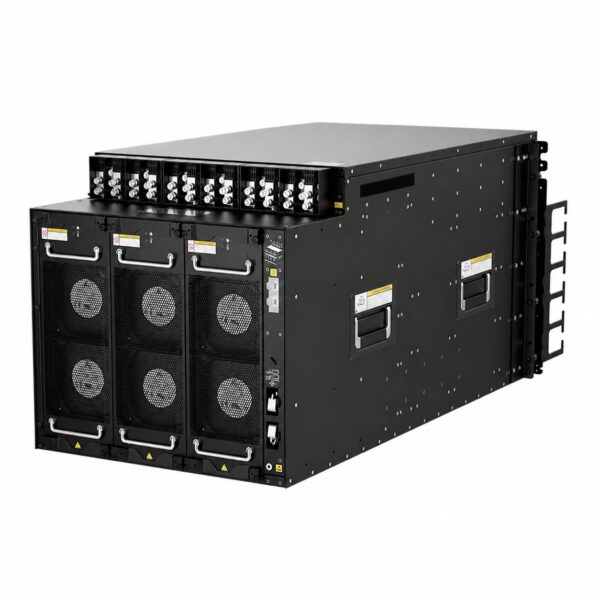

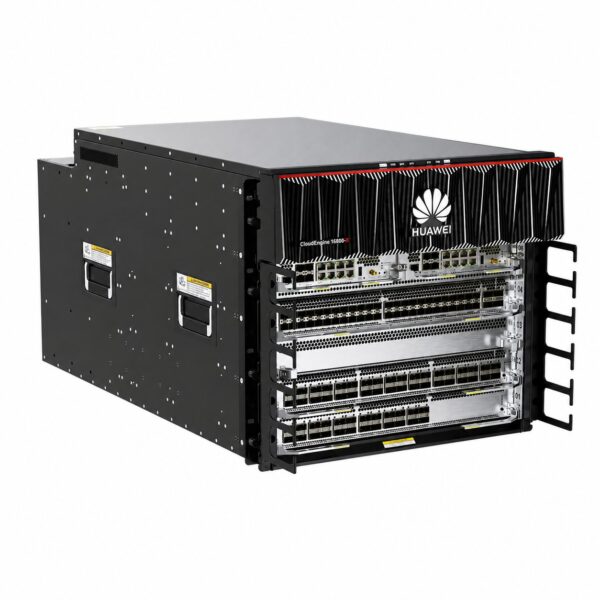

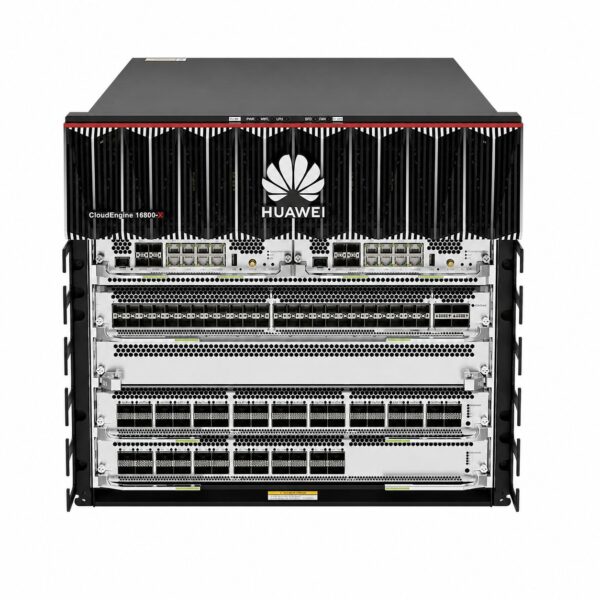

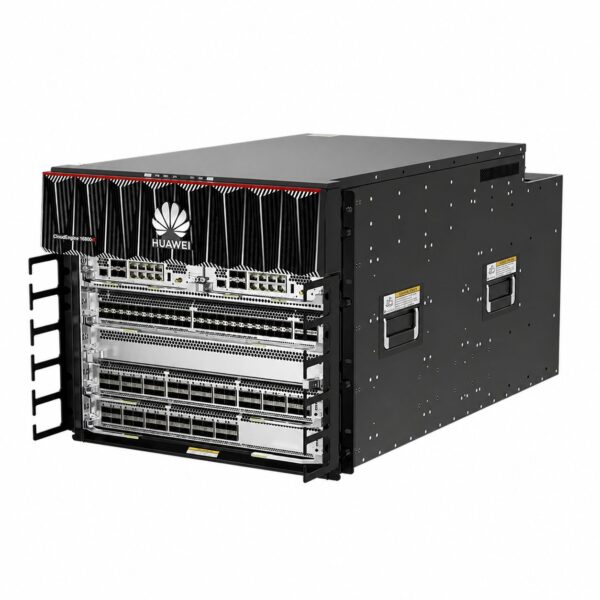

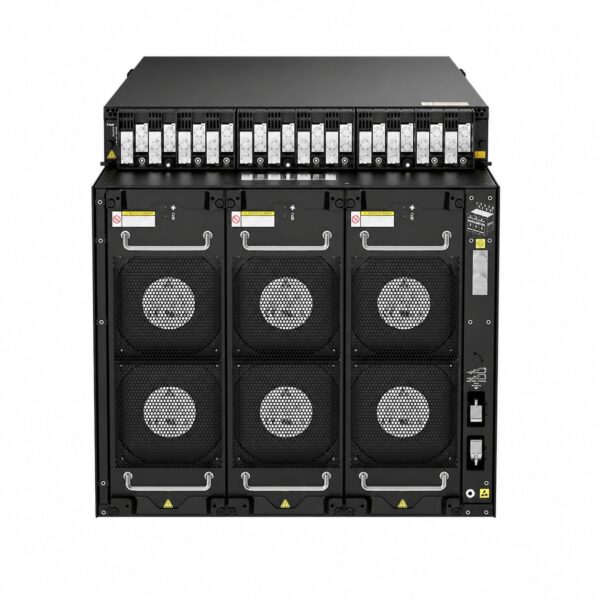

Huawei CloudEngine CE16800-X4-DC Data Center Switch – Product Documentation

Product Documentation List

Document Title	Description
Huawei CloudEngine 16800-X Data Center Switch Datasheet	Comprehensive datasheet covering the entire CloudEngine 16800-X series, including product overview, features, and full specifications
CloudEngine 16800-X Series Data Center Switch Brochure	Product brochure detailing the 16800-X series architecture, highlights, and key capabilities
CloudEngine 16800-X4 Hardware Description	Detailed hardware documentation covering chassis, power modules, fan modules, MPUs, LPUs, SFUs, and cable specifications
CloudEngine 16800 Series Switches Hardware Installation and Maintenance Guide (V300)	Comprehensive installation and maintenance guide covering the CloudEngine 16800-X4 DC chassis, including cabinet installation procedures and clearance requirements
CloudEngine 16800-X4 M-LAG Configuration Guide	Comprehensive guide for M-LAG deployment, including dual-homing and multi-chassis link aggregation configurations
CloudEngine 16800-X4 VXLAN Configuration Guide	Documentation covering VXLAN routing and bridging with BGP-EVPN control plane
CloudEngine 16800-X4 Programmability and Automation Guide	NETCONF interface documentation, Open API integration, OPS programming, and Ansible-based automation configuration guides
CloudEngine 16800-X4 O&M and Telemetry Guide	Documentation on telemetry, NetStream, and iMaster NCE-FabricInsight integration for intelligent O&M
CloudEngine 16800-X4 Power Supply System Overview	Detailed documentation on DC power supply architecture, power modules (PMs), power entry modules (PEMs), and redundancy configurations

Product Overview

The Huawei CloudEngine CE16800-X4-DC is a high-density, 4-slot data center core switch belonging to the CloudEngine 16800-X series. It is Huawei’s first data center core switch designed for the era of diversified computing power, built for large-scale data center deployments, cloud cores, and AI-era network infrastructures.

The CE16800-X4-DC features an innovative backplane-free Clos orthogonal architecture with separate control plane, data plane, and monitoring plane. It provides 4 service slots and 8 switching fabric module slots (scalable to 9 for future expansion), delivering switching capacity of up to 387 Tbps and packet forwarding performance of 26,100 Mpps.

The switch delivers the industry’s lowest inter-card forwarding latency of approximately 3.5 μs and adopts lossless Ethernet technology to enable data center storage networks to be built over Ethernet, thereby unifying technologies and O&M for computing and storage networks. Running on Huawei’s next-generation YunShan operating system, the CloudEngine 16800-X series provides stable, reliable, and high-performance Layer 2 and Layer 3 switching services.

The DC version (CE16800-X4-DC) is specifically designed for -48V/-60V DC power environments with a strict front-to-back airflow design and a 9.8 U chassis height. It supports flexible port configurations including 10GE/25GE/40GE/100GE/200GE/400GE with smooth evolution to 800GE.

Key features include M-LAG (Multichassis Link Aggregation Group) for device-level reliability and active-active load balancing, VXLAN routing and bridging with BGP-EVPN control plane, iLossless AI algorithms for zero packet loss, and comprehensive programmability through NETCONF, Open API, OPS, and Ansible automation.

Technical Specifications

Category	Parameter	Specification
General Information	Part Number	02355MYB
	Model	CE16800-X4-DC
	First Supported Version	V300R023C00
	Product Type	Data Center Core Switch / High-Performance Modular Switch
	Switching Architecture	Backplane-free Clos orthogonal architecture, cell switching, VoQ
	Form Factor	Modular
Switching Performance	Switching Capacity	179 Tbps / 387 Tbps
	Forwarding Performance	26,100 Mpps
	Inter-Card Forwarding Latency	~3.5 μs (industry lowest)
Slots	Service Slots	4
	Switching Fabric Module Slots	8 (scalable to 9 for future expansion)
	Redundant MPUs	1:1
	Redundant Switch Fabrics	N+M
Power Supply	Power Supply Mode	DC
	Number of Power Modules	6
	Rated Input Voltage	-48 V / -60 V
	Input Voltage Range	-40 V to -72 V
	Maximum Input Current	58.5 A (at -40 V)
	Maximum Output Power	5+1 backup: 11,000 W; 6+0 backup: 13,200 W
	Redundant Power Supply	N+1 backup recommended (dual-input or single-input system)
Cooling	Heat Dissipation Mode	Fan-based heat dissipation
	Airflow Direction	Strict front-to-back airflow
	Redundant Fans	Hot standby mode
Physical Specifications	Chassis Height	9.8 U
	Chassis Dimensions (H x W x D)	438 mm x 483 mm x 985 mm
	Weight (Fully Configured)	94.1 kg
Environmental Specifications	Long-Term Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	–40°C to +70°C
	Long-Term Operating Relative Humidity	5% RH to 85% RH, noncondensing
	Long-Term Operating Altitude	≤ 5000 m (16404 ft.)
	Altitude Derating	Above 1800 m, max operating temperature reduces by 1°C per 220 m increase
Reliability	Availability	0.9999971695
	MTBF	34.93 years
	MTTR	1 hour
Virtualization	M-LAG	Supported
	VXLAN	VXLAN routing and bridging, QinQ access VXLAN
	BGP-EVPN	Supported as VXLAN control plane
L2/L3 Features	Layer 2 Protocols	VLAN (access, trunk, hybrid), MAC address table, source MAC filtering, MAC learning limiting
	Layer 3 Protocols	IPv4: RIP, OSPF, IS-IS, BGP; IPv6: RIPng, OSPFv3, IS-ISv6, BGP4+
	IPv6 Features	IPv6 VXLAN over IPv4, IPv6 VXLAN over IPv6, IPv6 neighbor discovery (ND)
Data Center Features	1588v2	Supported
	RoCE V1/V2	Supported
	PFC / AI ECN	Supported
	RDMA	Supported
	Jumbo Frames	Supported
O&M	Telemetry	Supported
	NetStream	Supported
	iMaster NCE-FabricInsight	Supported for intelligent O&M
Programmability	NETCONF Interface	Standard northbound interface
	OpenFlow	Supported
	OPS (Open Programmability System)	Supported for control plane programmability
	Open API	Supported for cloud platform integration
	Ansible Automation	Supported
Management	ZTP (Zero Touch Provisioning)	Supported for automated deployment
	iMaster NCE-Fabric	Supported for SDN integration
Certifications	Safety Standards	Compliant
	EMC Standards	Compliant
	Environmental Standards	Compliant
