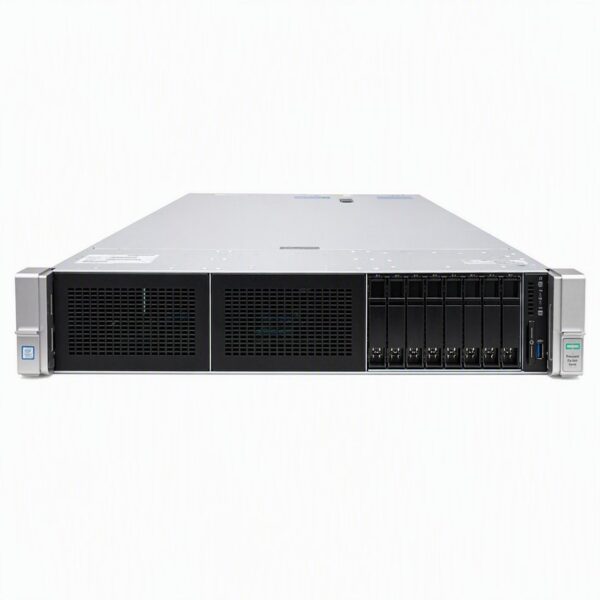

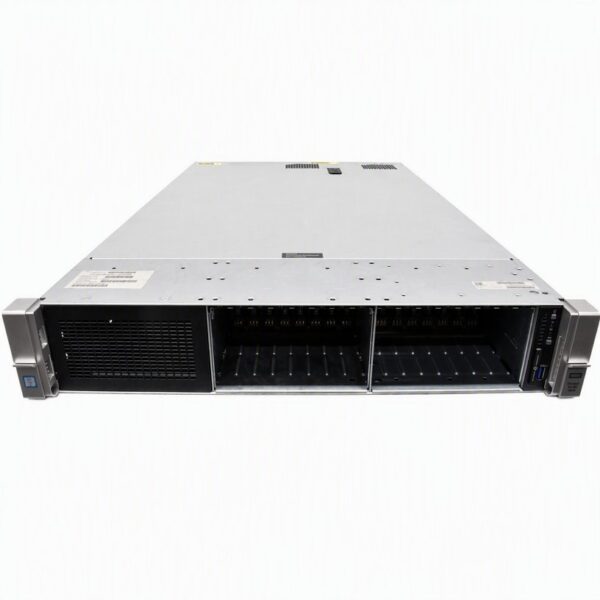

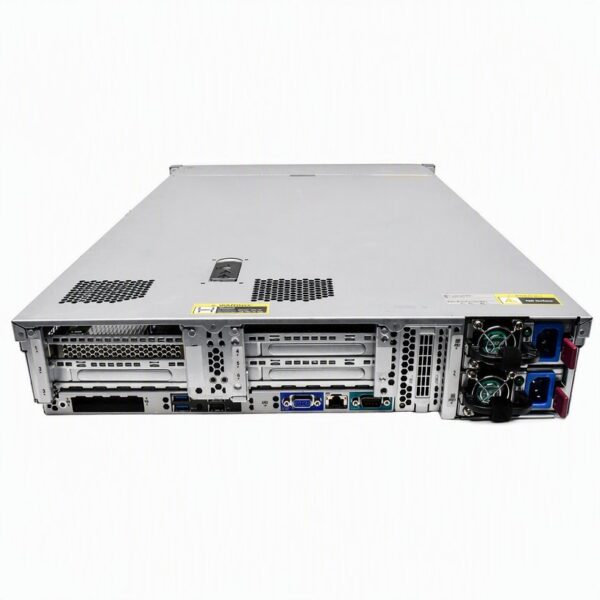

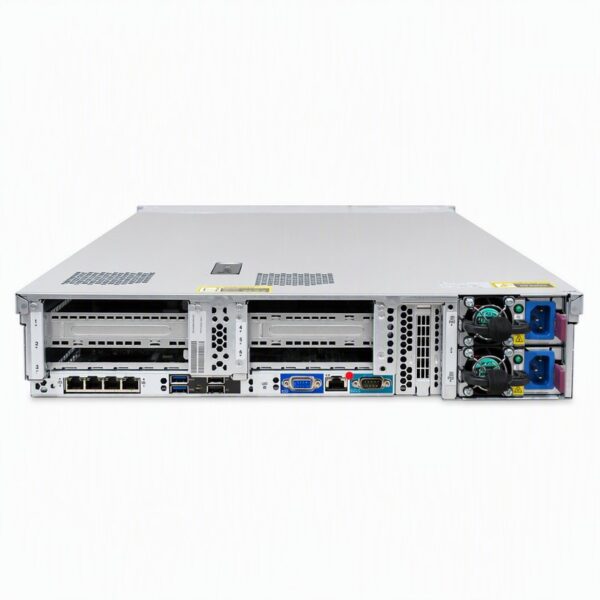

Name: HPE ProLiant DL560 Gen9 Server 2U Rack - SunSpike
SKU: DL560Gen9

The HPE ProLiant DL560 Gen9 Server is a high-density, four-socket (4S) 2U rack server designed for business-critical workloads, virtualization, server consolidation, database management, and data-intensive compute applications. It offers compute power and memory scalability in a dense 2U footprint.

Technical Specifications Overview

Category	Specification Details
Form Factor	2U Rack Form Factor
Processor Family	Intel® Xeon® E5-4600 v3 / E5-4600 v4 Product Family
Processor Sockets	2 or 4 Sockets
Core Options	Up to 22 Cores per processor (v4 series) / 18 Cores (v3 series)
Chipset	Intel® C610 Series Chipset
Memory Slots	48 DIMM slots total (12 DIMM slots per processor / 4 channels per CPU)
Memory Type	HPE SmartMemory DDR4 Registered (RDIMM) or Load-Reduced (LRDIMM)
Max Memory Capacity	Up to 6TB using 48 x 128GB LRDIMM @ 2400MHz
Drive Bays / Storage	Up to 24 SFF SAS/SATA HDD/SSD drive bays
Storage Controllers	Standard Embedded HPE Dynamic Smart Array B140i; Optional HPE Smart Array P440ar/2GB or P840/4GB SAS Controllers
Expansion Slots	Up to 7 PCIe 3.0 slots (requires primary, secondary, and tertiary risers)
Network Controller	Embedded FlexibleLOM slot supporting 4x1GbE, 2x10GbE, or 10GBase-T adapters
Remote Management	HPE iLO 4 (Integrated Lights-Out 4) with 4GB NAND and dedicated iLO port
Power Supplies	Up to 2 HPE Common Slot / Flex Slot Platinum/Platinum Plus (1200W, 1500W)
System Fans	Hot-plug redundant fans standard

Key Hardware Features

High-Density 4S Computing: Delivers up to 88 CPU cores across 4 processors in a 2U chassis, maximizing processing density per rack unit.
Flexible Storage Configurations: Drive bays can be configured with 8, 16, or 24 SFF drive cages, alongside an optional Universal Media Bay for optical drives or 2 additional SFF drives.
Advanced Memory RAS Features: Includes Advanced ECC, Online Spare Mode, Inter-Socket Memory Mirroring, and Demand/Patrol Scrubbing to prevent memory failure downtime.
Flexible Networking: Features HPE FlexibleLOM architecture allowing network upgrades (1GbE to 10GbE/40GbE) without occupying standard PCIe expansion slots.
