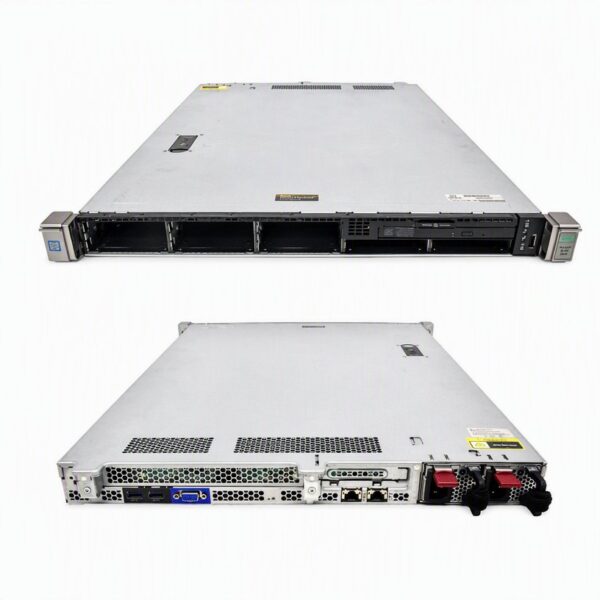

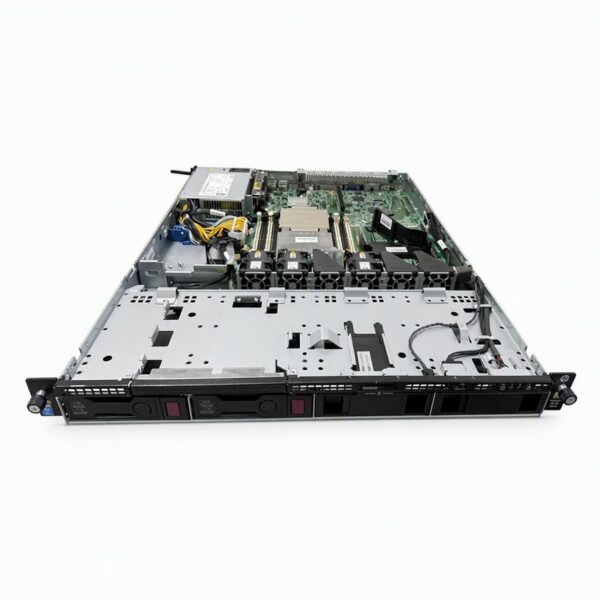

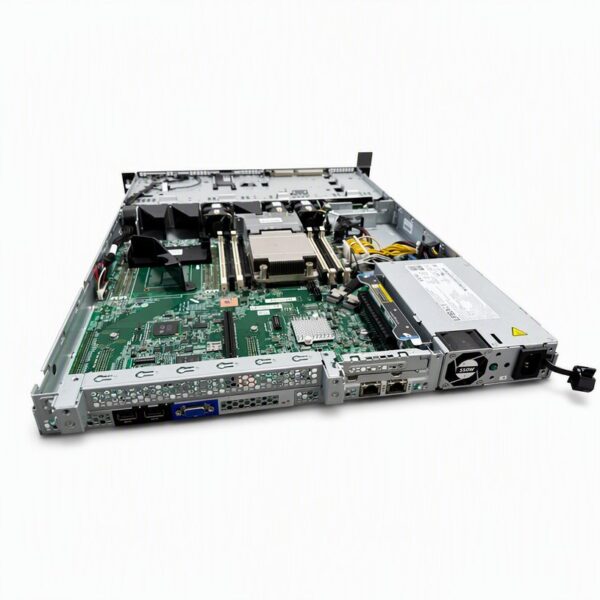

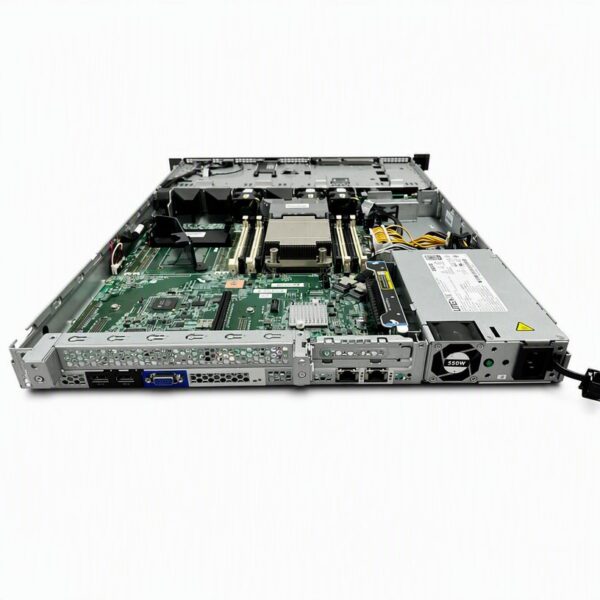

Name: HPE ProLiant DL120 Gen9 Server 1U Rack Form Factor - SunSpike
SKU: DL120Gen9

The HPE ProLiant DL120 Gen9 Server is an enterprise-class 1U, single-socket (1P) rack server engineered to deliver a balance of performance, expandability, and reliability. Powered by Intel® Xeon® E5-2600 v3 or v4 series processors, it provides a dense, cost-effective solution for virtualization, edge computing, web hosting, and core IT infrastructure workloads.

Technical Specifications

Feature	Specification Details
Form Factor	1U Rack Form Factor (Depth: 23.9 inches / 60.7 cm)
Processor Family	Intel® Xeon® E5-2600 v3 / v4 Series (Up to 14 Cores / Up to 105W TDP)
Processor Sockets	1 Socket (1P)
Chipset	Intel® C610 Series Chipset
Memory Slots	8 DIMM Slots (4 Channels, 2 DIMMs per Channel)
Max Memory Capacity	Up to 256 GB (8 x 32GB LRDIMM) @ 2400 MHz Up to 128 GB (8 x 16GB RDIMM) @ 2400 MHz
Memory Type	HPE DDR4 SmartMemory (RDIMM / LRDIMM)
Drive Bays	4 x LFF (3.5″) SAS/SATA/SSD (Hot Plug or Non-Hot Plug) 8 x SFF (2.5″) SAS/SATA/SSD (Hot Plug)
Maximum Internal Storage	Up to 40 TB (4 x 10TB LFF SATA/SAS) Up to 15.36 TB (8 x 1.92TB SFF SSD)
Storage Controllers	• Entry Model: HPE Dynamic Smart Array B140i (SATA RAID) • Base Model: HPE H240 FIO Smart Host Bus Adapter (HBA) • Performance Model: HPE Smart Array P440/4GB FBWC
Network Controller	HPE Embedded Dual-Port 361i 1Gb Ethernet Adapter
Expansion Slots	Up to 3 PCIe 3.0 Slots: • Slot 1: Low Profile (x8) • Slot 2: Full-Height / Half-Length (x16) • Slot 3: FlexibleLOM or Low Profile (x8)
Power Supply	HPE 550W FIO Power Supply / HPE 900W AC 240VDC Power Input Module
Management	HPE iLO 4 (Integrated Lights-Out 4), Intelligent Provisioning, HPE OneView
System Fans	3 x Non-Hot Plug Fans (Standard) / 5 x Fans (Redundant option)

Key Architectural Features

Compact Enterprise Density: Combines 1U space savings with enterprise-grade remote management and redundancy options.
Energy Efficiency: Supports high-efficiency HPE power supply options to lower operating costs (OpEx).
Flexible Storage Configurations: Accommodates LFF and SFF drives with support for software RAID, HBA mode, or full hardware Smart Array controllers with Flash-Backed Write Cache (FBWC).
Out-of-Band Management: HPE iLO 4 provides remote console access, power monitoring, health reporting, and agentless lifecycle management.

System I/O & Connectors

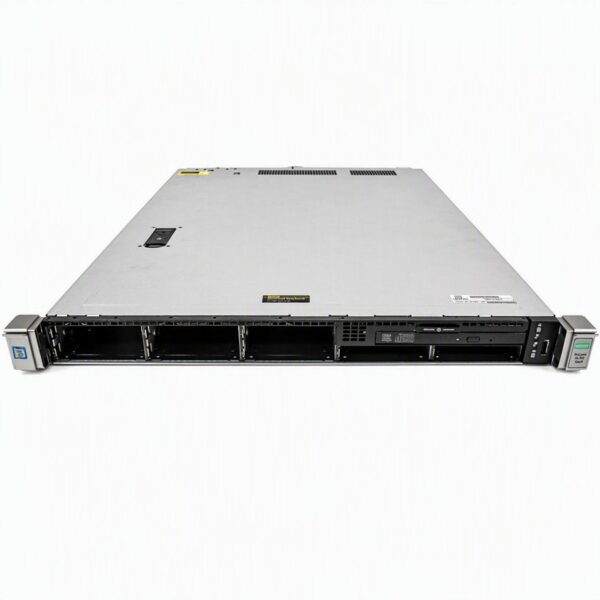

Front Panel: Power Button / LED, System Health LED, NIC Status LED, UID Button / LED, USB ports.

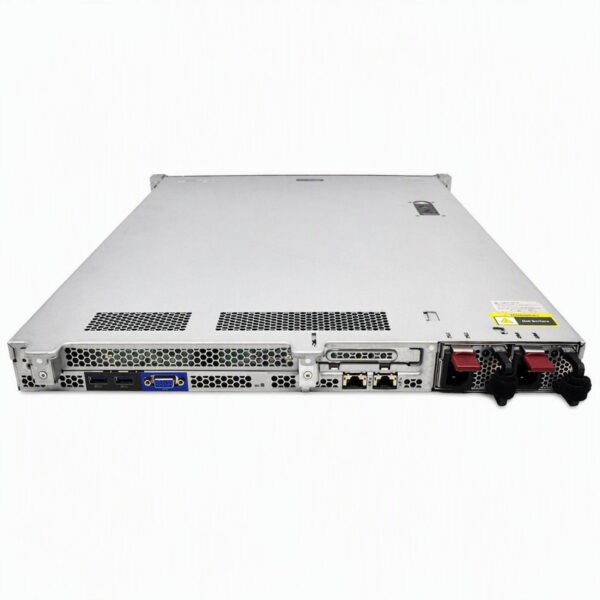

Rear Panel:
- 2 x RJ-45 1GbE Network Ports (Embedded 361i)
- 1 x Dedicated HPE iLO 4 Management Port
- 2 x USB 3.0 Ports
- 1 x VGA Monitor Port
- Up to 3 PCIe Expansion Slots
