HPE ProLiant DL320 Gen11 Data Sheet & Technical Overview

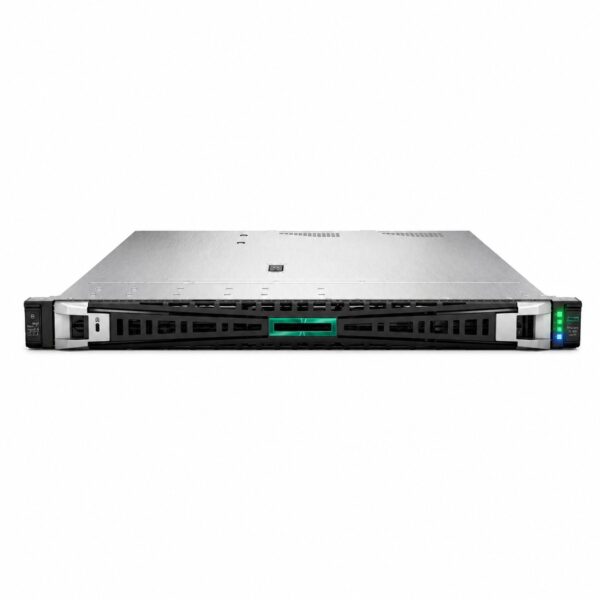

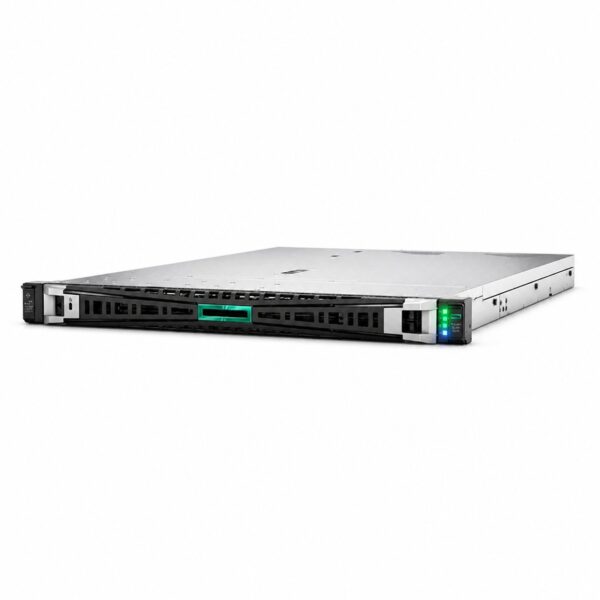

The HPE ProLiant DL320 Gen11 is a 1U, single-socket (1P) rack server with a compact, workload-driven modular design purpose-built for edge computing, virtualization, containerized workloads, and software-defined compute.
Product Specifications Summary
| Feature Category | Specification Details |
| Form Factor | 1U Rack Chassis |
| Processor Family | 4th and 5th Generation Intel® Xeon® Scalable Processors (Single Socket / 1P) |
| Processor Cores | 8 to 60 Cores per processor, TDP up to 270W |

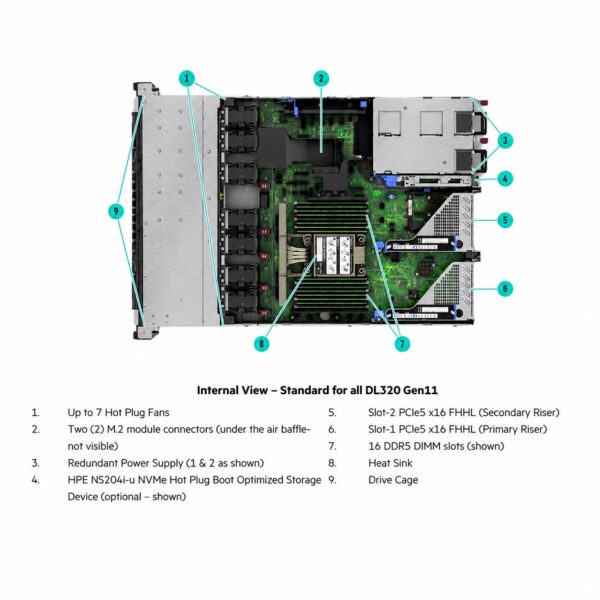

| Memory Slots & Type | 16 DDR5 DIMM slots, supporting up to 2.0 TB total capacity |
| Memory Speed | Up to 5200 MT/s or 5600 MT/s (depending on processor selection) |
| Memory Protection | Advanced ECC, Online Spare, Memory Mirroring, HPE Fast Fault Tolerant Memory |
| PCIe Expansion | Up to 2x PCIe Gen5 slots + 1x OCP 3.0 PCIe Gen5 slot |

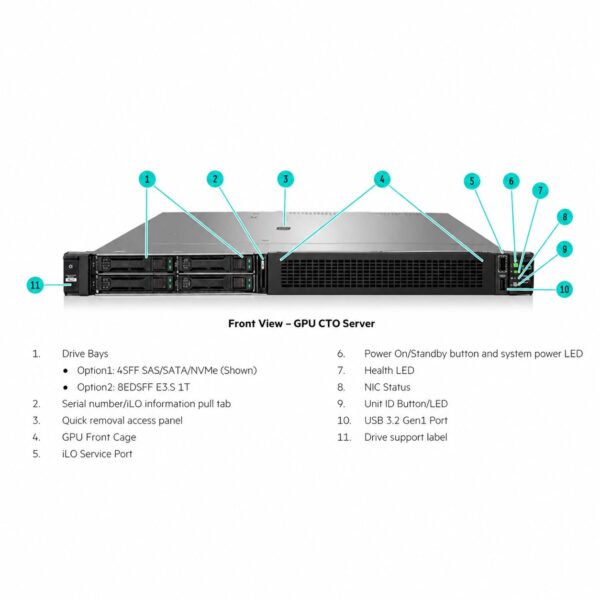

| Accelerator (GPU) Support | Up to 4 single-wide (SW) or 2 double-wide (DW) GPUs (GPU CTO Model) |
| Storage Controllers | Embedded SATA (AHCI / Intel SATA Hybrid RAID); Optional HPE Smart Array Gen11 Storage Controllers (RAID / NVMe / Tri-Mode) |
| Drive Bay Options |

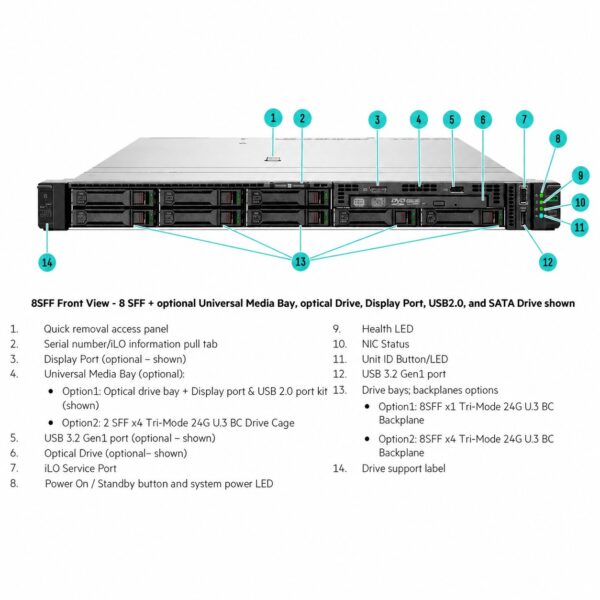

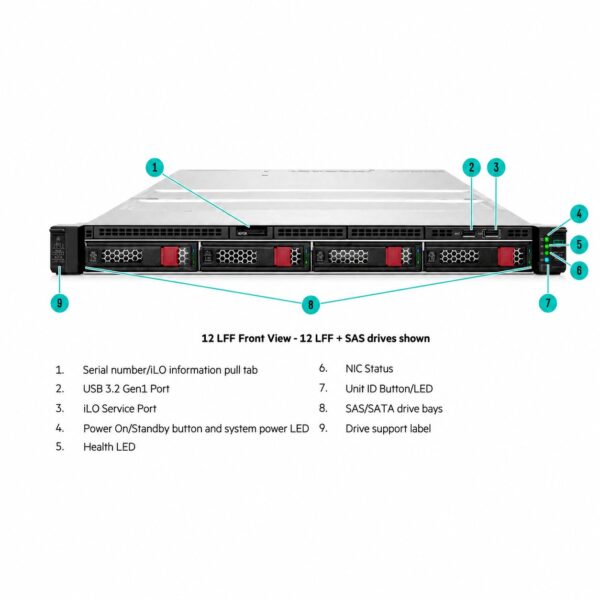

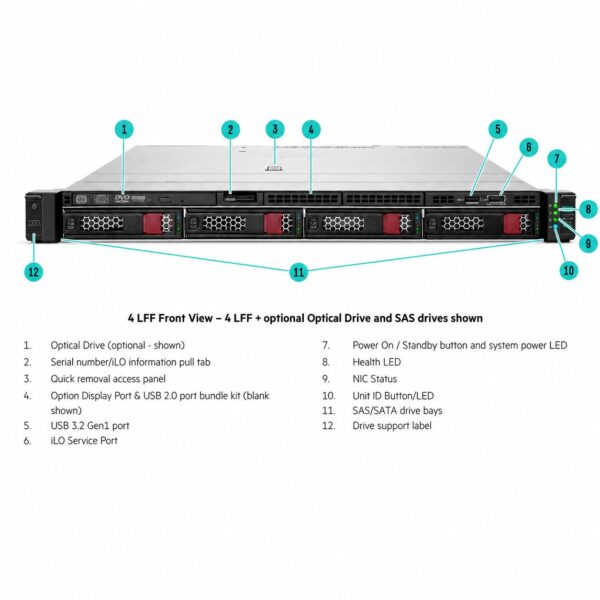

• 4 LFF SAS/SATA • 12 LFF SAS/SATA • 8+2 SFF SAS/SATA/NVMe (Tri-Mode) • 8 EDSFF x4 NVMe (GPU Dense) |
| Boot Storage | Internal Dual M.2 NVMe slots or optional HPE NS204i-u NVMe Hot-Plug Boot Device |
| System Management | HPE iLO 6 (Integrated Lights-Out), HPE Compute Ops Management, HPE OneView |
| Security Features | Silicon Root of Trust, TPM 2.0, Intel® Software Guard Extensions (SGX), UEFI Secure Boot |

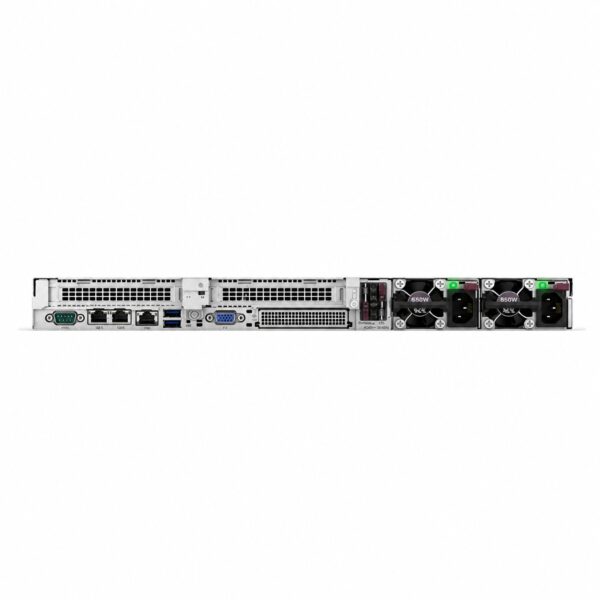

| Power Supplies | HPE Flex Slot Hot-Plug Power Supplies (500W, 800W, 1000W, 1600W, 1800W–2000W Titanium/Platinum) |
| System Cooling | Up to 7 hot-plug fans (Standard Fan Kit or High-Performance Fan Kit) |
Key Features & System Architecture
-
1P Economics with Enterprise Performance: Provides up to 60 cores and high-speed PCIe Gen5 bandwidth in a single-socket architecture, reducing licensing costs and power footprint.
-
High-Speed PCIe Gen5 I/O: Delivers double the I/O bus throughput of Gen4, enabling faster data transfer for network controllers and storage adapters.
-
Advanced Compute Ops Management: Built for hybrid environments, enabling automated lifecycle tasks, remote deployment, and cloud-based server monitoring through HPE Compute Ops Management / HPE GreenLake.
-
Silicon Root of Trust & iLO 6: Secures server firmware at the hardware level, preventing compromised code from booting and providing immutable security verification.
Common Workload Applications
-
Virtualization and Containerized Infrastructure (VDI, Virtual Compute)
-
Edge Computing & Remote / Branch Office (ROBO) Nodes
-
Software-Defined Storage & Compute (HCI)
-
Content Delivery Networks (CDN) and Video Streaming
-
AI / Machine Learning Edge Inference (utilizing PCIe GPU acceleration)
