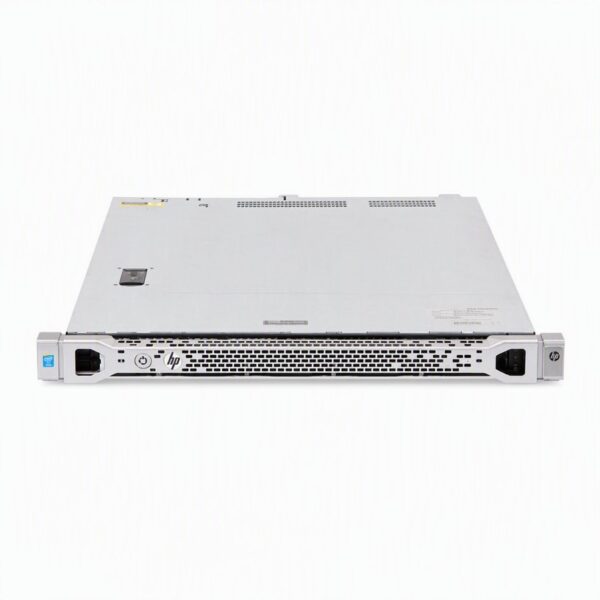

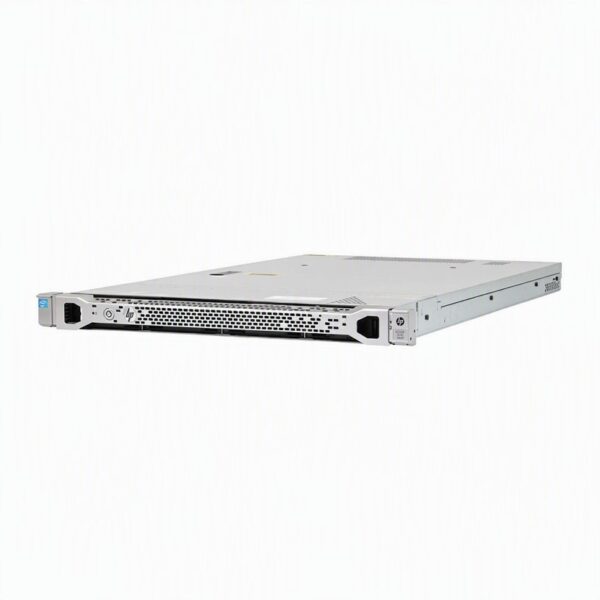

HPE ProLiant DL160 Gen8 Server 1U Rack Server
DL160 Gen8
Enterprise stock · tested · export documentation available
Product Overview
The HPE ProLiant DL160 Gen8 is a dual-socket, 1U rack-dense server optimized for high-performance computing (HPC), web hosting, and scale-out environments. It integrates HP iLO 4 management, flexible storage options, and enhanced energy efficiency.
Technical Specifications Summary
| Feature | Specification |
| Form Factor | 1U Rack Server |
| Processor Family | Up to 2 x Intel® Xeon® E5-2600 or E5-2600 v2 product family |
| Processor Sockets | 2 Sockets |
| Chipset | Intel® C600 Series Chipset |
| Memory Capacity | Up to 768 GB (24 x 32GB LRDIMM @ 1600MHz) |
| Memory Slots | 24 DIMM slots (12 slots per processor) |
| Memory Types | DDR3 Registered (RDIMM), Unbuffered (UDIMM), or Load-Reduced (LRDIMM) |
| Drive Bays | 4 x LFF (3.5″) Hot-Plug SAS/SATA/SSD OR 8 x SFF (2.5″) Hot-Plug SAS/SATA/SSD |
| Primary Storage Controller | HP Dynamic Smart Array B120i SATA Controller or HP Smart Array P420 |
| Expansion Slots | Up to 2 PCIe 3.0 slots (1 x16 Full-Length/Full-Height, 1 x8 Low Profile) |
| Network Controller | HP 361i Integrated Dual-Port 1GbE Adapter |
| Remote Management | Integrated Lights-Out 4 (HP iLO 4) |
| Power Supply | HP 460W / 750W Common Slot Platinum/Gold Hot-Plug Power Supplies |

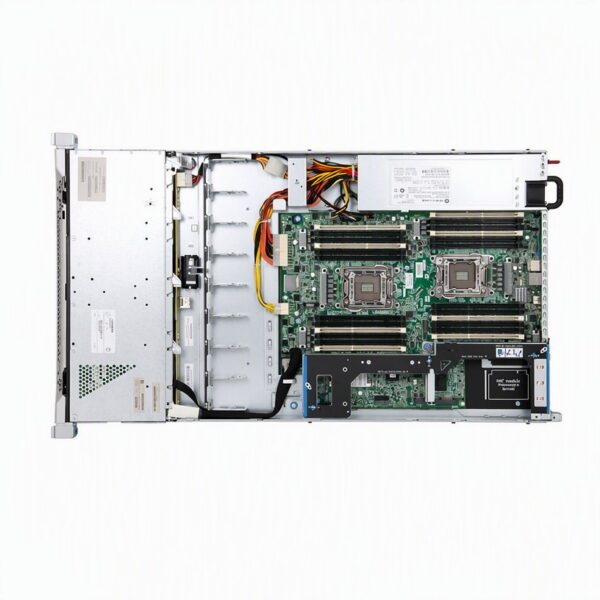

Key Hardware Architecture
Processor & Chipset
-
Supports Intel® Xeon® E5-2600 series with up to 8 cores per processor.
-
Supports Intel® Hyper-Threading, Turbo Boost Technology, and AVX (Advanced Vector Extensions).
Memory Subsystem
-
24 DIMM slots utilizing HP SmartMemory for reduced power consumption and higher performance throughput.
-
Advanced ECC, Memory Mirroring, and Memory Online Spare modes supported.
Storage & I/O Expansion
-
Front I/O: 2 x USB 2.0 ports
-

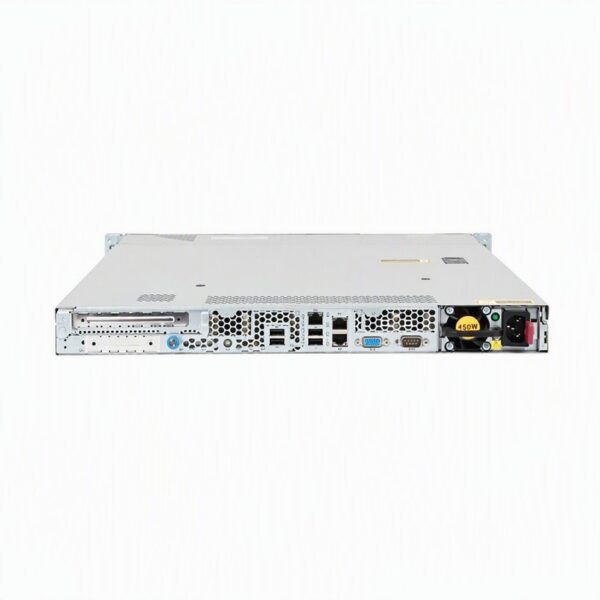

Rear I/O: 4 x USB 2.0, 1 x VGA, 1 x Dedicated iLO Remote Management Port, 2 x RJ-45 Gigabit Ethernet ports
-
Internal Storage: Maximum storage up to 16TB (4 x 4TB LFF SAS/SATA) or up to 9.6TB (8 x 1.2TB SFF).
System Management
-
HP iLO 4 (iLO Management Engine): Embedded remote management controller providing Agentless Management, Active Health System, and Intelligent Provisioning.
Operating System & Virtualization Support
-
Microsoft Windows Server 2008 / 2012 / 2012 R2 / 2016
-
Red Hat Enterprise Linux (RHEL)
-
SUSE Linux Enterprise Server (SLES)
-
VMware ESXi
-
Oracle Solaris
