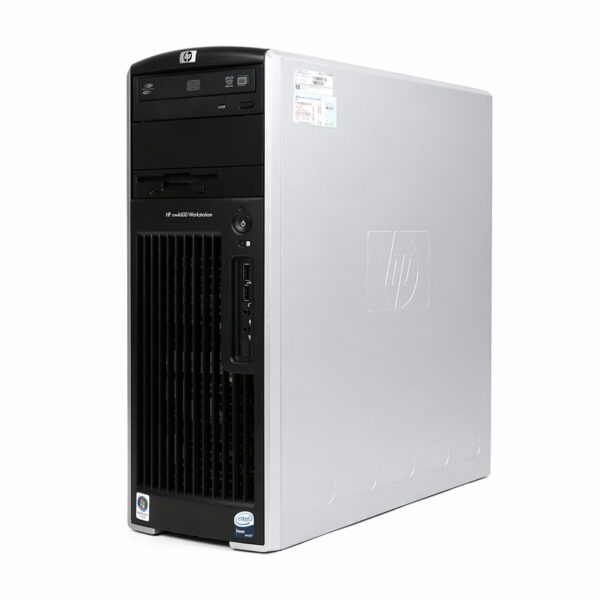

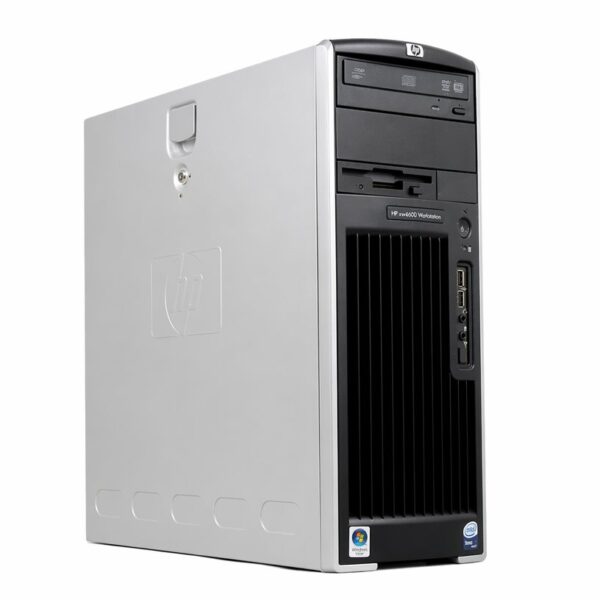

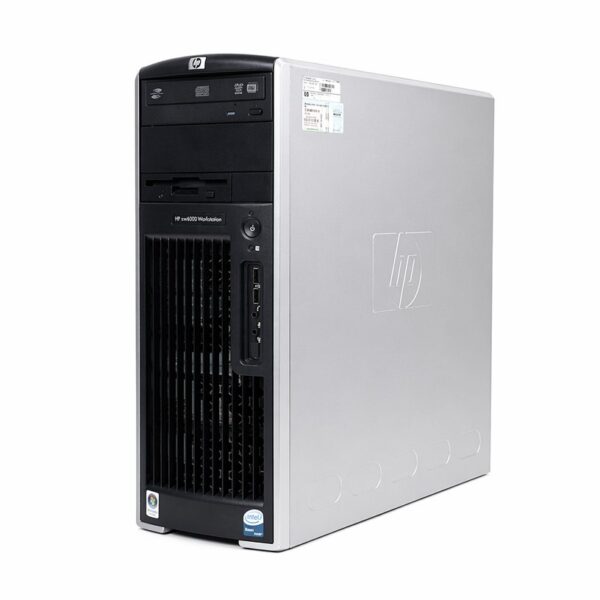

HP xw6600 Workstation Overview
The HP xw6600 Workstation is a dual-processor workstation designed to deliver quiet, high-performance computing in a compact minitower form factor. Engineered for demanding environments like 3D animation, CAD design, software development, and financial modeling, it features Intel Xeon processors, quad-channel FB-DIMM memory, and dual PCIe Gen2 x16 graphics support.
Technical Specifications
| Specification Category | Detailed Specifications |
| Form Factor | Convertible Minitower (Rack-mountable via optional kit) |
| Processor Sockets | Dual LGA 771 Sockets |
| Supported Processors | Dual/Quad-Core Intel Xeon 5200 / 5400 Series (up to 1600 MHz FSB, up to 12 MB L2 cache) |
| Chipset | Intel 5400 Chipset |
| System Memory |
Up to 32 GB DDR2 667 MHz or 800 MHz Fully Buffered DIMMs (FB-DIMM) • 8 DIMM Slots (4-channel architecture) |
| Graphics Capabilities |
Dual PCI Express x16 Gen2 slots (supports up to 4 displays) • Options: NVIDIA Quadro (FX 370 up to FX 4600 / FX 5600) or ATI FireGL |
| Storage Bays |
• Internal: Two 3.5″ drive bays (supports up to 4 HDDs using optical bay space) • External: Two 5.25″ optical drive bays + one 3.5″ floppy drive bay |
| Hard Drive Support |
Up to 4.0 TB internal storage: • SATA 3.0 Gb/s (7200 RPM / 10K RPM NCQ) • SAS 3.0 Gb/s (10K RPM / 15K RPM) via optional controller |
| Integrated RAID Controller | Integrated SATA 3.0 Gb/s controller with RAID 0, 1, 5, and 10 support |
| Expansion Slots |
• 2 PCI Express x16 Gen2 (Graphics) • 2 PCI Express x8 (x4 mechanical / x8 slot) • 2 Legacy PCI (32-bit / 33 MHz) |
| Network Interface | Integrated Broadcom 5755 NetXtreme Gigabit PCIe LAN |
| Audio | Integrated High Definition Audio with Jack Sensing (Realtek ALC262) |
| Power Supply | 650 Watts wide-ranging, active Power Factor Correction (PFC), 80 PLUS Certified |
Front & Rear I/O Connectivity
Front I/O Ports
-
2 x USB 2.0
-
1 x Headphone Out
-
1 x Microphone In
-
1 x IEEE 1394a FireWire (optional)

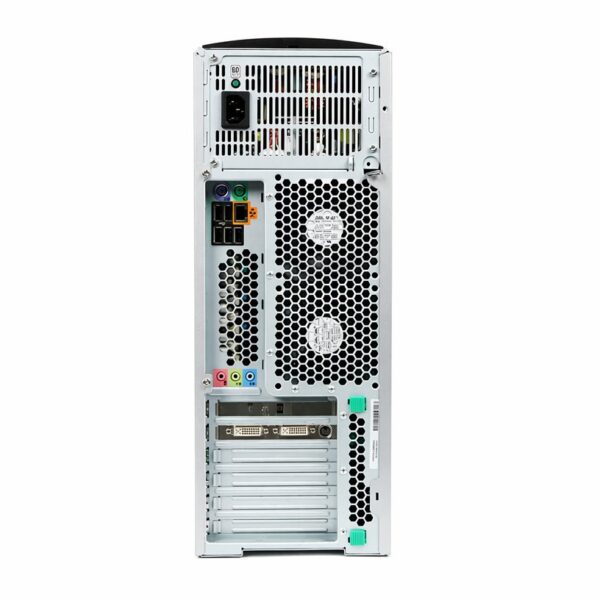

Rear I/O Ports
-
6 x USB 2.0
-
1 x RJ-45 Gigabit Ethernet
-
2 x PS/2 (Keyboard & Mouse)
-
1 x Serial Port (16550 compatible)
-
3 x Audio Jacks (Line-In, Line-Out, Microphone)
Dimensions & Weight
Physical Dimensions:
• Height: 17.3 in (44.1 cm)
• Width: 6.5 in (16.5 cm)
• Depth: 17.3 in (44.0 cm)
Weight:
• Standard configuration: ~30 lbs (13.6 kg)
• Maximum configuration: ~42 lbs (19.1 kg)
