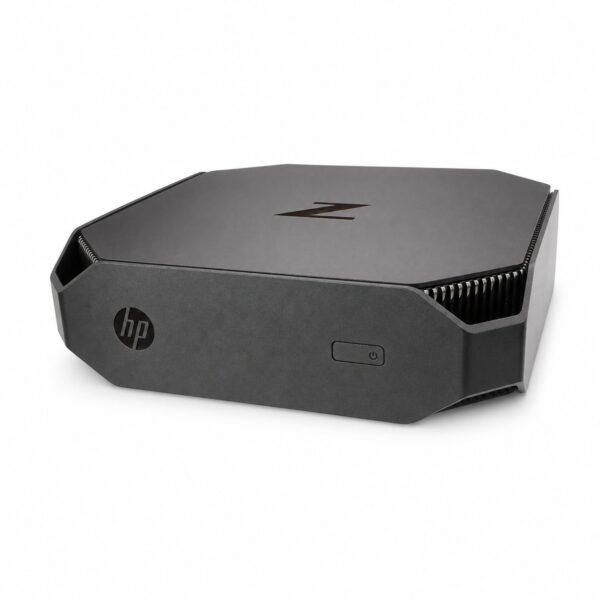

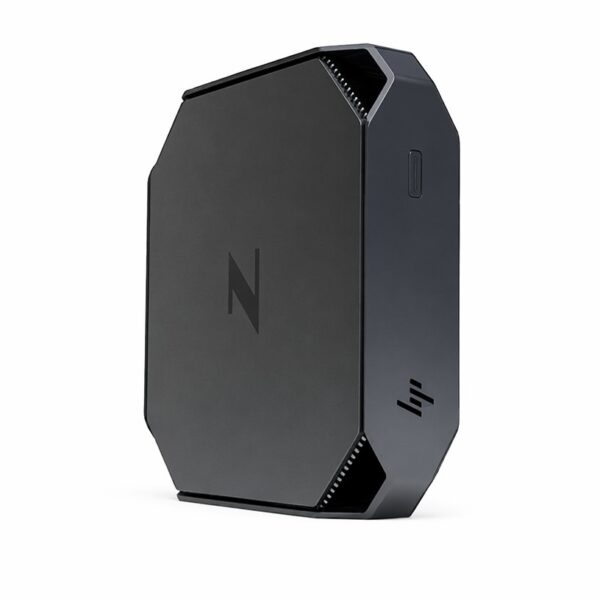

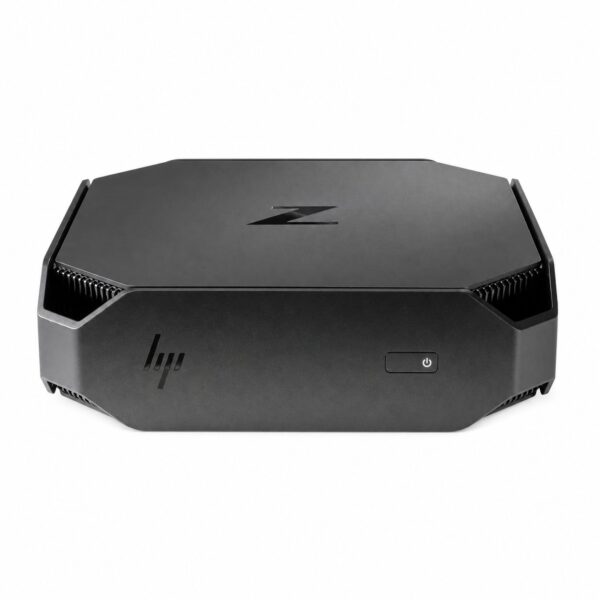

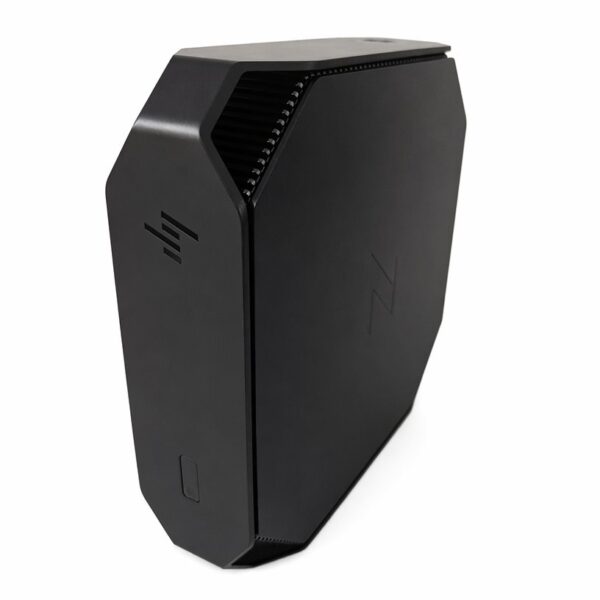

HP Z2 Mini G4 Workstation

HP Z2 Mini G4 Workstation Overview

Key Highlights

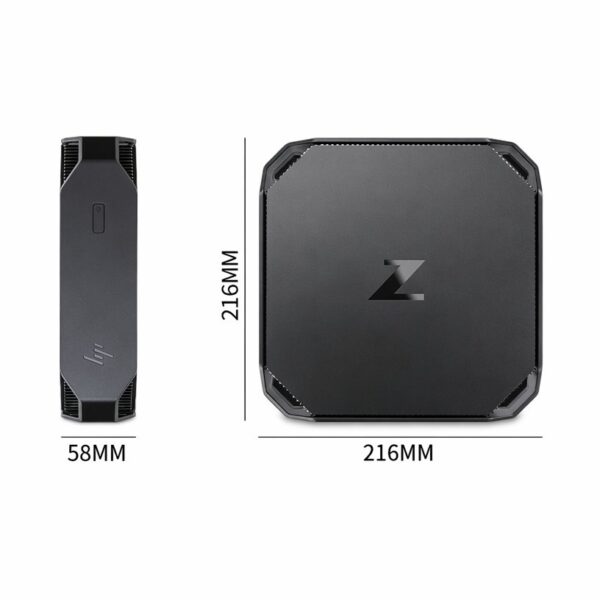

• Form Factor: Ultra-compact Mini Workstation ($216 \times 216 \times 58 \text{ mm}$ / $8.5 \times 8.5 \times 2.28 \text{ in}$)

• Weight: Starting at $2.04 \text{ kg}$ ($4.5 \text{ lbs}$)

• Target Workloads: 2D/3D CAD, Architecture, Engineering, Financial Analysis, Multi-Display Setups.

Technical Specifications

1. Processor & Chipset

• Chipset: Intel® C246 Chipset

• Processors Supported:

  • Intel® Xeon® E Series: E-2100 & E-2200 series (up to 8 cores, e.g., E-2278G, E-2176G)

  • Intel® Core™ i-Series: 8th & 9th Gen Core i3 / i5 / i7 / i9 (up to i9-9900K)

  • Intel® Pentium® Gold Series

2. Memory

• Architecture: Dual-channel DDR4

• Slots: 2 SODIMM slots

• Speeds: Up to 2666 MHz

• Capacity: Up to 64 GB ECC or Non-ECC DDR4 memory

3. Graphics Options

• Integrated Graphics:

  • Intel® UHD Graphics 630 / P630

• Discrete Professional Graphics (Entry vs. Performance Base):

  • NVIDIA® Quadro® P600 (4 GB GDDR5)

  • NVIDIA® Quadro® P1000 (4 GB GDDR5)

  • AMD Radeon™ Pro WX 4150 (4 GB GDDR5)

4. Storage & Drive Bays

• M.2 NVMe SSD: 1x M.2 PCIe Gen3 x4 80mm slot (Supports HP Z Turbo Drive, up to 2 TB)

• 2.5-inch Drive Bay: 1x internal 2.5-inch SATA HDD/SSD (up to 2 TB 5400/7200 RPM or SATA SSD)

• Optane: Optional Intel® Optane™ Memory support

5. Ports & Expansion

Location	Port Configuration
Side I/O	1x Headphone/Microphone Combo, 2x USB 3.0 (1 Charging), 1x USB 3.1 Gen 2 Type-C™
Rear I/O (Entry)	2x USB 3.0, 1x RJ-45 (GbE LAN), 2x or 3x DisplayPort™ 1.2, 1x Flex IO Module Slot
Rear I/O (Performance)	2x USB 3.0, 1x RJ-45, 2x USB 3.1 Gen 2 Type-C™, 2x or 3x DisplayPort™ 1.2, 1x Flex IO Module Slot
Flex I/O Options	VGA, HDMI, DisplayPort™, 2nd RJ-45, or Thunderbolt™ 3.0 / USB-C

6. Networking & Audio

• LAN: Integrated Intel® I219-LM PCIe® GbE

• WLAN/BT: Intel® Dual Band Wireless-AC 9560 802.11a/b/g/n/ac (2×2) Wi-Fi® + Bluetooth® 5 Combo (via M.2 2230 slot)

• Audio: Conexant CX20632-31Z with 1.5W internal mono speaker

7. Power Supply

• External Power Adapter (depending on CPU/GPU configuration):

  • 135W Power Adapter

  • 200W Power Adapter

  • 230W Power Adapter
