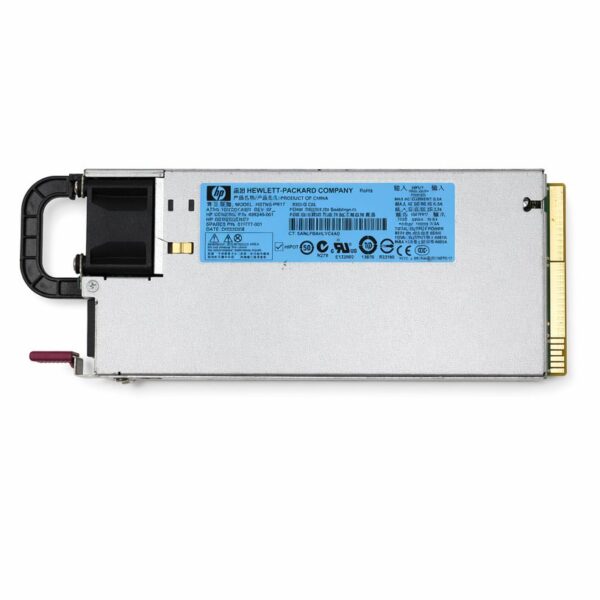

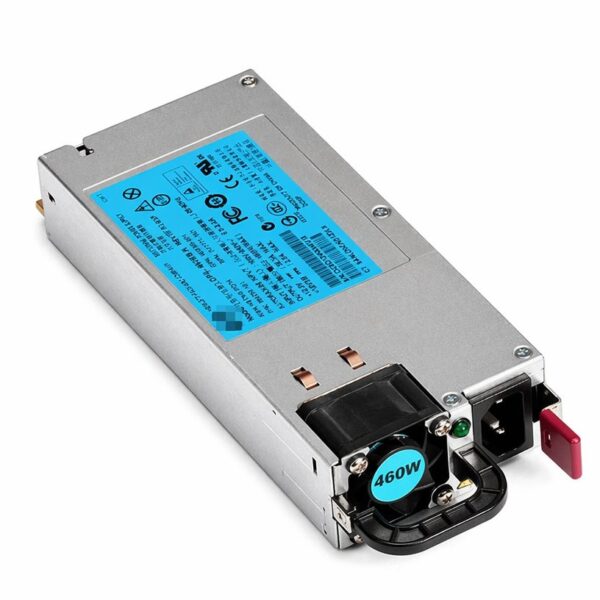

HP 499249-001 460W PSU for HP DL360 DL380 G6 G7 G8 Server

Here is the detailed English technical data sheet and overview for the HP ProLiant 460W Common Slot power supply module.

HP 499249-001 Overview

The HP 499249-001 is a 460-Watt hot-swappable AC power supply unit designed for HPE ProLiant Gen6, Gen7, and Gen8 enterprise servers.

It belongs to the HP Common Slot (CS) power supply architecture. This unique, tool-less design uses a standardized physical interface layout, allowing the same power supply unit to fit into various server chassis types. This helps streamline infrastructure inventory requirements.

This model features Gold Level Efficiency (92% efficient at typical loads), which significantly reduces data center electricity costs and waste heat output compared to older server power architectures.

Technical Specifications

Parameter	Specification
HP Option Part Number (O/PN)	503296-B21
HP Spare Part Number (S/PN)	499249-001
HP GPN (Generic Part Number)	499250-001
Manufacturer Model Codes	DPS-460EB A, HSTNS-PD14, HSTNS-PL14 (Varies by supplier batch)
Maximum Output Power	460 Watts
Input Voltage Range	100 V AC to 240 V AC (Auto-ranging)
Efficiency Certification	80 PLUS Gold (Up to 92% efficiency)
Form Factor	HP Common Slot (Standard Platinum/Gold Chassis)
Hot-Swappable	Yes (Supports N+1 hot-plug redundancy arrays)

Electrical Output Configuration

The unit distributes its total 460W maximum load across two primary direct current (DC) rails:

• Main +12V Rail: Supplies up to 38.3 A maximum continuous current to power server processor sockets, high-density memory arrays, and PCIe motherboard risers.

• Standby +12Vsb Rail: Supplies up to 2.5 A maximum continuous current to keep Lights-Out management infrastructure (HPE iLO) operational when the host system is powered off.

Comprehensive System Compatibility Matrix

This 460W Common Slot module is compatible across the following server families:

HPE ProLiant Gen6 / Gen7 Servers

• DL (Rackmount): DL160 G6, DL180 G6, DL320 G6, DL360 G6/G7, DL370 G6, DL380 G6/G7, DL385 G6/G7

• ML (Tower): ML150 G6, ML330 G6, ML350 G6, ML370 G6

HPE ProLiant Gen8 Servers

• DL (Rackmount): DL360e Gen8, DL360p Gen8, DL380e Gen8, DL380p Gen8, DL385p Gen8

• ML (Tower): ML350e Gen8, ML350p Gen8
