Supermicro Ultra SuperServer SYS-220U-TNR
SYS-220U-TNR
Enterprise stock · tested · export documentation available
Supermicro Ultra SuperServer SYS-220U-TNR
Overview & Key Applications

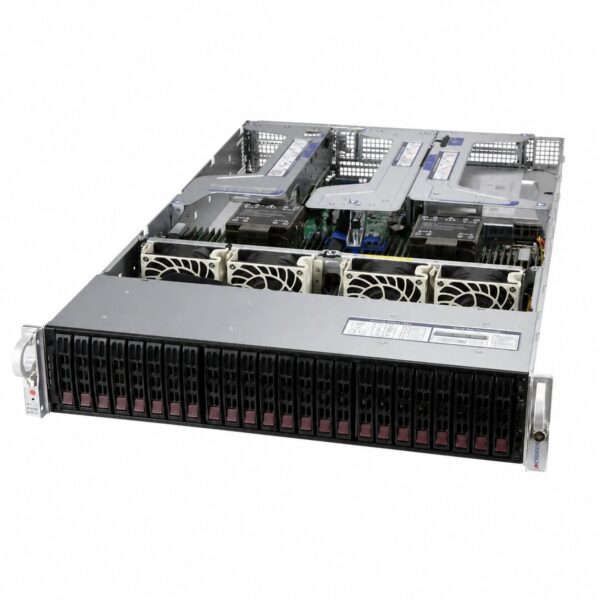

The SYS-220U-TNR is a 2U dual-socket enterprise rackmount server designed for scalable computing, high-density storage, and enterprise virtualization.
-
Virtualization & Cloud Infrastructure
-
High-Performance Computing (HPC)
-
Software-Defined Storage (SDS) & Big Data Analytics
-
AI Inferencing & Machine Learning
-
5G Core & Telecom Application Tier Services
Technical Specifications
| Category | Specification Details |
| Motherboard & Chassis |

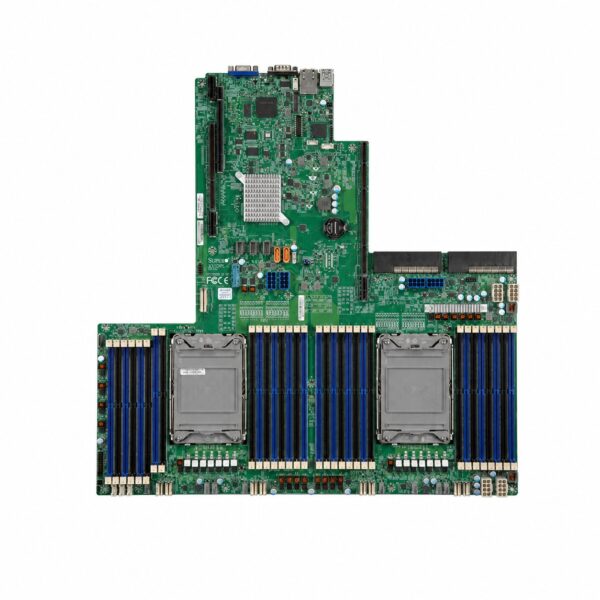

• Motherboard: Super X12DPU-6 • Chassis: CSE-219U3TS-R1K62P-T • Form Factor: 2U Rackmount |
| Processor Support |
• Socket: Dual Socket P+ (LGA-4189) • CPU: 3rd Gen Intel® Xeon® Scalable Processors • Max TDP: Supports CPU TDP up to 270W (3 UPI links) |
| System Memory |

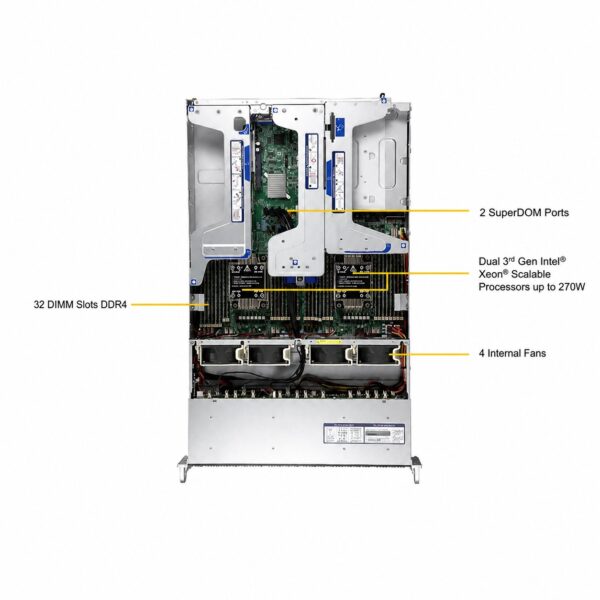

• Slots: 32x DIMM slots • Max DRAM: Up to 8TB ECC DDR4-3200MHz RDIMM/LRDIMM • Persistent Memory: Supports Intel® Optane™ Persistent Memory 200 Series (up to 12TB with DRAM) |
| Drive Bays |

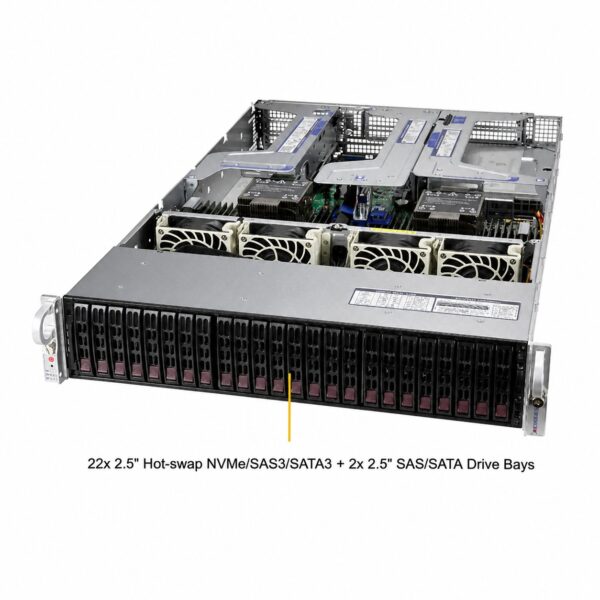

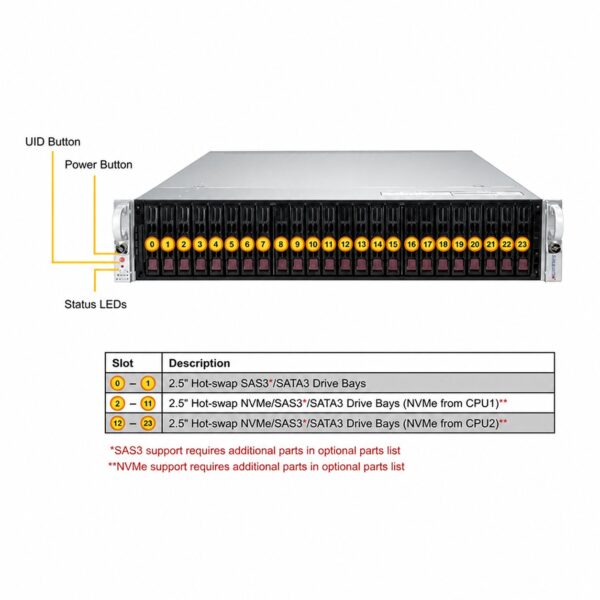

• Capacity: 24x 2.5″ Hot-Swap drive bays • Bay Configuration: 22x NVMe/SAS/SATA hybrid bays + 2x SAS/SATA bays • Storage Controllers: Onboard SATA/NVMe (RAID 0, 1, 5, 10 via Intel® C621A PCH); SAS/SATA RAID via optional Add-On Card (AOC) |
| Expansion Slots |

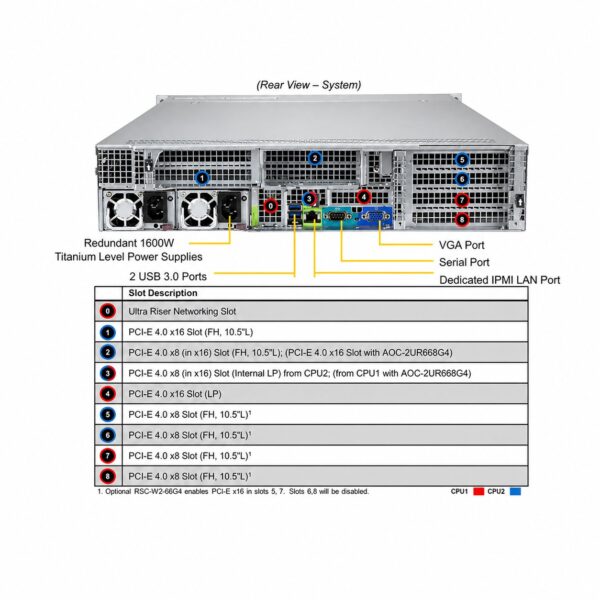

• 1x PCIe 4.0 x16 (Full-Height, 10.5″ L) • 5x PCIe 4.0 x8 (Full-Height, 10.5″ L) • 1x PCIe 4.0 x16 (Low-Profile) • 1x Internal PCIe 4.0 x8 (Low-Profile) (Note: Optional RSC-W2-66G4 riser enables PCIe x16 in slots 5 & 7) |
| GPU Acceleration |
• Capacity: Up to 4x Double-Width or 6x Single-Width GPUs • Supported GPUs: NVIDIA PCIe A100, A40, A30, A16, A10, T4, RTX A6000, RTX A5000, A2 |
| Networking & I/O |
• Network Interface Options: Dual 10GbE BaseT (Intel® X710-AT2), Dual 10GbE BaseT + Dual 10GbE SFP+ (Intel® X710-TM4), or No NIC option • Management Port: 1x Dedicated RJ45 BMC LAN • Rear I/O: 2x USB 3.0, 1x VGA, 1x COM Serial Port, 2x SuperDOM ports |
| Cooling System | 4x 8cm heavy-duty PWM fans with optimal speed control |
| Power Supply | 1600W Redundant Titanium Level (96%+ efficiency) Hot-Plug Power Supplies |
| Management & Security | Redfish API, IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN, Supermicro Out-of-Band (OOB) License, SUM, SSM, SPM, Intel® Node Manager |
| Dimensions & Weight |
• Dimensions (W x H x D): 17.2″ x 3.5″ x 28.2″ (437 x 89 x 717.2 mm) • Net Weight: 37 lbs (16.8 kg) • Gross Weight: 63 lbs (28.6 kg) |
| Operating Environment |
• Operating Temp: 10°C to 35°C (50°F to 95°F) • Non-Operating Temp: -40°C to 60°C (-40°F to 140°F) • Operating Humidity: 8% to 90% (non-condensing) |
