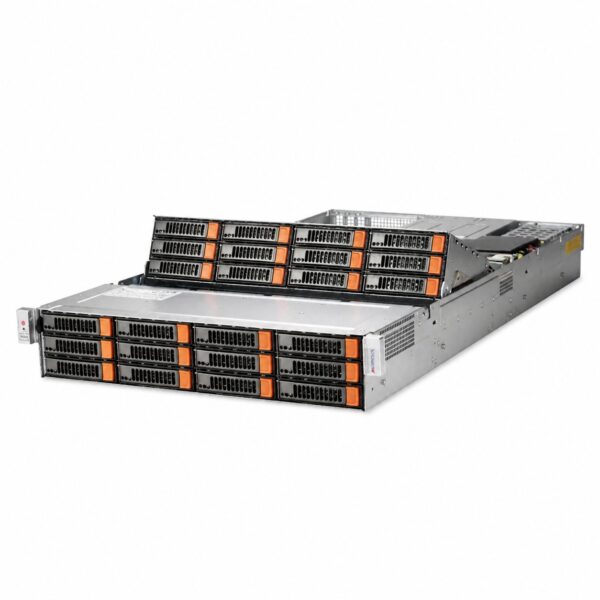

Supermicro SuperStorage SSG-6029P-E1CR24L / SYS-6029P-E1CR24L

Supermicro SuperStorage SSG-6029P-E1CR24L / SYS-6029P-E1CR24L

Key Features & Highlights

• Target Applications: Enterprise Storage, Database Processing, High-Performance Computing (HPC), Data Center, iSCSI SAN.

• Processor Support: Dual Socket P (LGA 3647) supporting 1st & 2nd Gen Intel® Xeon® Scalable Processors.

• High-Density Storage: 24x 3.5″ Hot-swap SAS3/SATA3 drive bays (front) + 2x 2.5″ Hot-swap SATA3 drive bays (rear).

• Integrated Storage Controller: Broadcom 3008 SAS3 12Gbps controller operating in IT Mode.

• Power Efficiency: 1600W Redundant Power Supplies, Titanium Level (96% Efficiency).

Detailed Technical Specifications

System & Motherboard

• Model / SKU: SSG-6029P-E1CR24L / SYS-6029P-E1CR24L

• Motherboard: Super X11DSC+

• Form Factor: 2U Rackmount (Chassis: CSE-826STS-R1K62P1)

Processor / CPU

• CPU Socket: Dual Socket P (LGA 3647)

• Processor Architecture: 2nd Gen Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors

• UPI Speed: 3 Ultra Path Interconnect (UPI) links up to 10.4 GT/s

• Core Count: Up to 28 Cores per CPU

• Thermal Design Power (TDP): Supports CPU TDP 70W – 165W

System Memory

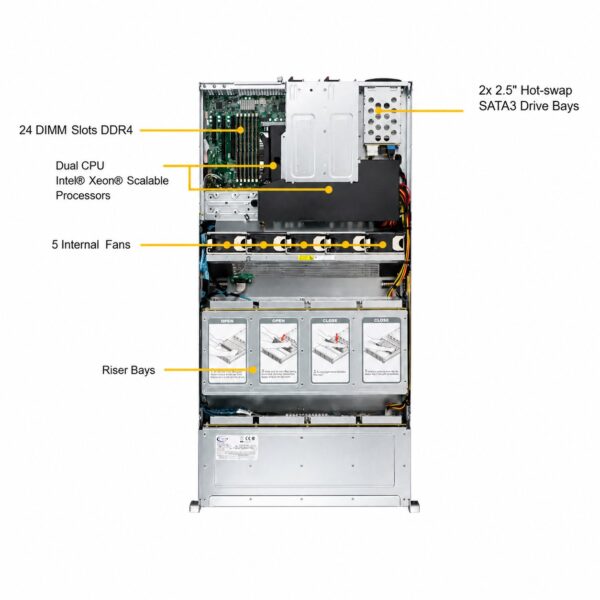

• Memory Capacity: 24x DIMM slots

  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM / LRDIMM

  • Supports Intel® Optane™ Persistent Memory (DCPMM)

• Memory Speeds: 2933 / 2666 / 2400 / 2133 MHz ECC DDR4 SDRAM

Drive Bays & Backplane

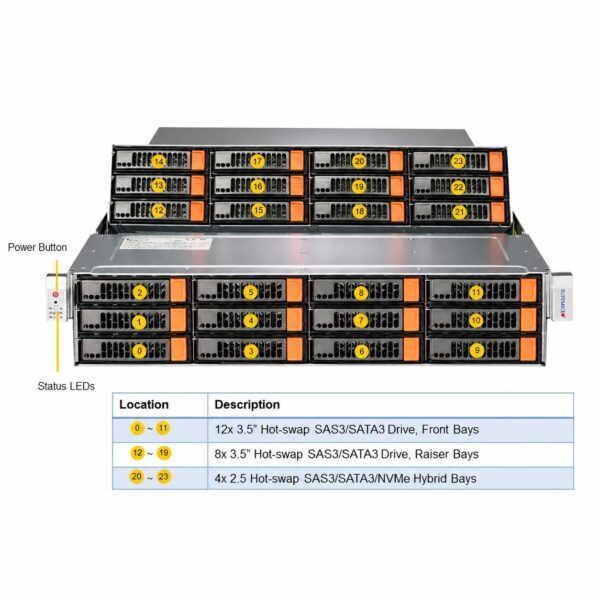

• Front Drive Bays: 24x Hot-swap 3.5″ SAS3/SATA3 drive bays

• Rear Drive Bays: 2x Hot-swap 2.5″ SATA3 drive bays

• Storage Backplane: SAS3 12Gb/s direct-attached storage backplane

• SAS Controller: Broadcom 3008 SAS3 (12Gbps), IT Mode

• SATA Support: SATA3 (6Gbps) via Intel® C621 chipset; RAID 0, 1, 5, 10

Expansion Slots & Networking

• PCIe Slots:

  • 2x PCI-Express 3.0 x16 slots

  • 1x PCI-Express 3.0 x8 slot

• Flexible Networking: 1x SIOM (Supermicro I/O Module) slot (requires networking card bundle)

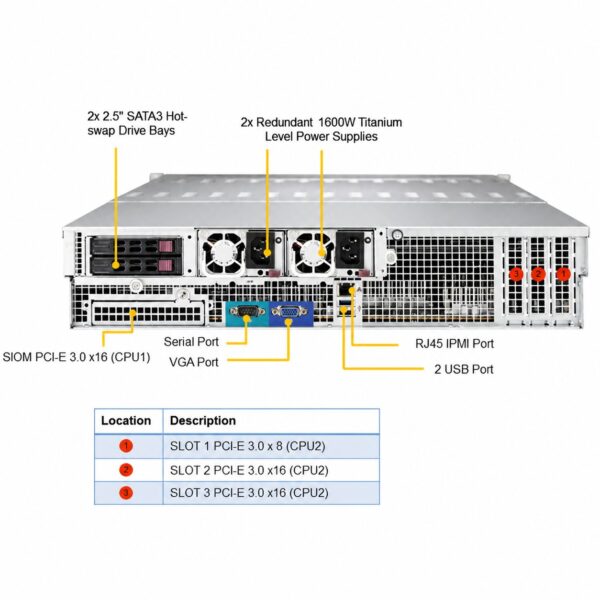

Input / Output (I/O) Ports

• LAN: 1x RJ45 Dedicated IPMI LAN port

• USB: 2x USB 3.0 ports (rear), 1x USB Type-A internal

• Video: 1x VGA D-Sub connector port (powered by ASPEED AST2500 BMC)

• Serial: 1x Fast UART 16550 Serial Port / 1x Header

Power Supply & System Cooling

• Power Supply Unit: 2x 1600W Redundant Power Supplies with PMBus

  • Certification: 80 PLUS Titanium Level (96% Efficiency)

  • AC Input: 100–127V / 200–240V, 50–60Hz

• System Cooling: 5x 8cm high-performance PWM middle cooling fans

System Management & Security

• Remote Management: IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN support

• BMC Chipset: ASPEED AST2500

• Management Software: Intel® Node Manager, IPMI 2.0, NMI, SSM, SPM, SUM, SuperDoctor® 5, Watchdog

Physical & Environmental Specifications

• Dimensions (W × H × D): 17.2″ (437 mm) × 3.5″ (89 mm) × 34″ (863 mm)

• Gross Weight: ~44 lbs (19.96 kg) barebone weight

• Operating Temperature: 10°C to 35°C (50°F to 95°F)

• Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F)
