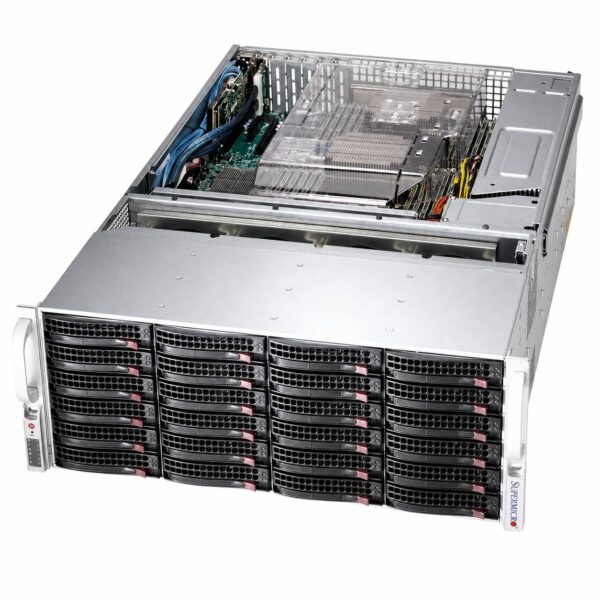

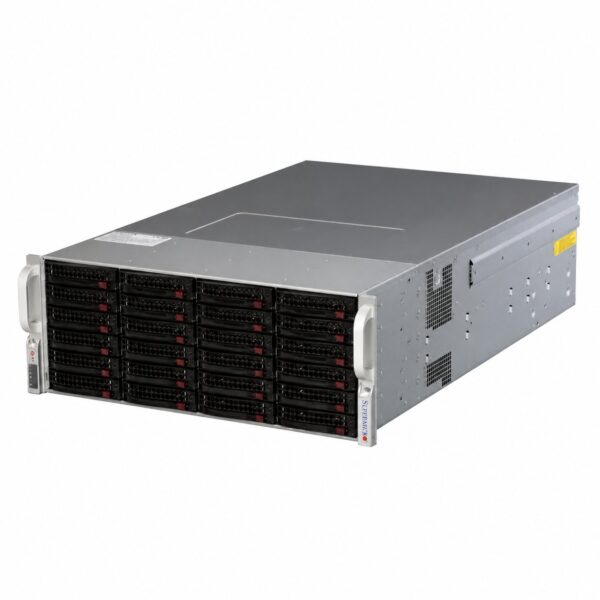

Supermicro SuperStorage Server 6047R-E1R36L
SYS-6047R-E1R36L
Enterprise stock · tested · export documentation available
Supermicro SuperStorage Server 6047R-E1R36L Specification
Key Features
-

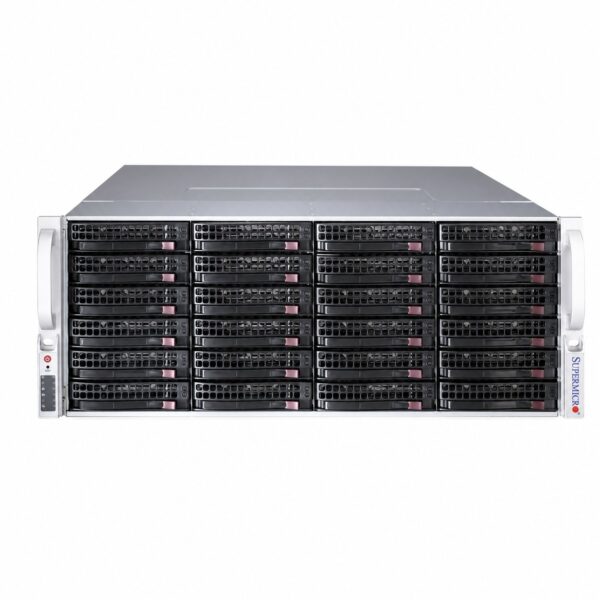

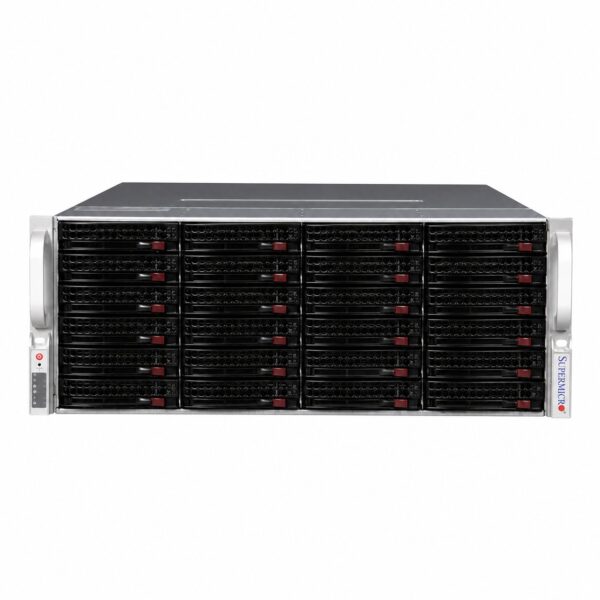

High-Density Storage: 36x 3.5″ Hot-swap SAS2/SATA3 drive bays (24 front + 12 rear).
-
Dual Socket Performance: Supports dual Intel® Xeon® E5-2600 and E5-2600 v2 series processors.
-
Massive Memory Support: 16 DIMM slots supporting up to 1TB DDR3 LRDIMM or 512GB ECC RDIMM.
-
Onboard LSI 2308 IT Mode: Direct SAS2/SATA3 connectivity via LSI 2308 controller in IT Pass-Through mode.
-
High Efficiency & Redundancy: 1280W redundant 80 PLUS Platinum Level power supplies and 7x hot-swap PWM fans.
Hardware Specifications
| Component / Feature | Specification Details |
| Model SKU | SSG-6047R-E1R36L |
| Form Factor | 4U Rackmount (Chassis: SC847BE16-R1280LPB) |

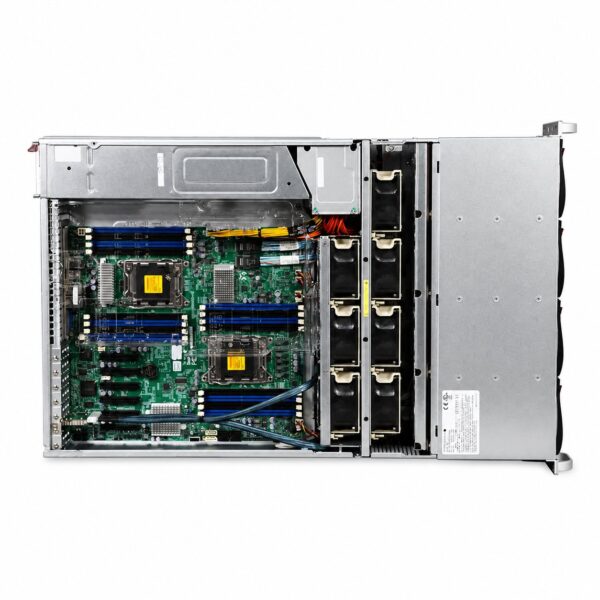

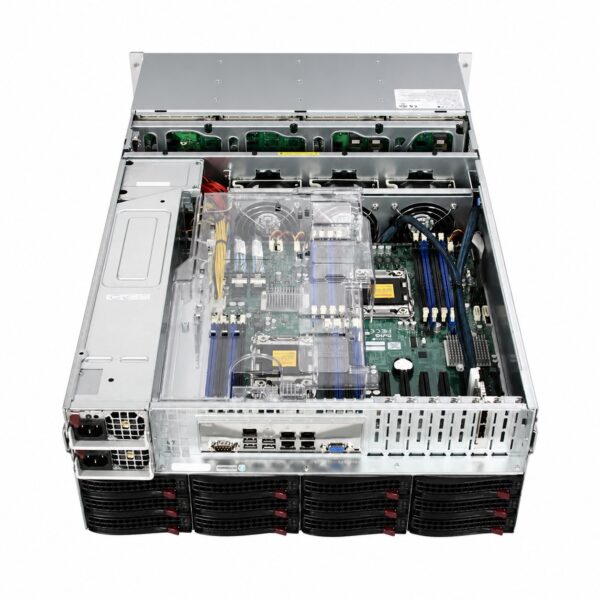

| Motherboard | Super X9DRD-7LN4F-JBOD |
| Processor / CPU |
Dual Socket R (LGA 2011) Supports Intel® Xeon® Processor E5-2600 & E5-2600 v2 Family (up to 130W TDP) System Bus: QPI up to 8.0 GT/s |
| Chipset | Intel® C602J Chipset |
| System Memory |
Slots: 16x 240-pin DDR3 DIMM slots Capacity: Up to 1TB ECC LRDIMM, 512GB ECC RDIMM, 128GB ECC UDIMM Memory Types: DDR3 1866/1600/1333/1066/800MHz SDRAM (1.5V / 1.35V) |
| Drive Bays |
Hot-Swap: 36x 3.5″ SAS2 / SATA3 hot-swap HDD bays (24 Front + 12 Rear) Optional: Internal drive tray supports up to 2x 2.5″ or 1x 3.5″ fixed drives |
| Storage Controller |
SAS Controller: Onboard LSI 2308 IT Mode / Pass-through controller Backplane: Single SAS2/SATA3 Expander per backplane SATA Controller: 2x SATA 3.0 (6Gbps) + 4x SATA 2.0 (3Gbps) with RAID 0, 1, 5, 10 |
| Expansion Slots | 5x PCI-Express 3.0 x8 slots (Low-Profile) |
| Networking |
LAN: 4x RJ45 Gigabit Ethernet ports via Intel® i350 GbE Controller Management: 1x Dedicated RJ45 IPMI LAN port |
| Remote Management |
Support for IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN support Renesas SH7757 BMC |
| Graphics | Matrox G200 (integrated into Renesas SH7757 BMC) |
| Input / Output Ports |
• 4x RJ45 GbE LAN ports + 1x IPMI LAN port • 2x JBOD Expansion Ports • 9x USB 2.0 ports (4 Rear, 4 Header, 1 Type-A) • 1x VGA Port • 1x Fast UART 16550 Serial Port / Header |
| System Cooling | 7x 8cm heavy-duty PWM hot-swap cooling fans |
| Power Supply |
1280W Redundant Single Output Power Supply (1+1) 80 PLUS Platinum Certified (up to 95% efficiency) |
| Dimensions & Weight |
Height: 7.0″ (178mm) Width: 17.2″ (437mm) Depth: 27.5″ (699mm) Gross Weight: Approx. 67 lbs (30.4 kg) |
