Supermicro SuperServer SYS-6029TP-HTR
SYS-6029TP-HTR
Enterprise stock · tested · export documentation available
The Supermicro SuperServer SYS-6029TP-HTR is a high-density, high-efficiency 2U 4-node TwinPro™ system designed for compute-intensive enterprise workloads. The multi-node architecture packs four independent, hot-pluggable server nodes into a single 2U chassis.
Key Applications
-
High-Performance Computing (HPC) & Data Center Clusters
-
Compute-Intensive Enterprise Workloads
-
Cloud Computing & Multi-tenant Hosting
-
Financial Analysis & Mission-Critical Processing
-
Big Data Analytics & Software-Defined Infrastructure
Hardware Specifications (Per Node)
| Feature | Specification |

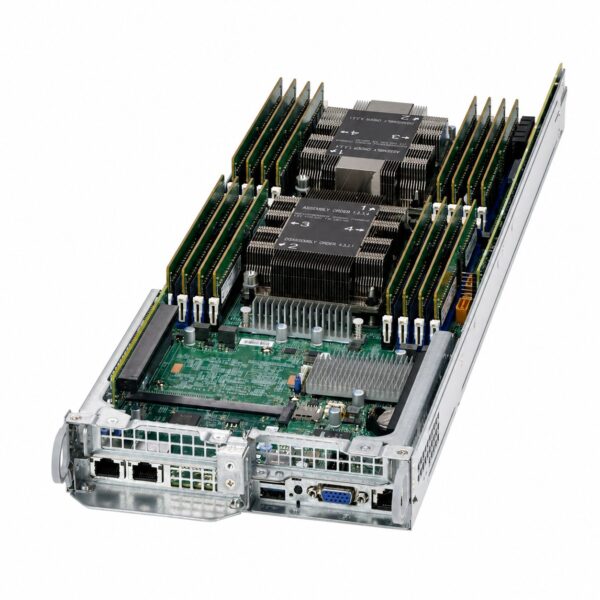

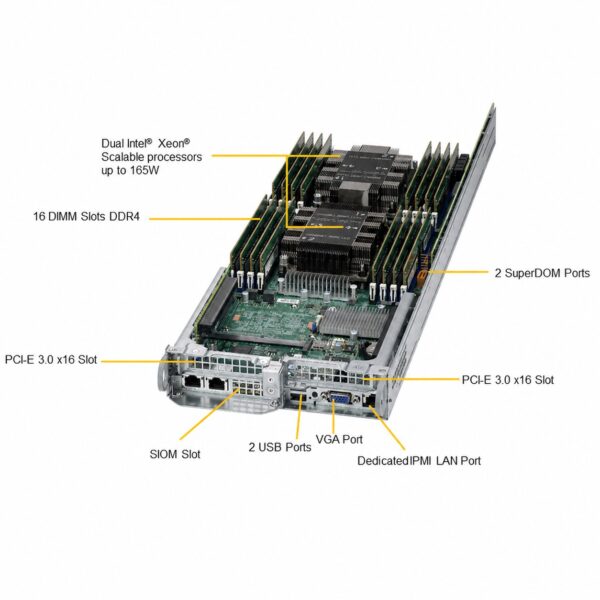

| Motherboard | Super X11DPT-PS (4 motherboards total per system) |
| CPU Support |
Dual Socket P (LGA 3647) Supports 2nd Gen Intel® Xeon® Scalable & Intel® Xeon® Scalable Processors (Cascade Lake/Skylake) Dual UPI up to 10.4 GT/s; TDP support 70W–165W (up to 28 cores per CPU) |
| Memory Capacity |
16 DIMM slots per node Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM Supports Intel® Optane™ DC Persistent Memory (DCPMM) |

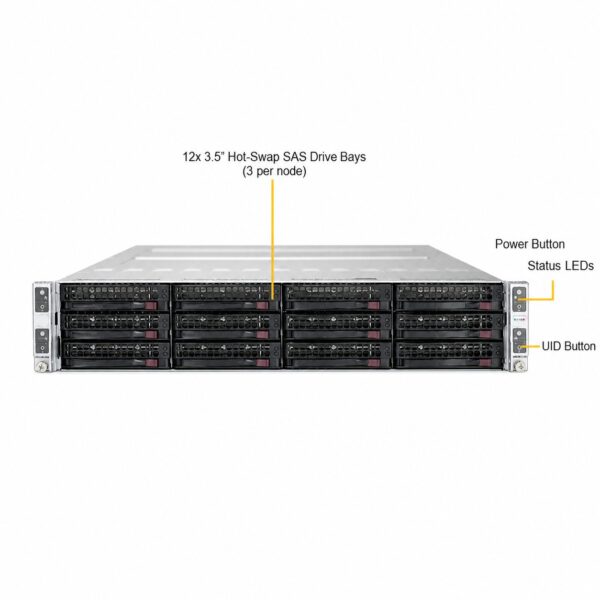

| Drive Bays | 3 x Hot-swap 3.5″ SATA3 (6Gbps) drive bays per node (12 x 3.5″ SATA3 total across 4 nodes) |
| RAID Support | Onboard Intel® C621 chipset SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Expansion Slots |
2 x PCI-Express 3.0 x16 Low-Profile (LP) slots 1 x SIOM (Supermicro I/O Module) expansion card slot |
| Networking | Flexible Networking via SIOM module (1 Network card/SIOM module required per node) |
| Remote Management |
Integrated ASPEED AST2500 BMC Supports IPMI 2.0 with virtual media over LAN and KVM-over-LAN |

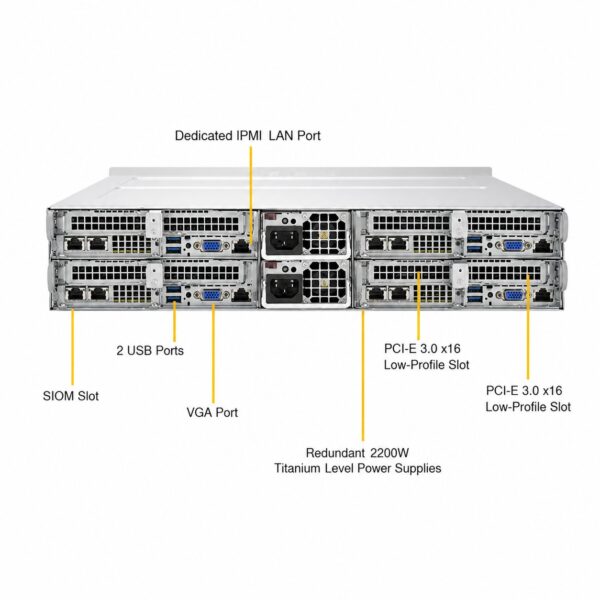

| Rear I/O Ports |
1 x RJ45 Dedicated IPMI LAN port 2 x USB 3.0 ports 1 x VGA port 1 x Fast UART 16550 Serial Port / Header (internal) |
Chassis & System Physical Details
Chassis Specifications
-

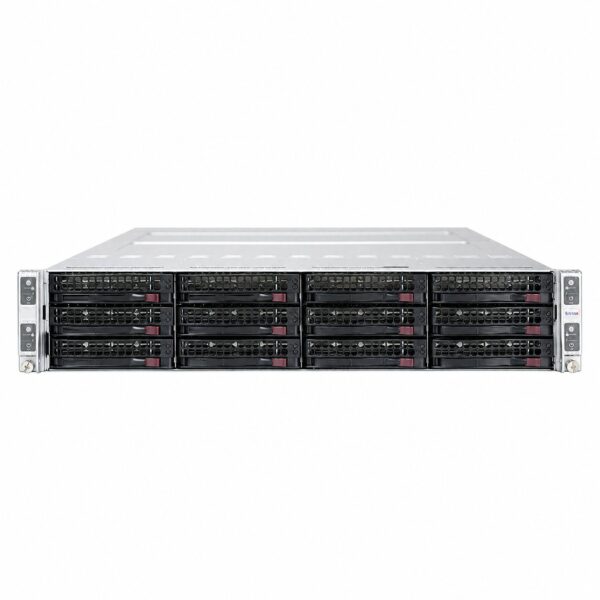

Form Factor: 2U Rackmount (Model: CSE-827HQ+-R2K20BP2)
-
Dimensions (W x H x D): 17.25″ x 3.47″ x 30.5″ (438mm x 88mm x 774mm)
-
Weight: Net Weight: 72 lbs (32.7 kg) | Gross Weight: 90 lbs (40.9 kg)
-
System Cooling: 4 x heavy-duty 8cm PWM cooling fans with optimal speed control
Power Supply Unit (PSU)
-

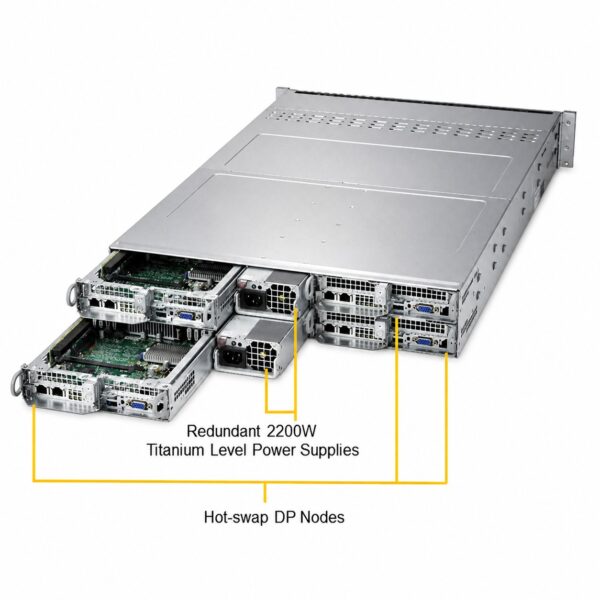

Configuration: 2200W Redundant Power Supplies with PMBus (PWS-2K20A-1R)
-
Efficiency Rating: 80 PLUS Titanium Level (96% efficiency)
-
AC Input Ratings:
-
1200W Output @ 100–127Vac
-
1800W Output @ 200–220Vac
-
1980W Output @ 220–230Vac
-
2200W Output @ 220–240Vac
-
Environmental Requirements
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-Operating Temperature: -40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
