Supermicro SuperServer SYS-6028R-TR

Supermicro SuperServer SYS-6028R-TR

System Overview

Specification	Details
Product SKU	SYS-6028R-TR
Motherboard	Super X10DRi
Chassis	CSE-825TQ-R740LPB
Form Factor	2U Rackmount
Target Workloads	Cloud & Virtualization, Database Processing, Enterprise Storage, Compute Intensive Applications

Hardware Specifications

Processor & Chipset

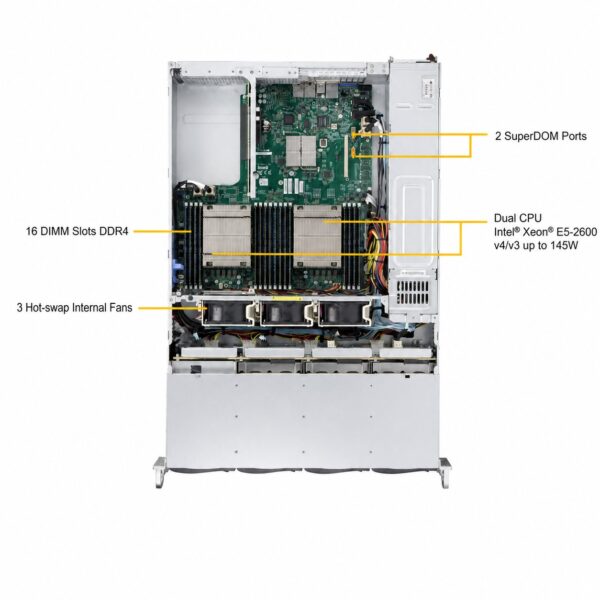

• CPU Support: Dual Socket R3 (LGA 2011) supporting Intel® Xeon® processor E5-2600 v4 / v3 family (up to 145W TDP)

• System Bus: QPI up to 9.6 GT/s

• Chipset: Intel® C612 Express Chipset

System Memory

• Memory Slots: 16x 288-pin DDR4 DIMM slots

• Supported Memory Types: DDR4 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM

• Maximum Capacity: Up to 2TB ECC 3DS LRDIMM or up to 512GB ECC RDIMM

• Memory Voltage: 1.2 V

Storage & Expansion

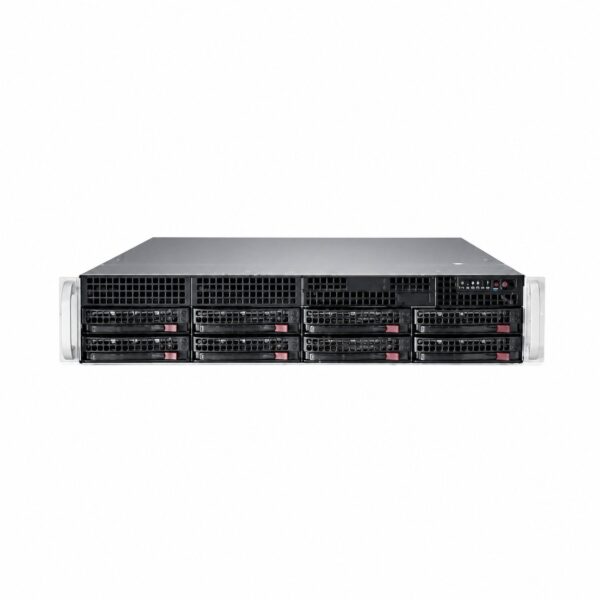

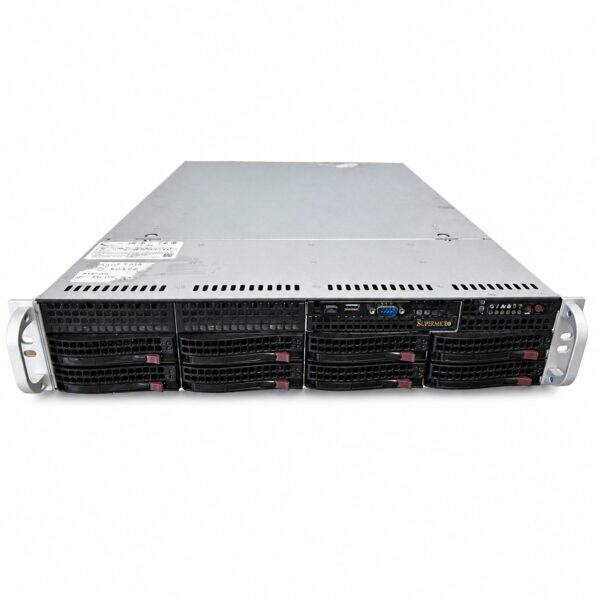

• Drive Bays: 8x 3.5″ Hot-swap SATA3 HDD bays

• Onboard SATA: Intel® C612 controller supporting SATA3 (6Gbps) with RAID 0, 1, 5, 10

• DOM Support: 2x SuperDOM (Disk on Module) ports with built-in power

• Expansion Slots:

  • 3x PCI-Express 3.0 x16 (Low-profile)

  • 3x PCI-Express 3.0 x8 (Low-profile)

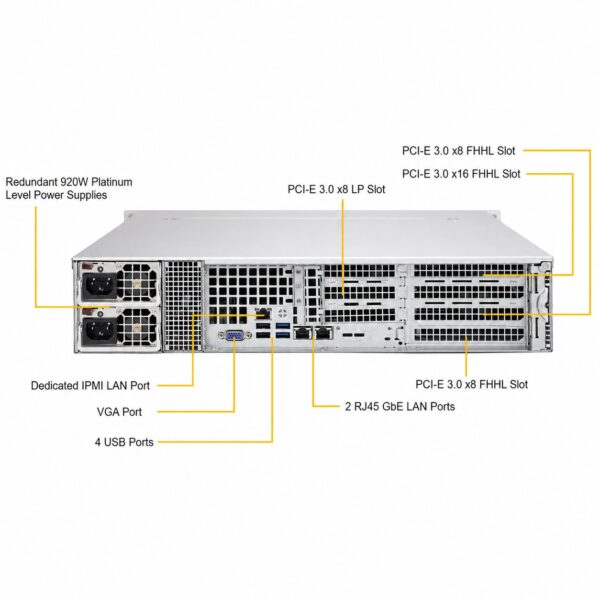

Onboard I/O & Network

• Network Controller: Integrated Intel® i350 Dual Port Gigabit Ethernet (2x GbE RJ45 ports)

• Remote Management: Integrated IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN (1x Dedicated IPMI LAN port, Realtek RTL8201N PHY)

• Graphics: Integrated ASPEED AST2400 BMC with 1x VGA port

• USB Ports: 4x USB 3.0 ports (2 rear, 2 via header), 7x USB 2.0 ports (2 rear, 2 front, 2 via header, 1 Type-A)

• Serial Header: 1x Fast UART 16550 port / 1x Header

System Cooling & Power

• Cooling Fans: 3x 80x80x38mm counter-rotating PWM cooling fans

• Power Supply: 740W Redundant (1+1) Power Supplies with PMBus, Platinum Level (94% Efficiency)

Physical & Environmental Specs

• Dimensions (W × H × D): 17.2″ (437 mm) × 3.5″ (89 mm) × 25.5″ (647 mm)

• Gross Weight: ~69 lbs (31.2 kg)

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
