Supermicro SuperServer SYS-2028TP-HTR
SYS-2028TP-HTR
Enterprise stock · tested · export documentation available
Supermicro SuperServer SYS-2028TP-HTR

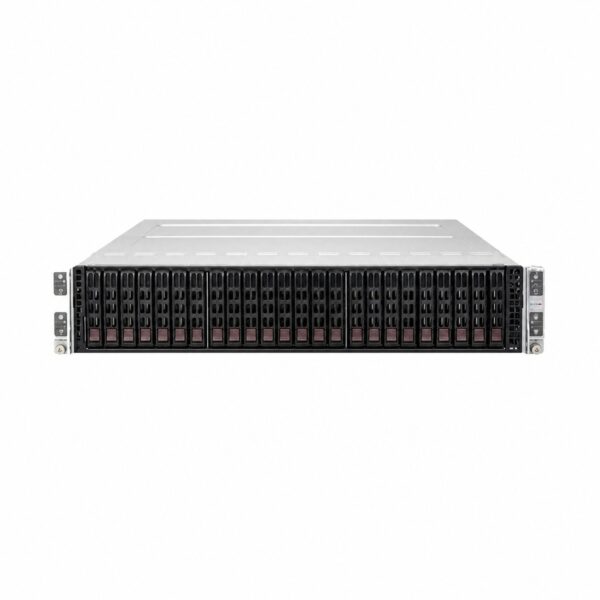

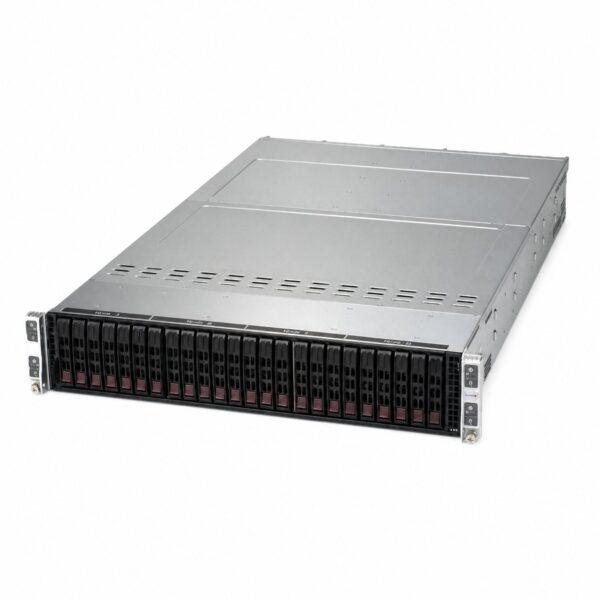

The Supermicro SuperServer SYS-2028TP-HTR is a high-density, multi-node 2U rackmount server system designed for enterprise data centers, cloud computing, high-performance computing (HPC), and hyper-converged infrastructure. It incorporates 4 independent hot-pluggable server nodes into a single 2U chassis, offering maximum computing power per rack unit.
Key System Features
-
High-Density Architecture: 4 hot-swappable nodes in a standard 2U form factor.
-
Dual Processor Support: Dual Socket R3 (LGA 2011) per node supporting Intel® Xeon® E5-2600 v3 / v4 series processors.
-
Massive Memory Capacity: Up to 2TB ECC 3DS LRDIMM or 1TB ECC RDIMM DDR4-2400MHz in 16 DIMM slots per node.
-
Flexible Storage: 3x 3.5″ Hot-swap SAS/SATA drive bays per node (12x 3.5″ drive bays total in 2U).
-
Flexible Networking: SIOM slot for customizable network expansion (10GbE/40GbE/InfiniBand options) plus dual GbE ports.
-
High Efficiency & Redundancy: Redundant 2000W / 1280W Titanium / Platinum Level high-efficiency power supplies.

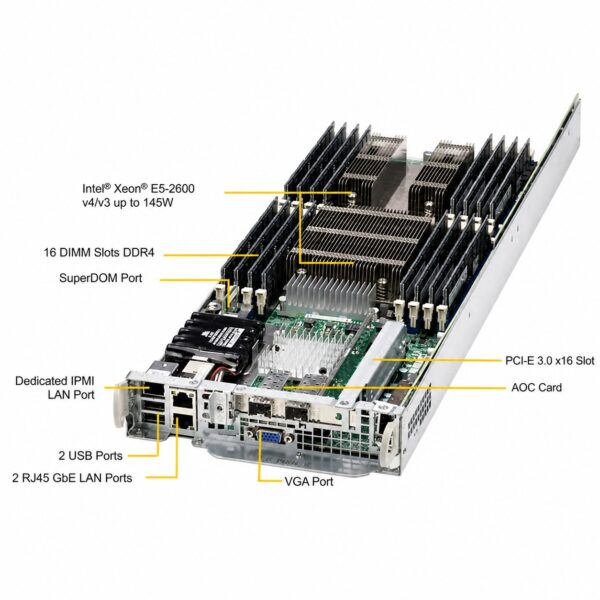

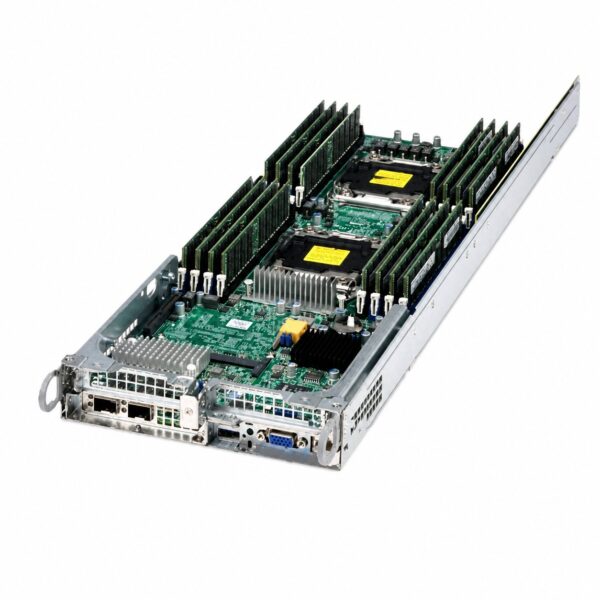

Node Specifications (Per Node × 4)
| Category | Specification Details |
| Motherboard | Super X10DRT-P |
| Processor / CPU |
Dual Socket R3 (LGA 2011) Supports Intel® Xeon® processor E5-2600 v3 / v4 family Up to 22 Cores / Up to 55MB Cache per CPU System Bus: QPI up to 9.6 GT/s Thermal Design Power (TDP): Up to 145W |
| Memory Capacity |
16x 288-pin DDR4 DIMM slots Up to 2TB ECC 3DS LRDIMM / 1TB ECC RDIMM Speeds: 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM |
| Chipset | Intel® C612 chipset |
| SATA / RAID | SATA3 (6Gbps) via Intel C612; RAID 0, 1, 5, 10 support |
| Network Controllers | Intel® i350 Dual Port Gigabit Ethernet (2x RJ45) |
| IPMI / Remote Mgmt. |
Support for IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN Dedicated RJ45 IPMI Management Port ASPEED AST2400 BMC |
| Graphics | ASPEED AST2400 BMC |
| Expansion Slots |
1x PCI-E 3.0 x16 (Low-Profile) 1x PCI-E 3.0 x16 (for SIOM flexible networking module) |
| Drive Bays | 3x 3.5″ Hot-swap SAS/SATA drive bays |
| I/O Ports |
2x RJ45 GbE LAN ports 1x Dedicated IPMI LAN port 2x USB 3.0 ports 1x VGA Video port 1x Fast UART 16550 Serial Port / Header |
Chassis Specifications
| Feature | Description |
| Form Factor | 2U Rackmount (Chassis model: CSE-827HQ+-R2K08B / CSE-827HQ+-R1K28B) |
| Dimensions |
Height: 3.47″ (88 mm) Width: 17.25″ (438 mm) Depth: 30.5″ (774 mm) |

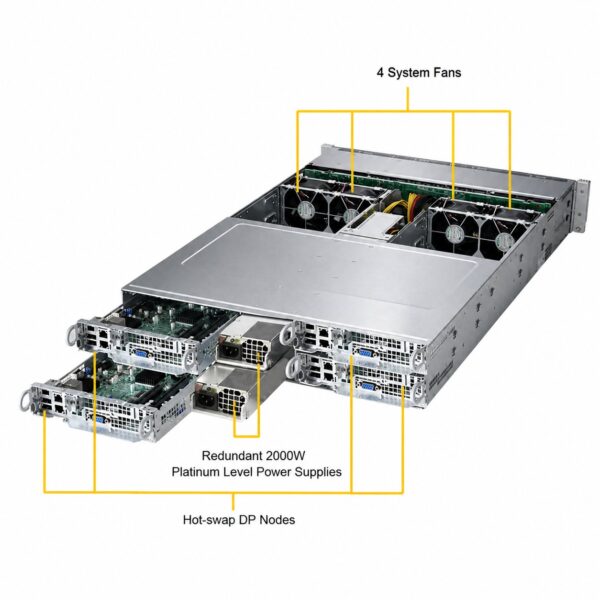

| System Cooling | 4x 8 cm heavy-duty PWM cooling fans with optimal fan speed control |
| Power Supply |
2000W / 1280W Redundant Power Supplies with PMBus 96%+ Titanium / Platinum Level Efficiency |
| System Management | SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMI 2.0 |
| Operating Temp. | 10°C to 35°C (50°F to 95°F) |
