Supermicro SuperServer SYS-1028GQ-TRT
SYS-1028GQ-TRT
Enterprise stock · tested · export documentation available
Supermicro SuperServer SYS-1028GQ-TRT
Key Features & Highlights
-
High-Density GPU Architecture: Supports up to 4x double-width PCI-E 3.0 x16 GPUs / Coprocessors in a 1U rackmount form factor.
-
Dual Processor Support: Dual Socket R3 (LGA 2011) supporting Intel® Xeon® processor E5-2600 v3 / v4 family.
-
Large Memory Capacity: 16x DDR4 DIMM slots supporting up to 2TB ECC 3DS LRDIMM or 1TB ECC RDIMM up to 2400MHz.
-
10GbE Networking: Dual 10GBase-T LAN ports powered by the Intel® X540 Ethernet Controller.
-
Titanium Efficiency Power: 2000W redundant power supplies with Titanium-level (96%+) power efficiency.
System Specifications
| Feature | Technical Specification |
| Model | Supermicro SuperServer SYS-1028GQ-TRT |
| Motherboard | Super X10DGQ |
| Form Factor | 1U Rackmount (17.2″ W x 1.7″ H x 35.2″ D / 437mm x 43mm x 894mm) |
| Processor (CPU) |
Sockets: Dual Socket R3 (LGA 2011) Supported CPUs: Intel® Xeon® processor E5-2600 v3 / v4 series Cores / Cache: Up to 22 Cores / Up to 55MB Cache System Bus: QPI up to 9.6 GT/s |
| Chipset | Intel® C612 chipset |
| System Memory |
Slots: 16x 288-pin DDR4 DIMM slots Max Capacity: Up to 2TB ECC 3DS LRDIMM / 1TB ECC RDIMM Speeds: 2400 / 2133 / 1866 / 1600MHz ECC DDR4 SDRAM |

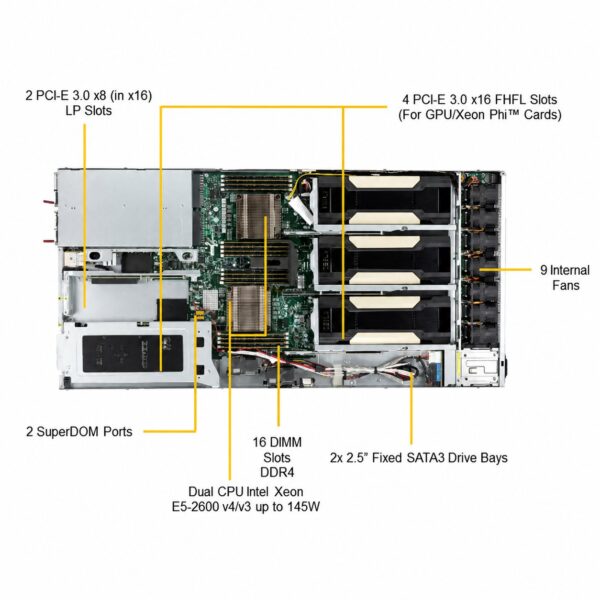

| GPU / Coprocessor Support | Up to 4x PCI-E 3.0 x16 double-width GPUs / Accelerators (Non-GPU zone design to isolate heat) |
| Expansion Slots |
• 4x PCI-E 3.0 x16 slots (Dedicated for double-width GPUs) • 2x PCI-E 3.0 x8 (in x16) low-profile slots |

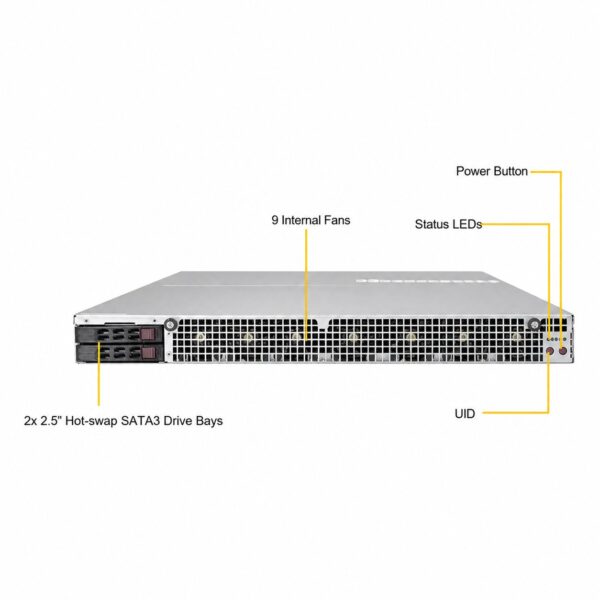

| Drive Bays | 2x 2.5″ Hot-swap SATA3 drive bays |
| Storage Controller | SATA3 (6Gbps) via Intel C612 controller; RAID 0, 1, 5, 10 support |

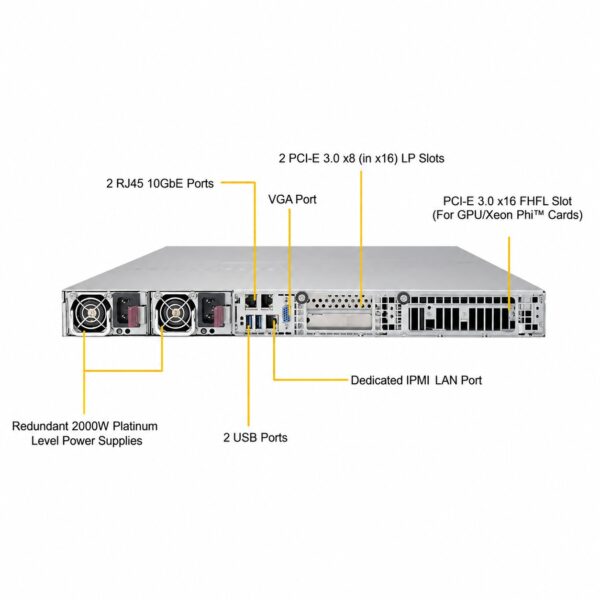

| Networking | Dual 10GBase-T Ethernet ports via Intel® X540 controller |
| Management |
• IPMI 2.0 with virtual media over LAN & KVM-over-LAN support • Dedicated RJ45 IPMI LAN port |
| Graphics | Integrated ASPEED AST2400 BMC |
| Power Supply |
2000W Redundant Power Supplies with PMBus AC Input: 100–120V / 200–240V Efficiency Rating: Titanium Level (96%+) |
| System Cooling | 9x 4cm heavy-duty counter-rotating PWM cooling fans with air shrouds |
| System BIOS | 128Mb SPI Flash EEPROM with AMI BIOS |
Operating Environment
| Parameter | Operating Range | Non-Operating Range |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 8% to 90% (non-condensing) | 5% to 95% (non-condensing) |
