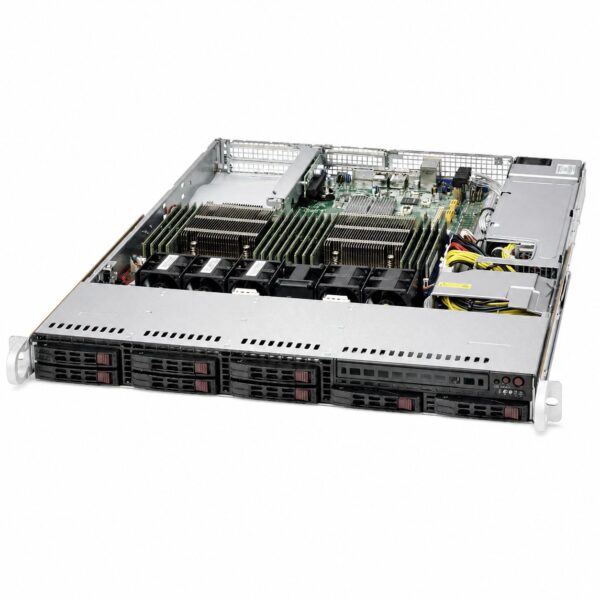

Supermicro SuperServer 1028R-TDW (SYS-1028R-TDW)

Supermicro SuperServer 1028R-TDW (SYS-1028R-TDW)

Key Features Summary

• Form Factor: 1U Rackmount (Chassis: CSE-113TQ-600WB)

• Processor Support: Dual Socket R3 (LGA 2011) supporting Intel® Xeon® E5-2600 v4 / v3 family

• Memory Capacity: Up to 2TB ECC 3DS LRDIMM / 1TB ECC RDIMM DDR4 across 16 DIMM slots

• Drive Bays: 8x 2.5″ Hot-swap SATA3 Drive Bays

• Expansion Slots: 2x PCI-E 3.0 x16 (FHHL), 1x PCI-E 3.0 x8 (LP)

• Networking: Dual-port 1GbE LAN via Intel® i350 + Dedicated IPMI LAN port

• Power Supply: 600W High-Efficiency Platinum Level Power Supply

System Architecture & Motherboard

Component	Specification
Motherboard	Super X10DDW-i
Processor (CPU)	Dual Socket R3 (LGA 2011) Supports Intel® Xeon® processor E5-2600 v4 / v3 family (up to 145W TDP) Cores: Up to 22 Cores per processor / Up to 55MB Cache
System Bus	QPI up to 9.6 GT/s
Chipset	Intel® C612 Chipset

Memory Specifications

Parameter	Details
Slots	16x 288-pin DDR4 DIMM slots
Maximum Capacity	Up to 2TB ECC 3DS LRDIMM Up to 1TB ECC RDIMM
Memory Type	DDR4 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM (72-bit)
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors, detects double-bit errors

Storage & Backplane

• Drive Bays: 8x 2.5″ Hot-swap SATA3 (6Gbps) drive bays

• Backplane: SAS2 / SATA3 Backplane (BPN-SAS-113TQ)

• RAID Support: SATA3 (6Gbps) via Intel C612; RAID 0, 1, 5, 10 support

• DOM Ports: 2x SuperDOM (Disk on Module) ports with built-in power

• Peripheral Bays: 1x Slim DVD-ROM drive bay (optional)

Expansion Slots & I/O Interfaces

Expansion Slots

• PCI-Express x16: 2x PCI-E 3.0 x16 (Full-height, Half-length) slots

• PCI-Express x8: 1x PCI-E 3.0 x8 (Low-profile) slot

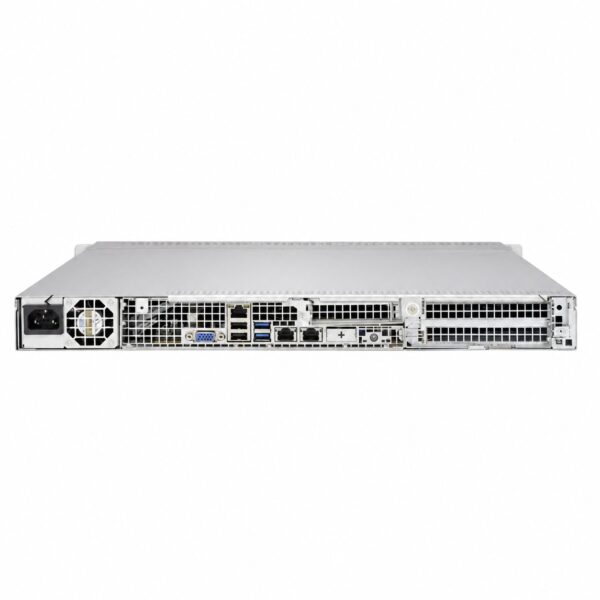

Front & Rear Panel I/O

• LAN: 2x RJ45 Gigabit Ethernet ports (Intel® i350) + 1x RJ45 Dedicated IPMI LAN port

• USB: 3x USB 3.0 ports (2 rear, 1 Type-A), 4x USB 2.0 ports (2 rear, 2 headers)

• VGA: 1x VGA port (ASPEED AST2400 BMC)

• Serial Port: 1x COM port (header)

Management & Network Control

• IPMI Management: Support for Intelligent Platform Management Interface v2.0 (IPMI 2.0 with virtual media over LAN and KVM-over-LAN support)

• BMC Controller: ASPEED AST2400 BMC

• Network Controller: Intel® i350 Dual-Port Gigabit Ethernet Controller

• Management Software: Supermicro SuperDoctor® 5, IPMI 2.0, Intel® Node Manager, SSM, SPM, SUM

Power & Thermal Systems

Feature	Specification
Power Supply	600W High-Efficiency Power Supply w/ PMBus 1.2
Efficiency Rating	Platinum Level Certified (94%+ Efficiency)
AC Input	100 – 240V, 50 – 60Hz
DC Output	+3.3V: 15A | +5V: 18A | +12V: 49A | +5Vsb: 3A | -12V: 0.5A
System Cooling	5x 4cm PWM cooling fans with optimal fan speed control

Physical Specifications & Operating Environment

• Form Factor: 1U Rackmount

• Dimensions (W x H x D): $17.2\text{ in} \times 1.7\text{ in} \times 23.5\text{ in}$ ($437\text{ mm} \times 43\text{ mm} \times 597\text{ mm}$)

• Gross Weight: ~46 lbs (20.9 kg)

• Operating Temperature: 10°C to 35°C (50°F to 95°F)

• Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Relative Humidity: 8% to 90% (non-condensing)
