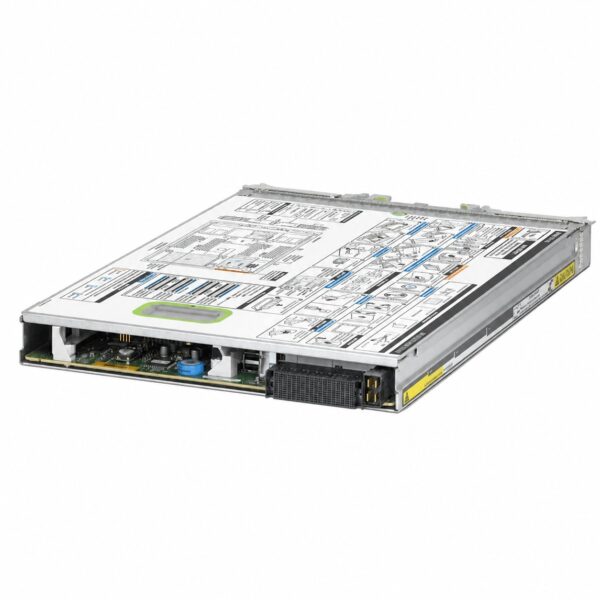

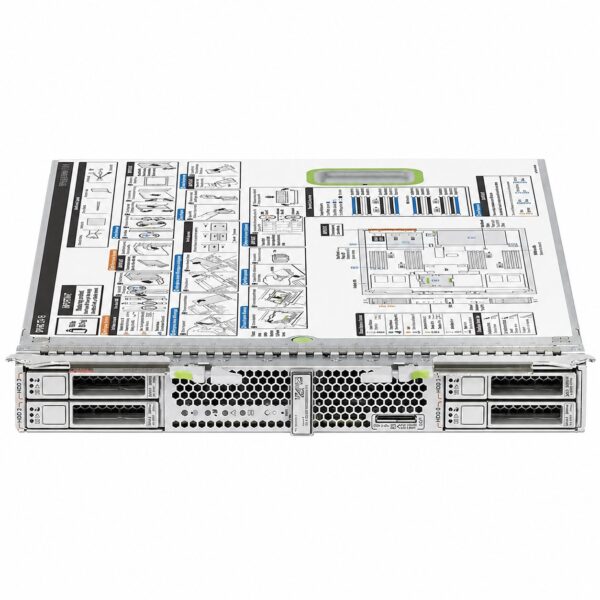

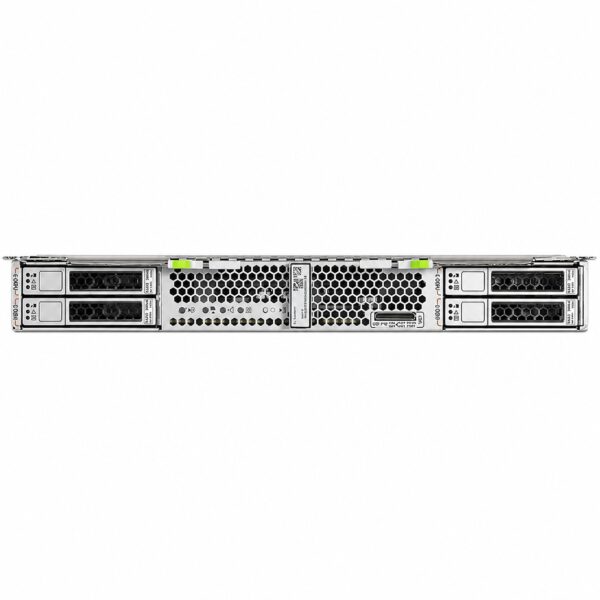

Sun Oracle SPARC T3-1B Blade Server Module
Sun Oracle SPARC T3-1B Blade Server Module
| Part No. | t3-1b |
|---|---|
| Manufacturer | Sun Oracle |
| End of Life? | Yes |
| Succeeded By | SPARC T5-1B Server Module |
| Rack Units | 1 Blade Unit |
| Height | 44.45 mm |
| Width | 327.15 mm |
| Depth | 496.82 mm |
| Weight [Kg] | 8.30 |
| CPU Socket(s) | 1 |
| Compatible CPU(s) | SPARC T3 8 Core or 16 Core |
| Max CPU Clk Spd | 1.65 GHz |
| Max # Thread(s) | 128 |
| Memory Slot(s) | 16 |
| Memory Capacity | 128 GB |
| Drive Bays | 8x SAS 2.0 Interfaces 4x Optional Internal 300 GB 10Krpm SAS Drives |
| RAID Options | LSI SAS2008 Controller RAID 0,1 Support |
| Supported OS | Oracle Solaris 10 9/10 (U9) preloaded Support for Solaris 10 10/09 (U8) + Oracle Solaris Patch Bundle Oracle VM Server for SPARC 2.0 Electronic Prognostics 1.1 |
| USB Port(s) | 2x USB 2.0 |
| PCI Slot(s) | 4x x8 PCIe Busses 4x 3.0 GB/sec SAS Interfaces, two per NEM |
| LAN Socket(s) | 2x 10/100/1000 GbE Interfaces, one per NEM 10/100 Ethernet Management Port for CMM |
The SPARC T3-1B installs in the highly efficient Sun Blade 6000 chassis supporting up to 10 full-featured, top-performance Oracle blade server modules, and PCIe Gen2, in a compact 10U form factor, with I/O throughput up to 144Gb/sec. The Sun Blade 6000 provides up to 6.4 terabit-per-second headroom for future CPU and I/O architectures. Designed for high reliability and efficiency, the Sun Blade 6000 provides a flexible, modular network infrastructure. With the Sun Blade 6000 chassis and SPARC T3-1B blade server, customers are able to greatly reduce their time-to-revenue and virtually eliminate downtime for I/O upgrades.
