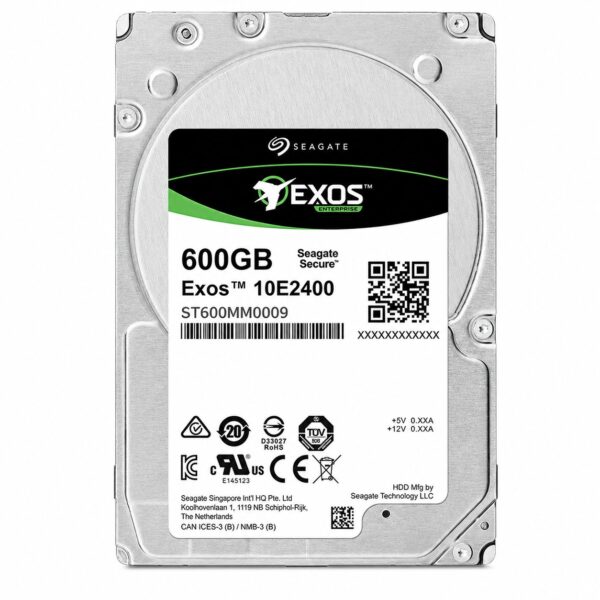

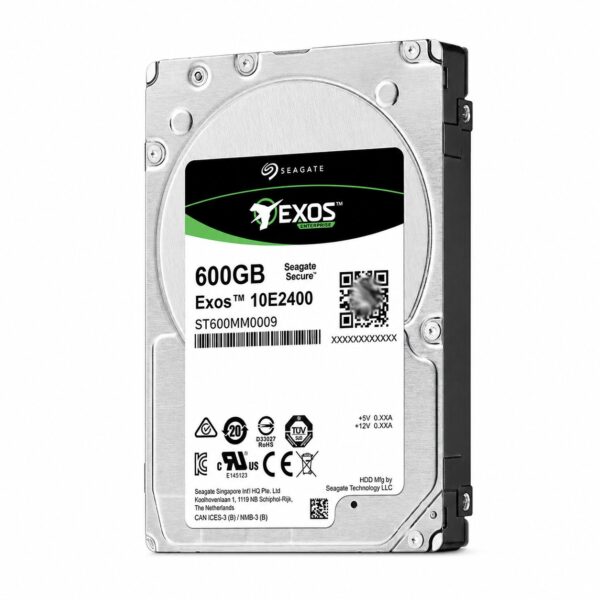

Seagate 600GB 10K SAS 12Gb/s 128MB Cache
ST600MM0009
Enterprise stock · tested · export documentation available
Seagate Exos 10E2400 Series Datasheet (ST600MM0009)
Overview
-
Manufacturer: Seagate Technology
-
Model Number: ST600MM0009
-
Product Series: Exos 10E2400 (formerly Enterprise Performance 10K HDD)
-
Target Applications: Mission-critical enterprise servers, high-density storage arrays, blade/rack servers, SAN/NAS systems, and transactional processing databases
Core Specifications
| Parameter | Specification Details |
| Formatted Capacity | 600 GB |
| Form Factor | 2.5-inch Small Form Factor (SFF, 15mm height) |
| Interface | SAS 12Gb/s (Dual Port, backward compatible with SAS 6Gb/s) |
| Spindle Speed | 10,000 RPM |
| Cache Buffer | 128 MB |
| Sector Formatting | 512n (512 Native Bytes per Sector) |
Performance & Reliability
| Parameter | Technical Value |
| Interface Speed | 12 Gbps (1.2 GB/s) |
| Max Sustained Transfer Rate | Up to 250 MB/s |
| Average Latency | 2.9 ms |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Annualized Failure Rate (AFR) | 0.44% |
| Non-Recoverable Read Errors | 1 sector per $10^{16}$ bits read |
| Operational Duty Cycle | 24×7 Continuous Operation |
| Limited Warranty | 5 Years |
Power Consumption & Environmental
| Parameter | Operating / Rating Value |
| Idle Power Consumption | ~4.26 W |
| Max / Active Power Consumption | ~7.25 W |
| Operating Temperature | 5°C to 55°C (41°F to 131°F) |
| Operating Shock (11 ms) | 40 G |
| Non-Operating Shock (2 ms) | 400 G |
| Operating Vibration (<500 Hz) | 0.5 G |
Physical Dimensions
| Dimension | Specification |
| Height | 15.00 mm (0.591 in) |
| Width | 70.10 mm (2.760 in) |
| Depth | 100.45 mm (3.955 in) |
| Weight | ~215 g (0.474 lb) |
