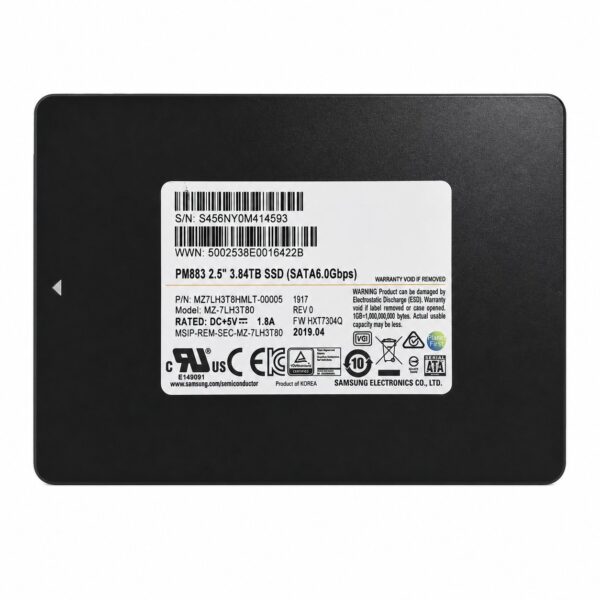

Samsung PM883 Series 3.84 TB SATA 6.0 Gbps
MZ7LH3T8HMLT-00005
Enterprise stock · tested · export documentation available
General Information
| Parameter | Value / Specification |
| Manufacturer | Samsung Electronics |
| Part Number (P/N) | MZ7LH3T8HMLT-00005 |
| Model / Series | PM883 Series |
| Form Factor | 2.5-inch, 7mm Z-Height |
| Target Application | Enterprise / Server / Data Center (Read-Intensive Workloads) |
| Interface | SATA 6.0 Gbps (SATA III, backward compatible with 3.0 Gbps & 1.5 Gbps) |
Technical Performance & Capacity
| Feature | Specification |
| Unformatted Capacity | 3.84 TB (3,840 GB) |
| NAND Flash Memory | Samsung V-NAND 3D TLC (64-layer) |
| Controller | Samsung Metis Controller |
| Sequential Read | Up to 550 MB/s |
| Sequential Write | Up to 520 MB/s |
| Random Read (4KB) | Up to 98,000 IOPS |
| Random Write (4KB) | Up to 28,000 IOPS |
Endurance & Reliability
| Feature | Specification |
| Endurance (TBW) | 5,466 TBW (Terabytes Written) |
| Drive Writes Per Day (DWPD) | 1.3 DWPD (5 Years) |
| Mean Time Between Failures (MTBF) | 2,000,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | 1 sector per $10^{17}$ bits read |
| Power Loss Protection (PLP) | Tantalum Capacitors (Hardware-based Power-Loss Protection) |
Electrical & Physical Characteristics
| Parameter | Value |
| Operating Power Consumption | Read: ~2.3 W / Write: ~3.7 W |
| Idle Power Consumption | ~1.3 W |
| Supply Voltage | 5.0V ± 5% |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Dimensions (W x L x H) | 100.20 x 69.85 x 6.80 mm |
| Weight | ~60 g |
