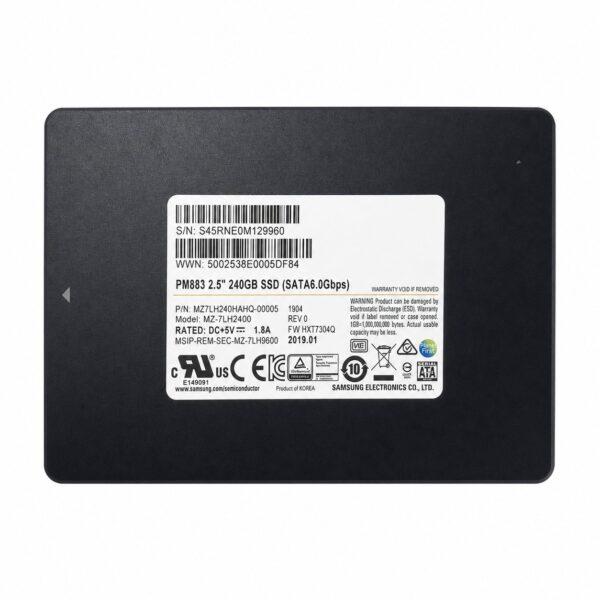

Samsung PM883 Enterprise SSD 240 GB SATA 6.0 Gbps (SATA III)

Here is the datasheet and technical specification summary for the Samsung PM883 SATA Enterprise SSD (Part Number: MZ7LH240HAHQ-00005).

Technical Specifications

Core Overview

• Brand / Manufacturer: Samsung

• Model Family: PM883 Series

• Part Number (P/N): MZ7LH240HAHQ-00005

• Target Audience / Market: Enterprise / Data Center

• Form Factor: 2.5-inch (7mm)

• Capacity: 240 GB

• Interface: SATA 6.0 Gbps (SATA III)

• NAND Flash Memory: Samsung 3D V-NAND (TLC)

• Controller: Samsung Metis Controller

Performance

• Sequential Read Speed: Up to 550 MB/s

• Sequential Write Speed: Up to 320 MB/s

• Random Read Speed (4KB): Up to 98,000 IOPS

• Random Write Speed (4KB): Up to 14,000 IOPS

Endurance & Reliability

• Drive Writes Per Day (DWPD): 1.3 DWPD (3-year target workloads)

• Total Bytes Written (TBW): 341 TBW

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): $1 \times 10^{-17}$ bits read

• Data Protection:

  • End-to-End Data Protection

  • Power- Loss Protection (PLP) via Tantalum Capacitors

  • AES 256-bit Hardware Encryption

Physical & Environmental

• Dimensions ($L \times W \times H$): $100.20 \times 69.85 \times 6.80\text{ mm}$

• Weight: Max 60.0 g

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Power Consumption:

  • Active Read/Write: ~2.3 W / 2.3 W

  • Idle: ~1.2 W
