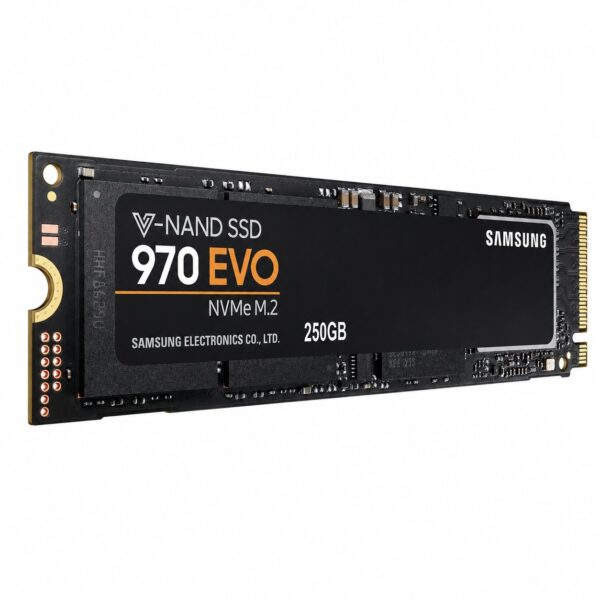

Samsung 970 EVO 250GB NVMe M.2 SSD
MZ-V7E250BW
Enterprise stock · tested · export documentation available
Product Overview
-
Brand: Samsung
-
Series: 970 EVO
-
Model Code: MZ-V7E250BW
-
Device Type: Solid State Drive (SSD) – Internal
-
Form Factor: M.2 (2280)
-
Application: Client PCs / Laptops & Workstations
Key Technical Specifications
Architecture & Memory
| Parameter | Specification |
| Capacity | 250 GB |
| Interface | PCIe Gen 3.0 x4, NVMe 1.3 |
| NAND Flash Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung Phoenix Controller |
| Cache Memory | 512 MB Low Power DDR4 SDRAM |
Performance Characteristics
| Metric | Rating |
| Sequential Read Speed | Up to 3,400 MB/s |
| Sequential Write Speed | Up to 1,500 MB/s |
| Random Read (4KB, QD32) | Up to 200,000 IOPS |
| Random Write (4KB, QD32) | Up to 350,000 IOPS |
| Random Read (4KB, QD1) | Up to 15,000 IOPS |
| Random Write (4KB, QD1) | Up to 50,000 IOPS |
Reliability & Environmental Features
-
Endurance (TBW): 150 Terabytes Written (TBW)
-
Mean Time Between Failures (MTBF): 1.5 Million Hours
-
Data Security: AES 256-bit Encryption (Class 0), TCG/Opal v2.0, IEEE1667 (Encrypted drive)
-
Smart Feature Support: TRIM, S.M.A.R.T, Auto Garbage Collection Algorithm
-
Thermal Control: Dynamic Thermal Guard (DTG) protection
-
Operating Temperature: 0°C to 70°C (32°F to 158°F)
-
Shock Resistance: 1,500 G & 0.5 ms (Half sine)
Power Consumption & Physical Specs
-
Average Power Consumption: ~5.4 W (Active Read/Write)
-
Maximum Power Consumption: 9.0 W (Burst Mode)
-
Idle Power Consumption: Max 30 mW
-
Device Sleep Mode: Max 5 mW
-
Dimensions (W x H x D): 80.15 x 22.15 x 2.38 mm
-
Weight: Max 8.0 g
