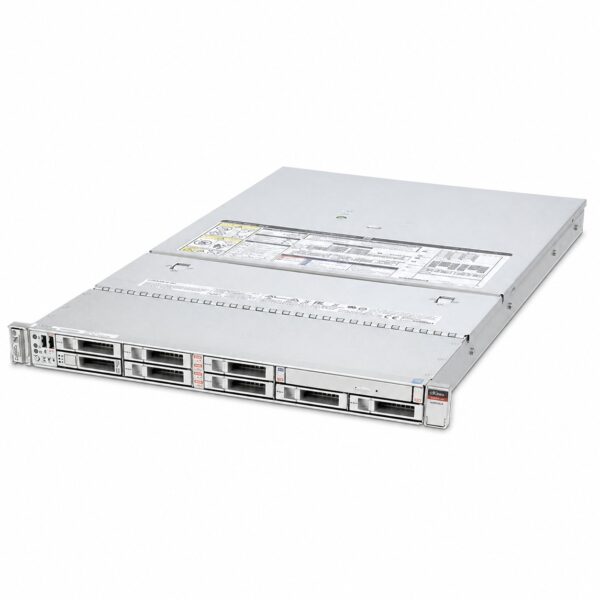

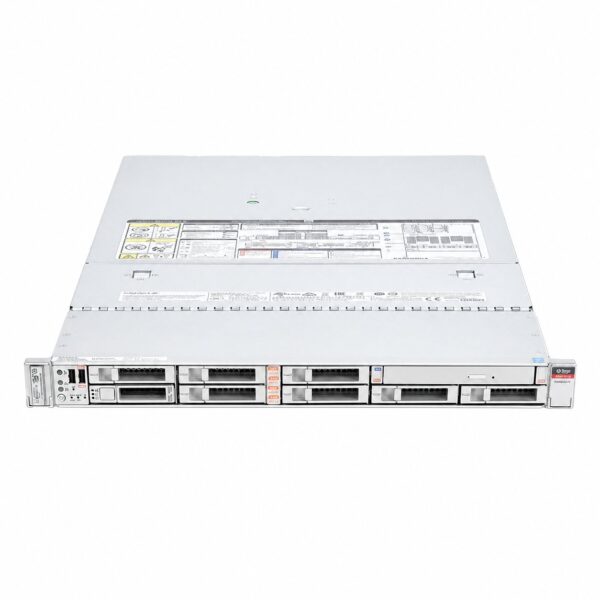

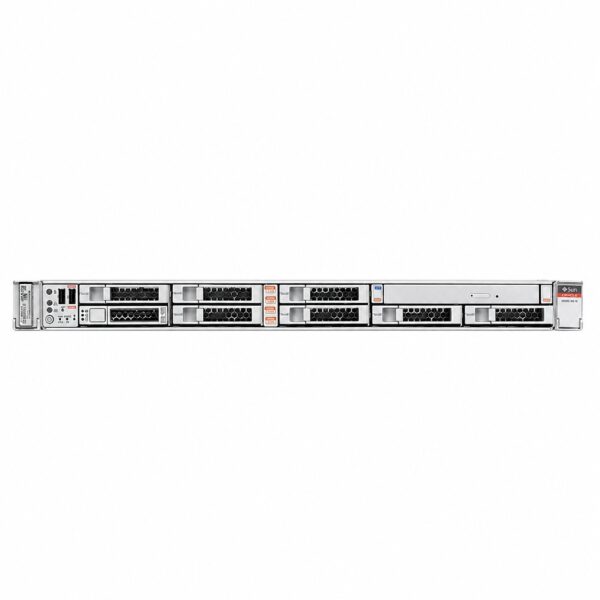

Oracle Sun Server X5-2
Oracle Sun Server X5-2
| Part No. | x5-2 |
|---|---|
| Manufacturer | Sun Oracle |
| End of Life? | No |
| Preceeded By | Sun Server X4-2 |
| Rack Units | 1 |
| Height | 42.6 |
| Width | 436.5 |
| Depth | 737.0 |
| Weight [Kg] | 18.00 |
| EAN | 101900 |
| CPU Socket(s) | 1–2 Intel Xeon E5-2600 v3 |
| Compatible CPU(s) | Intel Xeon E5-2699 v3 [18C]; Intel Xeon E5-2690 v3 [12C]; Intel Xeon E5-2660 v3 [10C]; Intel Xeon E5-2630 v3 [8C]; |
| CPU Cache | Level 1: 32 KB instruction and 32 KB data L1 cache per core; Level 2: 256 KB shared data and instruction L2 cache per core; Level 3: Up to 45 MB shared inclusive L3 cache per processor |
| Max # Thread(s) | Up to 36 per Socket |
| Max # Core(s) | Up to 18 per Socket |
| Memory Slot(s) | 24 (12 per Socket) |
| Memory Capacity | 768 GB |
| Memory Expansion | RDIMM options: 8 GB at DDR4-2133 and 16 GB at DDR4-2133; Load-reduced DIMM option: 32 GB at DDR4-2133 |
| Supported OS |
|
| USB Port(s) | Six 2.0 USB ports (two front, two rear, two internal) |
| PCI Slot(s) | Four PCIe 3.0 slots: two x16 and two x8 (one internal) slots |
| LAN Socket(s) | Four onboard auto-sensing 100/1000/10000 Base-T Ethernet ports; RJ45 serial management port; |
| Graphics / GPU | VGA 2D graphics controller embedded: 8MB |
| Resolution (Native) | 1,600 x 1,200 x 16 bits @ 60 Hz via the rear HD15 VGA port (1,024 x 768 when viewed remotely via Oracle ILOM) |
| Standard | The Oracle Server X5 – 2 system comes with a one – year warranty. |
| Optional | Additional support services are available; please contact your account manager for more information. |
