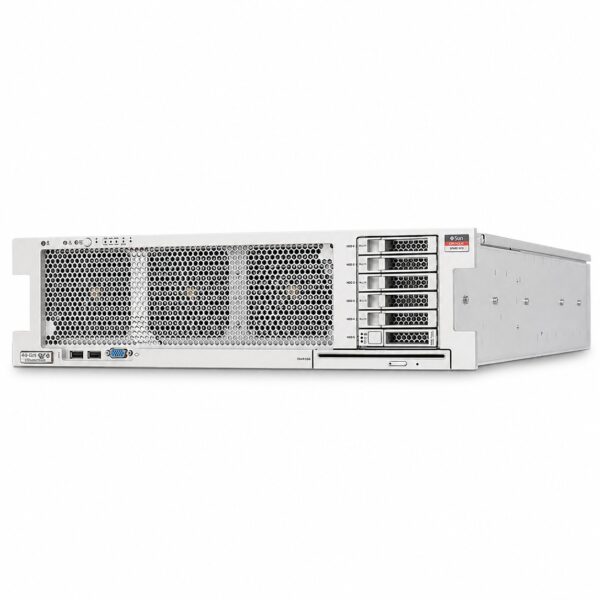

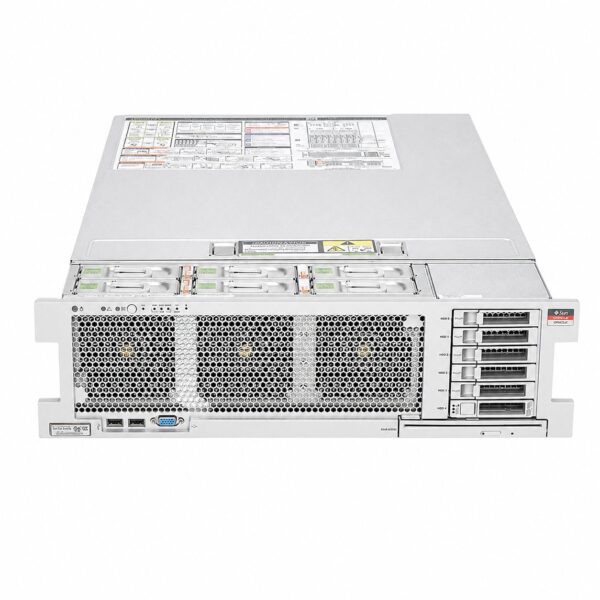

Oracle SPARC T5-2 Server
Oracle SPARC T5-2 Server
| Part No. | 7104190 |
|---|---|
| Manufacturer | Sun Oracle |
| Preceeded By | T4-2 |
| Rack Units | 3 RU |
| Height | 129.85 |
| Width | 436.5 |
| Depth | 732 |
| Weight [Kg] | 36.28 |
| Specification | Safety: UL/CSA 60950-1 (2nd Ed), EN 60950-1(2nd Ed), IEC 60950-1(2nd Ed) CB Scheme with all country deviations, CNS 14336-1 EMI/EMC: EN 55022 Class A, 47 CFR 15B Class A, ICES-003 Class A, VCCI Class A, CISPR22 Class A, CNS 13438 Class A, KN22 Class A, EN 61000-3-2, EN 61000-3-3 Immunity: EN 55024 and KN24 Regulatory markings: CE, FCC, ICES-003, C-Tick, VCCI, GOST-R, BSMI, KCC, cTUVus or cULus, S-Mark European Union directives: Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
| CPU Socket(s) | 2 (1 per Uniboard) |
| Compatible CPU(s) | SPARC T5 |
| Max CPU Clk Spd | 3.6 GHz |
| CPU Cache | Shared 8 MB, 8 banked, Level 3 Cache; 128 KB Level 2 unified cache per core |
| Max # Thread(s) | Up to 128 threads per processor for a maximum of 256 threads per system |
| Max # Core(s) | 16 cores per socket, 32 per system |
| Memory Slot(s) | 32x 1,066 MHz DDR3 DIMMs |
| Memory Capacity | 512 GB |
| Drive Bays | Up to six 300 GB or 600 GB 2.5 in. SAS drives or 100 GB or 300 GB SSD drives. |
| Capacity | 3.6 TB |
| HDD Suitability | Optional Sun Flash Accelerator F40 PCIe Card |
| RAID Options | RAID 0, 1, and 1E |
| Supported OS | Preinstalled: Oracle Solaris 11.1 |
| USB Port(s) | Four external USB ports (two in the rear are USB 3.0, two in front are USB 2.0, and one internal is USB 3.0) |
| PCI Slot(s) | Eight low-profile PCIe 3.0 (x8 wired) slots |
| LAN Socket(s) | Four 10 GbE (100 Mbps/1 Gbps/10 Gbps) |
| Graphics / GPU | One VGA port |
| Standard | The SPARC T5-2 server comes with a one-year warranty. |
| Optional | Enhanced support options are available from Business Systems International, please contact us for more details. |
