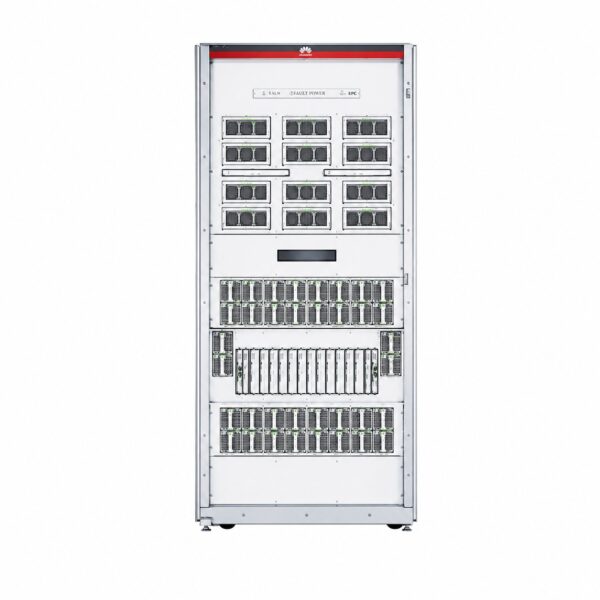

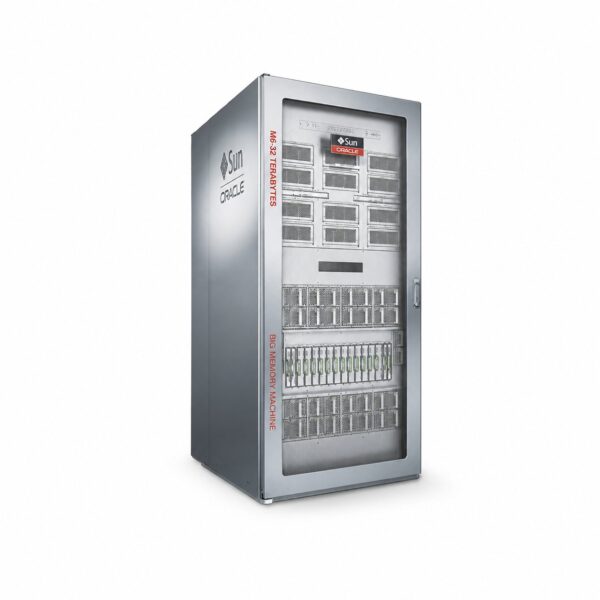

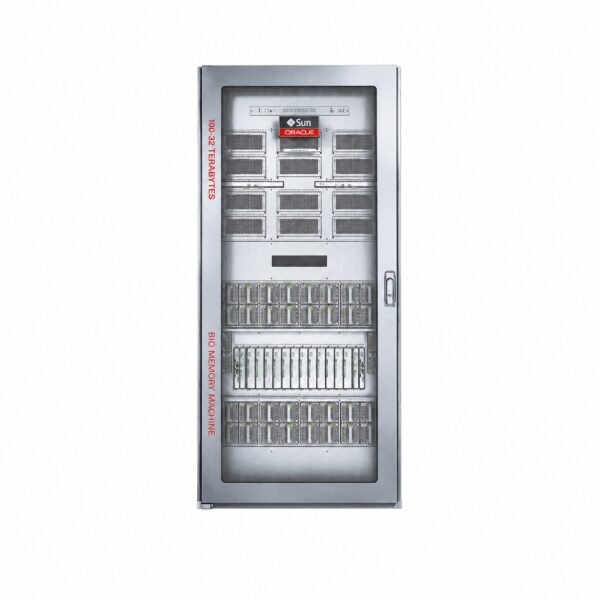

Oracle SPARC M6-32 Server
Oracle SPARC M6-32 Server
| Part No. | sparcm6-32 |
|---|---|
| Manufacturer | Oracle |
| End of Life? | No |
| Preceeded By | SPARC Enterprise M8000 Server, SPARC Enterprise M9000 Server, SPARC M5-32 |
| Rack Units | Complete Rack |
| Height | 2000 |
| Width | 904 |
| Depth | 1451 |
| Weight [Kg] | 1678.00 |
| Specification | Safety: EN 60950-1: 2006+A11:2009, IEC 60950-1:2005+A1:2009 2nd Edition, UL60950-1 2nd Edition,2011-12-19 ,CAN/CSA-C22.2 No.60950-1-01 2nd Edition 2011-12
EMC: EN55022:2010 Class A, EN55024:2010, EN61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3:2008, ETSI EN300386:2012 (V1.6.1) , 47 CFR15 Subpart B (FCC) Class A, ICES-003 Class A, AS/NZS CISPR22:2009+A1:2010, CISPR22:2008 Class A Regulatory markings: CE, FCC, ICES-003, C-Tick, VCCI, EAC, BSMI, KC, cULus European Union directives: Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU |
| CPU Socket(s) | Up to 32 |
| Compatible CPU(s) | SPARC M6 |
| Max CPU Clk Spd | 3.6 GHz |
| CPU Cache | 48 MB L3 per CPU |
| Max # Thread(s) | 96 Compute Threads per CPU, 3,072 Compute Threads per System |
| Max # Core(s) | 12 per CPU, 384 per System |
| Memory Capacity | 32 TB using 32 GB 1066MHz DDR3 DIMMs |
| Memory Expansion | 16 and 32 GB DIMMs |
| Drive Bays | Up to 32 600 GB 2.5 SAS Drives, or 300 GB SSDs |
| Capacity | 19.2 TB |
| HDD Suitability | SAS or SSD |
| Supported OS |
|
| PCI Slot(s) | Sixty-four low-profile PCIe 3.0 (x8 wired) slots accessed via a PCIe hot-plug carrier |
| LAN Socket(s) | Up to 32 10 GbE (100 Mbps/1 Gbps/10 Gbps) using configured Base I/O cards |
| Standard | The SPARC M6-32 server comes with a one-year warranty. |
| Optional | Additional support for the SPARC M6-32 is available, contact BSI for more details. |
