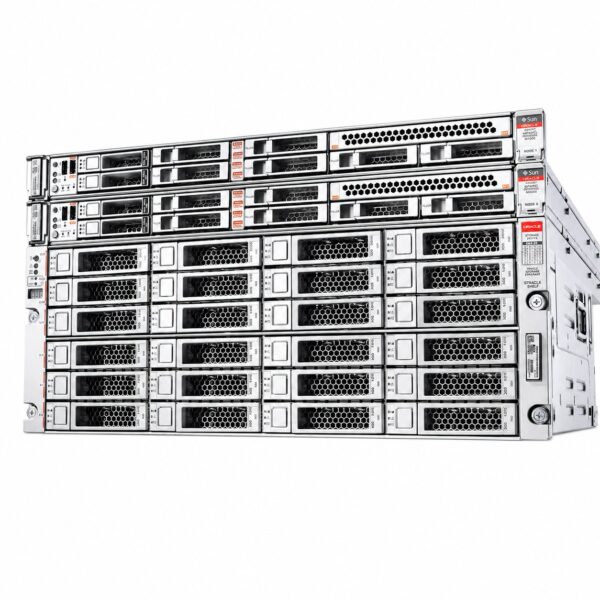

Oracle ODA X7-2-HA
Oracle ODA X7-2-HA
| Part No. | X7H2 |
|---|---|
| Manufacturer | Oracle |
| End of Life? | No |
| Preceeded By | X6-2 |
| Rack Units | 6 |
| Height | 42.6 |
| Width | 436.5 |
| Depth | 737.0 |
| Weight [Kg] | 18.10 |
| Specification | • 2006/95/EC Low Voltage Directive • 2004/108/EC EMC Directive • 2011/65/EU RoHS Directive • 2012/19/EU WEEE Directive |
| CPU Socket(s) | Intel® Xeon® Gold 6140 2.3 GHz, 18 cores, 140 watts, XCC, 24.75 MB L3 cache |
| Max CPU Clk Spd | Up to 2.3 GHz |
| CPU Cache | • Up to 24.75 MB L3 • Level 1: 32 KB instruction and 32 KB data L1 cache per core • Level 2: 1 MB shared data and instruction L2 cache per core • Level 3: Up to 1.375 MB shared inclusive L3 cache per core |
| Max # Core(s) | Up to 22 cores per processor |
| Memory Slot(s) | Twelve DIMM slots |
| Memory Capacity | 384 GB of DDR4 ECC DIMM memory |
| Memory Expansion | • 384 GB (12 x 32 GB) per server • Optional memory expansion to 768 GB (24 x 32 GB) per server • Both servers must contain the same amount of memory |
| Drive Bays | Eight 2.5-inch front hot-swappable disk bays and optional DVD-RW drive |
| HDD Suitability | • All 2.5-inch disk bays can be populated with either HDDs or conventional SSDs |
| RAID Options | 12 Gb/sec RAID HBA supporting levels: 0, 1, 5, 6, 10, 50, 60 with 1 GB of DDR3 onboard memory with flash memory backup via embedded internal SAS-3 HBA PCIe card |
| Supported OS | • Oracle Solaris; • Oracle Linux; • Red Hat Enterprise Linux; • Microsoft Windows Server |
| PCI Slot(s) | Expansion bus: four PCIe 3.0 slots: two x16 and two x8 (one internal) slots; Supports LP-PCIe cards including Ethernet, InfiniBand, FC, FCoE, and SAS HBAs |
| LAN Socket(s) | Four onboard auto-sensing 100/1000/10000 M Base-T Ethernet ports |
| Graphics / GPU | VGA 2D graphics controller embedded with 8 MB of dedicated graphics memory |
| Resolution (Native) | Resolution: 1,600 x 1,200 x 16 bits @ 60 Hz via the rear HD15 VGA port (1,024 x 768 when viewed remotely via Oracle ILOM) |
Oracle ODA X7-2 is the most versatile two-socket server for the enterprise data center, packing the optimal balance of compute power, memory capacity, and I/O capacity into a compact and energy efficient 1U enclosure.
