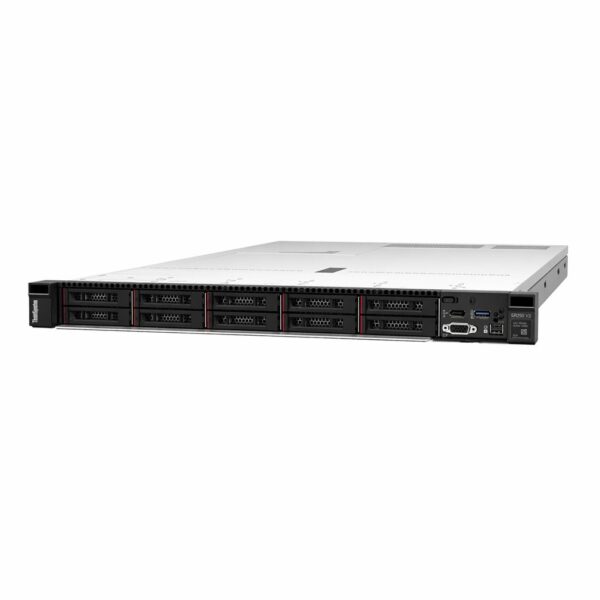

Lenovo ThinkSystem SR630 Servers

Lenovo SR630 Information
The Lenovo ThinkSystem SR630 is a 2-socket 1U rack server that is excellent for small to big businesses that want industry-leading reliability, management, and security while also maximizing performance and flexibility for future expansion. The SR630 server features the Intel Xeon Processor Scalable Family’s second generation (Xeon SP Gen 2), which provides scalable performance and storage capacity. The SR630 server supports up to two processors, up to 3 TB of memory capacity with TruDDR4 DIMMs or up to 7.5 TB of memory capacity with a combination of TruDDR4 DIMMs and Intel DC persistent memory modules (DCPMMs), up to 12x 2.5-inch or 4x 3.5-inch drive bays with an extensive selection of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot, a dedicated storage controller slot, and up to 3x PCIe slots.

Lenovo SR630 Specifications
Form factor: 1U rack-mount.

Chipset: Intel C624

Memory: there are up to 24 DIMM sockets available (12 DIMMs per processor; six memory channels per processor with two DIMMs per channel). Support for RDIMMs, LRDIMMs, and 3DS RDIMMs (1st Gen processors only). Depending on the CPU, memory speeds can reach 2933 MHz. Memory types can’t be mixed together

Ports: front: 1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port; optional 1x VGA port.. Rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port

Network interfaces: Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports: 2x or 4x 1 GbE RJ-45 ports (no 10/100 Mb support), 2x or 4x 10 GbE RJ-45 ports (no 10/100 Mb support),2x or 4x 10 GbE SFP+ ports (no 10/100 Mb support), optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or single- or dual-port 25 GbE cards with SFP28 connectors, 1x RJ-45 10/100/1000 Mb Ethernet systems management port.

Power Supply: up to two redundant hot-swap 550 W, 750 W, or 1100 W (100 – 240 V) High Efficiency Platinum, or 750 W (200 – 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only)

Dimensions: width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 750 mm (29.5 in.)



Weight: minimum configuration: 11.9 kg (26.2 lb), maximum: 18.8 kg (41.4 lb)
