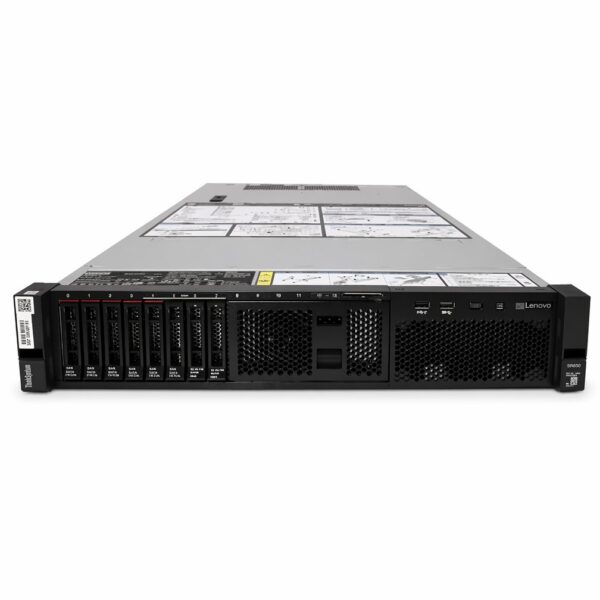

Lenovo ThinkSystem SR590 Rackmount Server

Lenovo SR590 Information
The Lenovo ThinkSystem SR590 is a 2-socket 2U rack server designed for small to midsize businesses that require industry-leading reliability, manageability, and security while balancing performance and expandability. The Intel Xeon Processor Scalable Family (Xeon SP Gen 2) is used in the SR590 server, which provides balanced performance, storage capacity, and I/O expansion. Up to two processors, 1 TB of RAM, 16x 2.5-inch or 14x 3.5-inch drive bays with a wide range of disk technologies, including NVMe SSDs, and versatile I/O expansion options with a LOM slot and up to 6x PCIe slots are all supported by the SR590 server. The SR590 server’s next-generation Lenovo XClarity Controller delivers sophisticated service processor control, monitoring, and alerting functionalities.

Lenovo SR590 Specifications
Form factor: 2U rack-mount.

Chipset: Intel C622

Memory: There are up to 16 DIMM sockets available (8 DIMMs per processor; 6 memory channels per processor with one DIMM per channel for four channels and two DIMMs per channel for two channels). RDIMMs and LRDIMMs are supported. Memory types can’t be mixed together. Depending on the CPU, memory speeds can reach 2933 MHz.

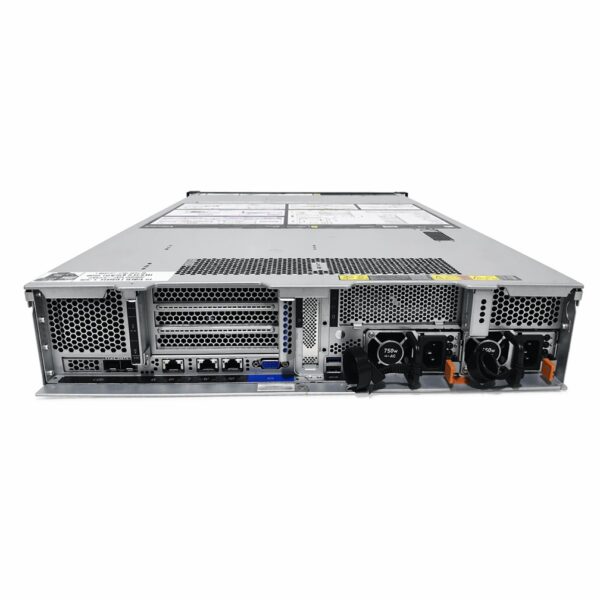

Ports: front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port. Optional 1x VGA port. Optional 1x VGA port, rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port

Network interfaces: 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support), onboard LOM slot for up to 4x 1/10 Gb Ethernet ports: 2x 1 GbE RJ-45 ports (no 10/100 Mb support), 2x 10 GbE RJ-45 ports (no 10/100 Mb support), 2x 10 GbE SFP+ ports (no 10/100 Mb support), optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors, 1x RJ-45 10/100/1000 Mb Ethernet systems management port.

Power Supply: up to two redundant hot-swap 550 W or 750 W (100 – 240 V) High Efficiency Platinum or 750 W (200 – 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).

Dimensions: width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.)

Weight: minimum configuration: 19 kg (41.9 lb), maximum: 26 kg (57.3 lb)
