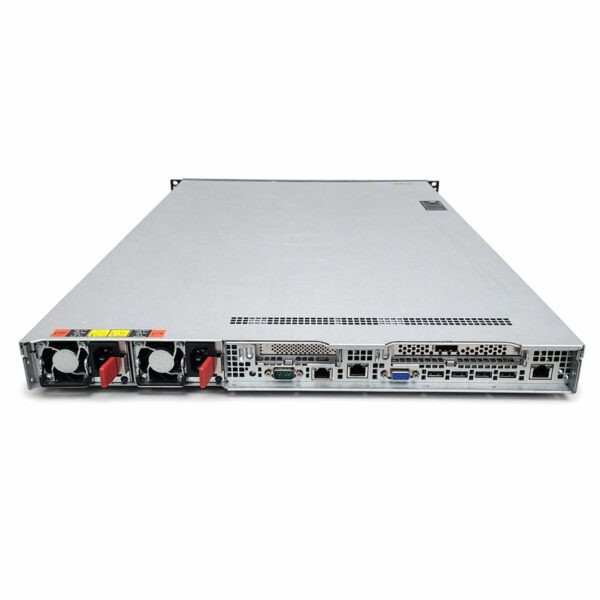

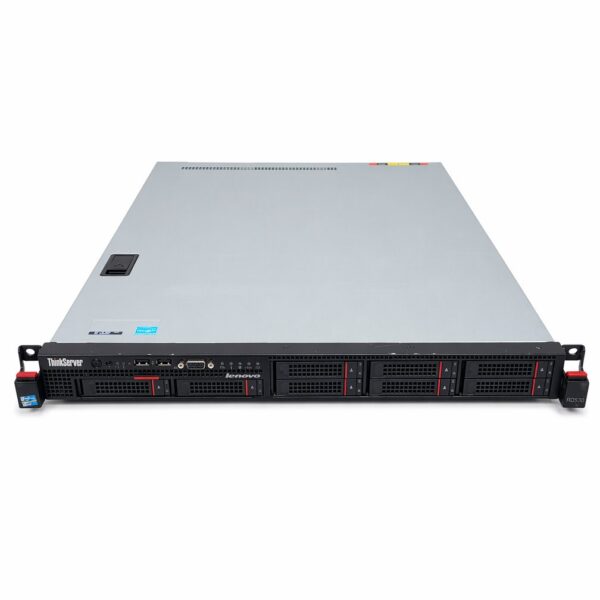

Lenovo ThinkServer RD530 Rackmount Server

Lenovo RD530 Information
The Lenovo ThinkServer RD530 is a mainstream server designed with the specs users need to support database applications as well as virtualized infrastructures. The ThinkServer RD530 runs on the Intel Xeon E5-2600 processor family and can support up to 320GB of RAM. The RD530 offers slots for up to four LFF HDDs or eight SFF SATA, SAS or SSDs, while the RD630 could support up to sixteen SFF drives. Lenovo offers the RD530 in two drive configurations; 4 x LFF configurable with 7.2K SAS and SATA drives or 8 x SFF configurable with 7.2K SATA, 10K and 15K SAS hard drives and eMLC SSDs.

Lenovo RD530 Specifications
Chipset: Intel C602

Memory: 20 DIMM sockets – up to 320GB – RDIMM and LV RDIMM DDR3-1333 Memory DIMM

Internal memory: 8 GB

Internal memory type: DDR3-SDRAM

Power: 1+1 Redundant Power – 800W (80Plus Gold), Energy Star Server 1.1 compliant

PCIe 3.0 Slots: One Full-Height/Half-Length x16 and one Half-Height/Half-Length x8

Cooling: 7 + 1 redundant fans

ThinkServer RAID 700 Adapter: Hardware SAS/SATA supports RAID 0/1/5/10/6/50/60 has 512MB cache, optional ThinkServer RAID 700 battery

ThinkServer RAID 500 Adapter: Hardware SAS/SATA supports RAID 0,1,10 Optional ThinkServer RAID 500 RAID 5 upgrade key

Thermal Design Power (TDP): 95 W

Memory types supported by processor: DDR3-SDRAM

Memory clock speeds supported by processor: 800,1066,1333,1600 MHz

Dimensions: 436mm (W) x 43.6mm (H) x 720.6mm (D)

Weight: Up to 17kg
