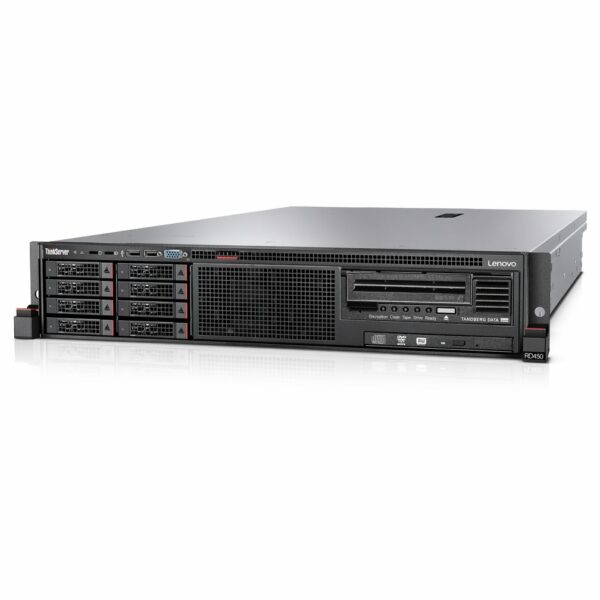

Lenovo ThinkServer RD450 Servers

Lenovo RD450 Information
The Lenovo ThinkServer RD450 is a versatile 2U two-socket server that combines great versatility and expandability, and is now available with Intel Xeon E5-2600 v4 CPUs. Because of its big, cost-effective storage capacity, this server is perfect for small-to-medium-sized organizations. The ThinkServer RD450 provides a variety of drive configurations, including support for 2.5-inch or 3.5-inch hot-swap drives. The ThinkServer RD450 has a high computing power per watt and includes energy-saving capabilities for lower costs and better performance. At 50% load, the 80 PLUS Titanium power supply units (PSUs) can achieve 96 percent efficiency.

Lenovo RD450 Specifications
Chipset: Intel C610 Series

Form factor: 2U rack

Processor: Up to two Intel Xeon E5-2600 v4 Series CPUs, with up to 105 W SKUs and up to 14 cores per CPU

Memory: Up to 16 DDR4 DIMM sockets (8 DIMMs per processor). RDIMMs and Load Reduced DIMMs (LRDIMMs) are supported. Memory types cannot be intermixed. Memory speed up to 2400 MHz

Disk drive bays: up to 24x 2.5″ hot-swap SAS/SATA HDDs/SSDs, or up to 8x 3.5″ hot-swap SAS/SATA HDDs/SSDs, or up to 8x 2.5″ easy-swap SAS/SATA HDDs

Network Interfaces: Two integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (Intel i210) for the operating system, Port 1 can be configured as shared with systems management.

Ports: Front: 2x USB 2.0 and 1x VGA port, Rear: 2x USB 3.0, 1x DB-15 VGA video, 1x RJ-45 systems management, 2x RJ-45 GbE network ports, 1x DB-9 serial port, Internal: 2x SD Card slots (supporting SDHC cards; for embedded hypervisor)

Weight: Minimum configuration: 16 kg (35.3 lb), maximum: 27 kg (59.5 lb)
