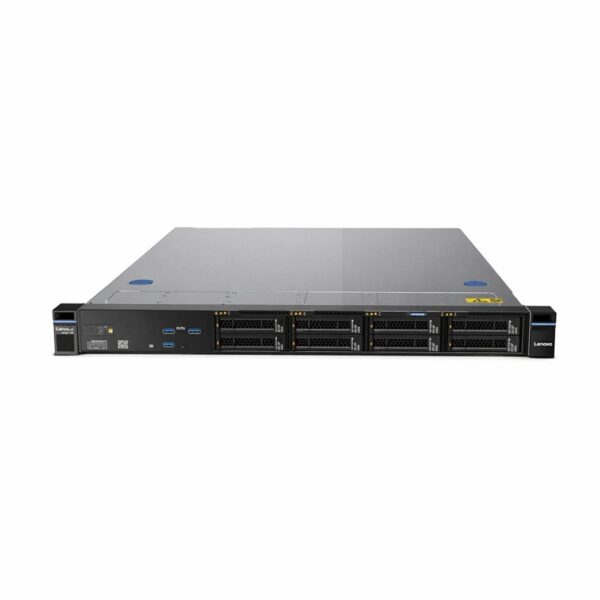

Lenovo System x3250 M6 & M5 Rack Servers

Lenovo x3250 M6 & M5 Information
The Lenovo System x3250 M6 is a single-processor server with enterprise-class management, high-availability, and security features in a 1U physical factor. The x3250 M6 comes with a variety of Intel® processors (from Celeron® to Xeon® E3-1200 v6 series), which are up to 30% quicker than the previous generation. Plus, get up to 64GB of lightning-fast, low-latency 2400MHz TruDDR4 UDIMM memory for a powerful system that can handle infrastructure and retail point-of-sale tasks. To handle the most demanding network connections, the system includes two integrated 1GbE ports as well as compatibility for up to two extra 10GbE ports. You can also choose from up to four 3.5-inch HDDs or eight 2.5-inch HDDs/solid state drives (SSDs) in simple-swap or hot-swap formats for storage flexibility and up to 40TB of space.



Lenovo x3250 M6 & M5 Specifications
Form Factor/Height/Depth: 1U / 576mm (22.7 inches)

Processor (Max)/Cache (max): Choice of one Intel® Xeon® E3-1200 v6 series, Core i3®, Pentium®, or Celeron®/up to 8MB

Memory: Up to 64GB of 2400MHz TruDDR4 ECC UDIMMs (4 slots)

Disk Bays: 4 x 3.5-inch hot-swap/simple-swap or 8 x 2.5-inch hot-swap/simple-swap

Maximum Internal Storage: 40TB 3.5-inch hot-swap SAS/SATA HDDs; 16TB 3.5-inch simple-swap SATA HDDs; 16TB 2.5-inch hot-swap/simple-swap SATA HDDs; 16TB 2.5-inch hot-swap SAS/SATA HDDs; or 12.8TB hot-swap SATA SSDs

RAID Support: Software RAID 0/1/10/5; opt. hardware RAID 0/1/10/5/6 via M1210 (6GB or 12GB) or M5200 series (6GB or 12GB)

Power Supply: One fixed 300W 80 PLUS Gold; or two hot-swap redundant 460W 80 PLUS Gold / Energy Star 2.0

Network Interface: 2 x GbE ports (1 shared with systems management); opt. single- or dual-port 10GbE adapter

Expansion Slots: 2 PCIe 3.0 (one reserved for optional M1210 RAID controller)

USB Ports/VGA Ports: Up to 2 x USB 3.0 front, 2 x USB 3.0 rear, 1 x USB 3.0 interior
