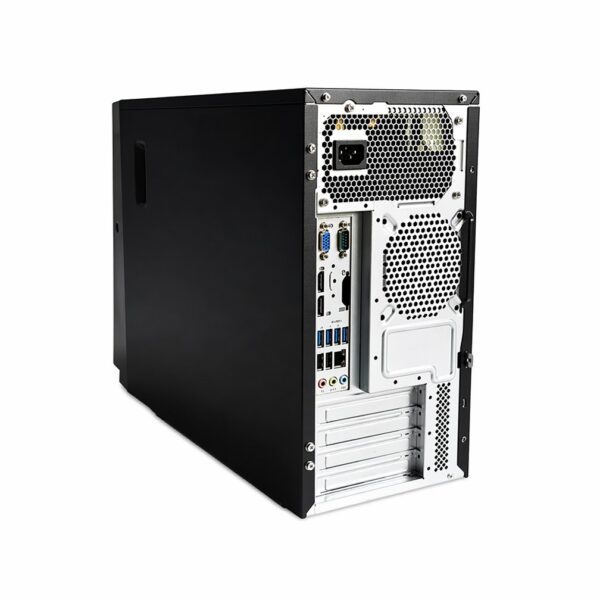

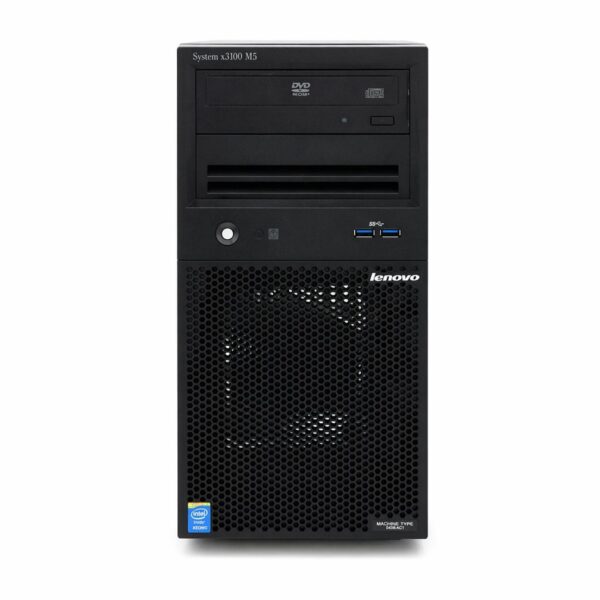

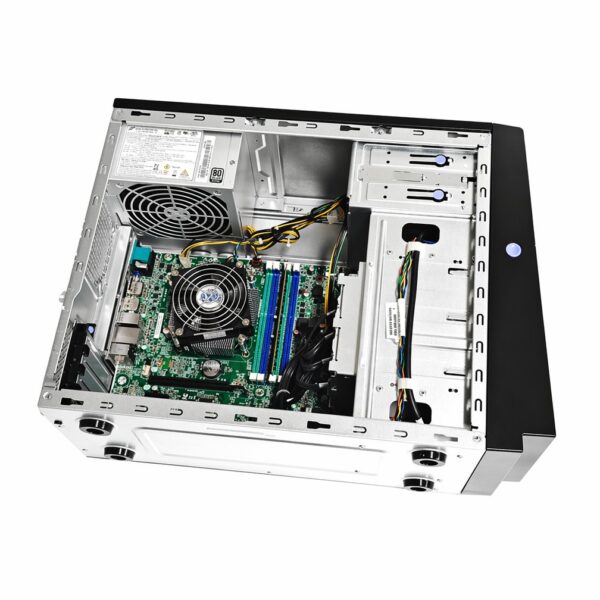

Lenovo System x3100 M5 Servers
Lenovo System x3100 M5 Servers
Lenovo x3100 M5 Information
The single-socket System x3100 M5 server, designed for small to medium-sized organizations and distributed environments, delivers business-class dependability and performance in a compact tower. The x3100 M5 provides new levels of performance to your workloads with the latest Intel® Xeon® E3-1200 CPUs, USB 3.0 for quick data transfer, and four layers of RAID for increased data security. When your needs change, you can upgrade to this efficient tower.
Lenovo x3100 M5 Specifications
Form Factor/Height: 4U/5U with tower-to-rack kit
Processor: Up to one Intel® Xeon® processor E3-1200 v3 series (quad-core), Core™ i3 series (dual-core), Pentium® series (dual-core), or Celeron® processor (dual-core)
Cache/Memory: UP to 8 MB per processor (model dependent)/Up to 32 GB via 4 slots (UDIMM)
Media Bays: Up to 2 5.25-inch half-high bays, support for DVD-ROM or multiburner, half-high SATA DVD-ROM standard in standard models
Disk Bays: Up to 4 3.5-inch or 8 2.5-inch hard disk drives (HDDs)
RAID Support: Integrated ServeRAID C100 RAID-0, -1, (RAID-5 upgrade via Feature on Demand (FoD)), optional hardware RAID-0, -1, -10 or RAID-5, -50 or RAID-6, -60
Power Supply: 1/2 300 W or 350 W fixed (4U models); or 430 W 80 PLUS® Silver certified redundant (5U models)
Hot-Swap Components: Up to 4 3.5-inch or 8 2.5-inch HDDs, 460 W hot-swap redundant PSUs
Network Interface: 2 x 1 Gbps Ethernet
Expansion Slots: Up to 4 PCIe (2 PCIe 3.0, 2 PCIe 2.0) slots (x16, x8, x8, x4 physical; x8, x8, x4, x1 electrical)
USB Ports: 2 front (USB 3.0)/4 back (USB 2.0)/2 internal
Internal Storage: Up to 24 TB
