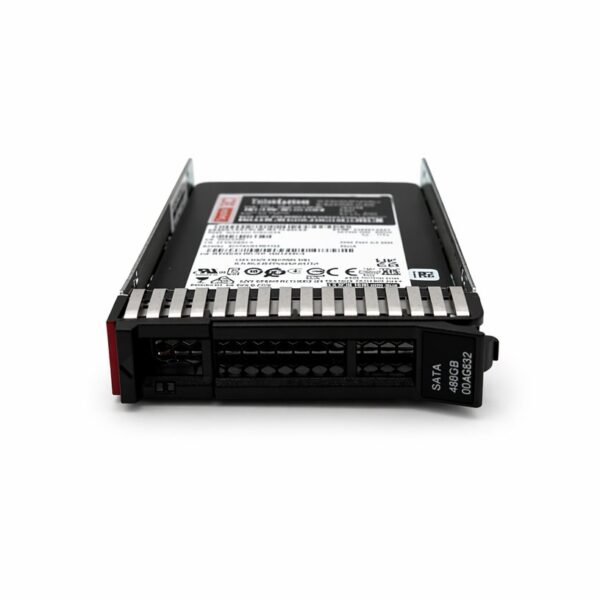

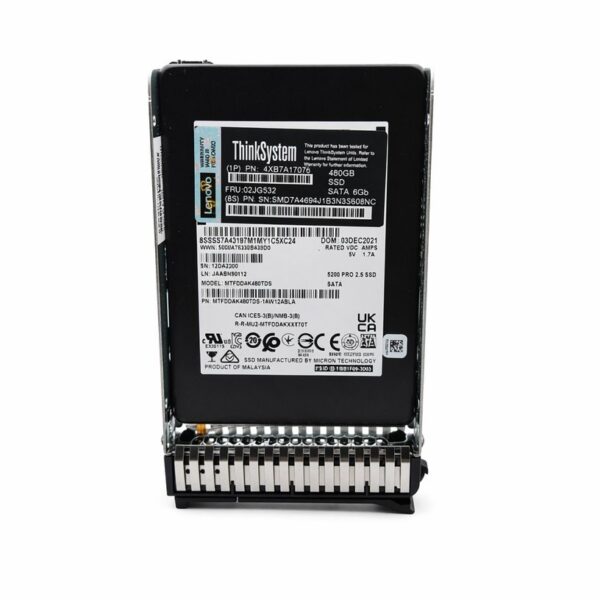

Lenovo Micron 02JG532 MTFDDAK480TDS 480GB 2.5″ SATA 6Gbps SSD ThinkSystem

Lenovo ThinkSystem – Micron 5300 PRO 480GB 2.5″ SATA 6Gb/s Enterprise Solid State Drive

Product Overview

The Lenovo 02JG532 (built on the Micron MTFDDAK480TDS model from the 5300 PRO series) is an enterprise-class 480GB SATA 6Gb/s solid-state drive tailored for Read-Intensive (RI) workloads. Utilizing Micron’s advanced 96-layer 3D TLC NAND technology, this 2.5-inch drive delivers a secure, cost-effective, and robust storage upgrade for legacy data centers. It delivers robust performance consistency, lower latencies, and high data security, maximizing infrastructure efficiency across virtualization, web serving, and media streaming.

Key Features

• Advanced 96-Layer 3D TLC NAND: Maximizes storage capacity and efficiency within a standard 2.5-inch (7mm) footprint.

• Optimized Read-Intensive Performance: Engineered to provide exceptional read throughput and high IOPS consistency for data center nearline workloads.

• Solid-State Reliability: Built-in Power Loss Protection (PLP) ensures data in flight is successfully written during power outages, preventing structural data loss.

• Enterprise Security Standards: Features TCG Enterprise and self-encrypting drive (SED) capabilities to protect sensitive corporate assets at rest.

Technical Specifications

Endurance & Reliability

• Lifetime Endurance Rating: 1,324 TBW (Terabytes Written)

• DWPD (Drive Writes Per Day): 1.5 DWPD (over a 5-year period)

• MTBF (Mean Time Between Failures): 3,000,000 hours

• UBER (Uncorrectable Bit Error Rate): less than 1 sector per 10E17 bits read

• Hardware Encryption: AES 256-bit / TCG Enterprise compliant

System Compatibility

This drive (FRU 02JG532) is fully validated and certified for Lenovo ThinkSystem servers and storage arrays supporting standard 2.5-inch hot-swap bays, including but not limited to:

• ThinkSystem Rack Servers: SR530, SR550, SR570, SR590, SR630, SR650, SR630 V2, SR650 V2

• ThinkSystem Tower Servers: ST550, ST650 V2

• ThinkSystem Blade & High-Density: SN550, SN850, SD530

• (Note: Can be deployed with standard Lenovo ThinkSystem 2.5″ hot-swap trays or as a standalone component depending on target chassis configuration).
