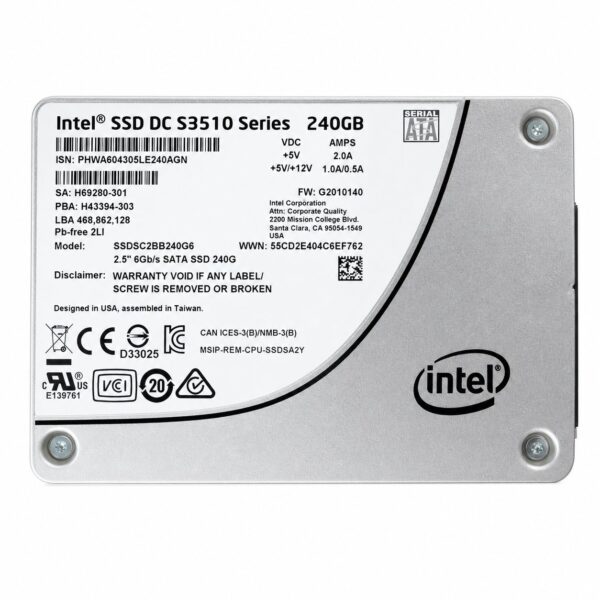

Intel SSD DC S3510 Series – 240GB SSDSC2BB240G6

Intel® SSD DC S3510 Series – 240GB

Product Overview

The Intel® SSD DC S3510 Series delivers solid performance and Power Loss Imminent (PLI) protection for cloud, data center, and enterprise server environments. Designed for read-intensive workloads, it offers high reliability, energy efficiency, and low latency.

Key Specifications

Specification Category	Details
Model Number	SSDSC2BB240G6 / SSDSC2BB240G601
Product Collection	Intel® SSD DC S3510 Series
Capacity	240 GB
Form Factor	2.5-inch, 7mm
Interface	SATA 3.0 (6Gb/s)
NAND Flash Memory	16nm Multi-Level Cell (MLC)

Performance Specifications

• Sequential Read Speed: Up to 500 MB/s

• Sequential Write Speed: Up to 260 MB/s

• Random Read (8GB Span): Up to 65,000 IOPS (4KB Random)

• Random Write (8GB Span): Up to 15,200 IOPS (4KB Random)

• Latency Read / Write: 55 µs / 65 µs

Reliability & Endurance

• Endurance Rating (Lifetime Writes): ~140 TBW (Terabytes Written) / 0.3 DWPD (Drive Writes Per Day over 5 years)

• Mean Time Between Failures (MTBF): 2.0 Million Hours

• Uncorrectable Bit Error Rate (UBER): 1 sector per $10^{17}$ bits read

• Enhanced Power Loss Data Protection: Yes (Hardware-based capacitors)

• Hardware Encryption: AES 256-bit

Power & Physical Characteristics

• Active Power Consumption: ~2.6 W

• Idle Power Consumption: ~0.6 W

• Operating Temperature: $0^{\circ}\text{C}$ to $70^{\circ}\text{C}$

• Vibration – Operating / Non-Operating: 2.17 GRMS / 3.13 GRMS

• Shock – Operating / Non-Operating: 1,000 G (0.5 ms) / 1,000 G (0.5 ms)
