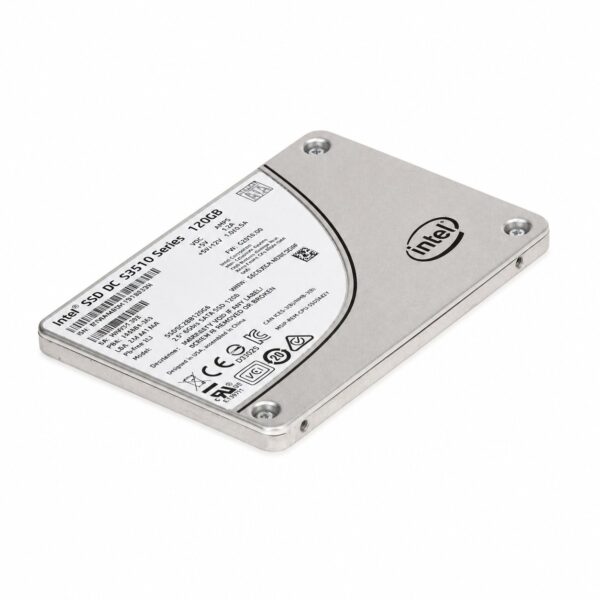

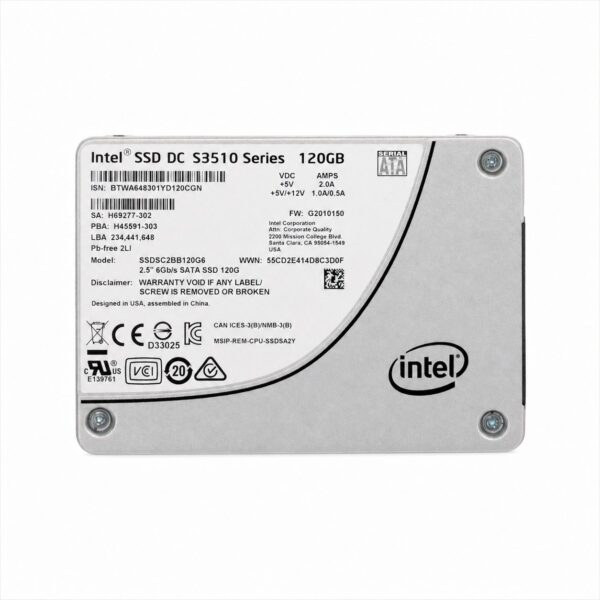

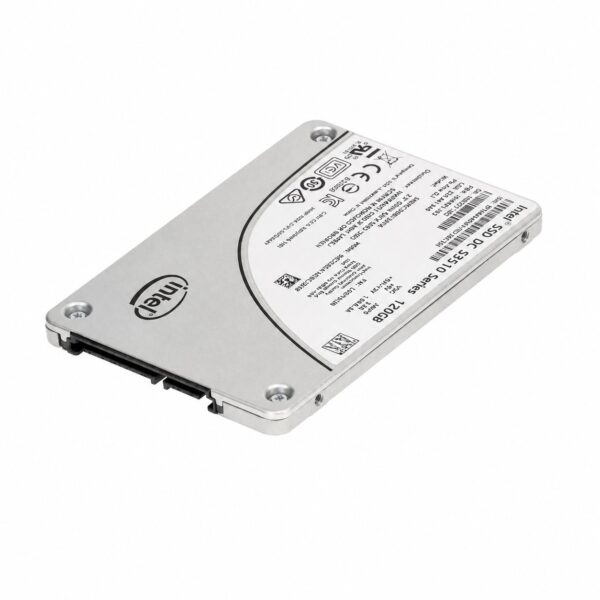

Intel SSD DC S3510 Series (120GB) SSDSC2BB120G6

Intel® SSD DC S3510 Series (120GB)

Overview

The Intel® SSD DC S3510 Series is a data center-grade Solid-State Drive designed for cloud computing, web hosting, and read-intensive enterprise applications. Built with 16nm Multi-Level Cell (MLC) NAND flash technology, it offers consistent performance, power efficiency, and end-to-end data protection.

Core Specifications

Performance Specs

Reliability & Endurance

• Endurance Rating: ~70 TBW (Total Bytes Written) / 0.3 Drive Writes Per Day (DWPD) over 5 years.

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): 1 sector per $10^{17}$ bits read

• Power Loss Data Protection: Enhanced Power Loss Data Protection (integrated capacitors buffer in-flight data during sudden power failure)

Power Consumption

• Active Power (Typical): ~2.3 W

• Idle Power: ~0.6 W

• Supply Voltage: $5\,\text{V} \pm 5\%$

Environmental & Physical Parameters

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Non-Operating Temperature: $-55^\circ\text{C}$ to $95^\circ\text{C}$

• Vibration (Operating): 2.17 GRMS ($5\text{–}700\,\text{Hz}$)

• Shock (Operating): 1000 G / 0.5 ms

• Weight: Up to 68 grams
