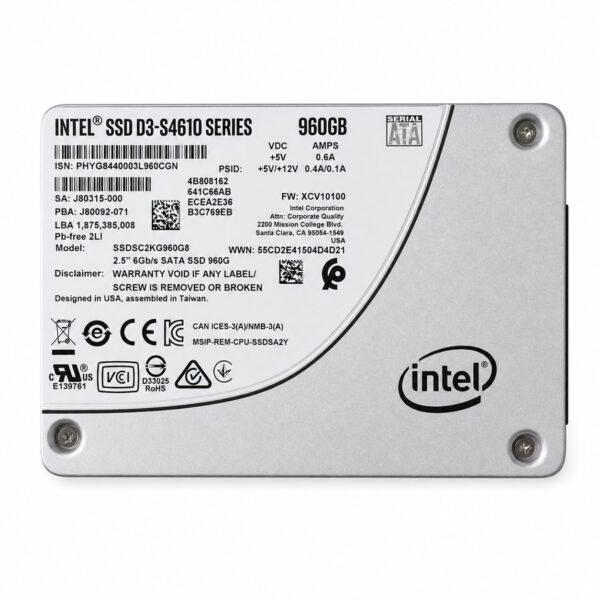

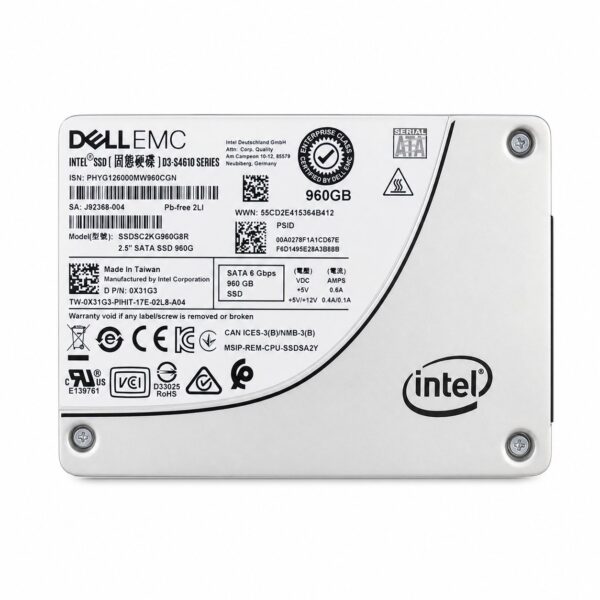

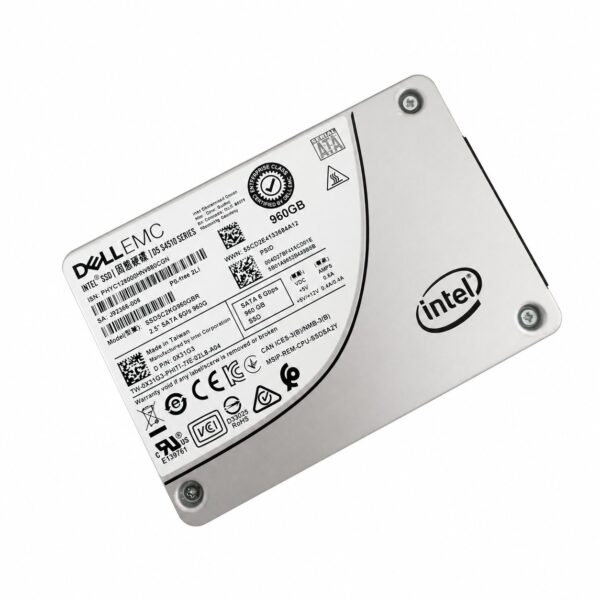

Intel SSD D3-S4610 Series SSDSC2KG960G8
Intel® SSD D3-S4610 Series SSDSC2KG960G8 / SSDSC2KG960G801
Enterprise stock · tested · export documentation available
Essentials
| Parameter | Specification |
| Product Collection | Intel® SSD D3-S4610 Series |
| Model Number (MPN) | SSDSC2KG960G8 / SSDSC2KG960G801 |
| Code Name | Youngsville Refresh |
| Capacity | 960 GB |
| Form Factor | 2.5″ 7mm |
| Interface | SATA 3.0 (6Gb/s) |
| NAND Flash Type | 3D TLC (64-Layer) |
| Target Workload | Enterprise / Server (Mainstream Mixed-Use) |
Performance Specifications
| Metric | Rating |
| Sequential Read (up to) | 560 MB/s |
| Sequential Write (up to) | 510 MB/s |
| Random Read (4KB, 100% Span) | 96,000 IOPS |
| Random Write (4KB, 100% Span) | 51,000 IOPS |
| Read Latency (Typical) | 36 µs |
| Write Latency (Typical) | 37 µs |
Reliability & Endurance
| Feature | Rating |
| Endurance Rating (Lifetime Writes) | 5.8 PBW / ~6.0 PBW |
| Drive Writes Per Day (DWPD) | 3.0 – 3.4 DWPD (5-year rating) |
| Mean Time Between Failures (MTBF) | 2,000,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | $< 1$ sector per $10^{17}$ bits read |
Power & Environmental
| Property | Value |
| Active Power Consumption | Up to 3.0 W |
| Idle Power Consumption | 1.0 W |
| Operating Temperature | 0°C to 70°C |
| Vibration (Operating) | 2.17 GRMS (5–700 Hz) |
| Vibration (Non-Operating) | 3.13 GRMS (5–800 Hz) |
| Shock (Operating & Non-Operating) | 1000 G / 0.5 ms |
