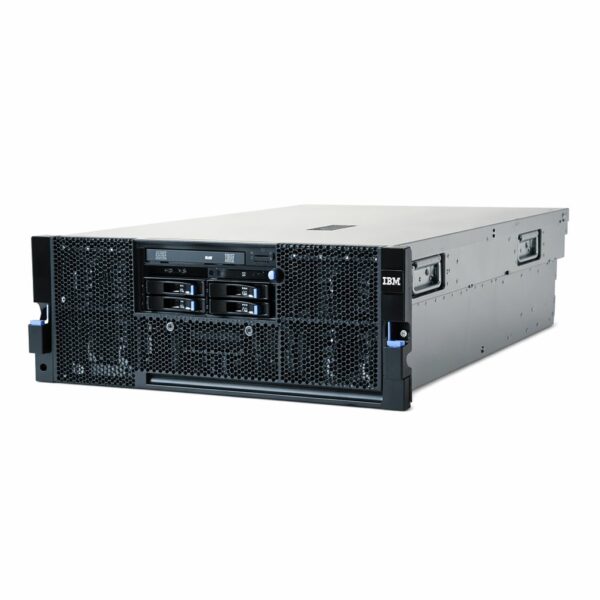

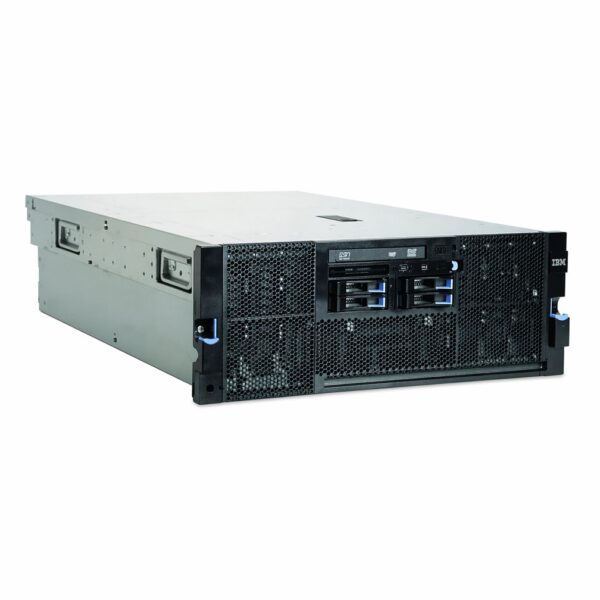

IBM System x3950 M2 Rack Servers

IBM x3950 M2 Information
The IBM System x3950 M2 servers are equipped with Intel Xeon MP quad-core and six-core processors that run at up to 2.66 GHz and have 9 MB of L2 cache and 16 MB of L3 cache. The Enterprise X-Architecture® x3950 M2 server is the fourth generation. It enables maximum performance for databases, enterprise applications, and virtualized environments by combining innovation with better dependability and availability features.

IBM x3950 M2 Specifications
Processor:

Quad-Core Intel Xeon(tm) MP up to 2.93 GHz with 2 x 4 MB L2 cache

Two quad-core Xeon MP processors

Two additional sockets for SMP Xeon MP processor upgrades

Memory:

Up to 256 GB of high-speed, lower-power, PC2-5300 ECC double data rate 2 (DDR2) SDRAM system per chassis memory with the ability to scale to 1 TB.

Active Memory(tm) with hot-swap support: Memory ProteXion(tm), Chipkill memory mirroring, and hot-swap and hot-add memory, for high performance with 256 MB XceL4v cache per chassis

Up to 32 DIMM slots per chassis delivering up to 256 GB of high-speed PC2-5300 double data rate (DDR2) memory per chassis; expandable to 1 TB in a 16-socket (64-core) complex

Hard drive (HD):

Serial Attached SCSI (SAS) controller

SAS 2.5-inch hot-swap hard drives for the latest in high-performance disk technology; 584 GB total capacity (using four 146 GB SAS Hot-Swap hard drives) with 146 GB hard drive and standard RAID card

RAID 0 and 1 standard. The optional ServeRAID-MR10k SAS/SATA Controller provides additional RAID levels

Slots: Seven 2.5 Gb PCIE x8 I/O slots (two are hot-plug) per chassis with ability to scale to 28 slots in 4 chassis configuration

Bays: Four 2.5-inch hot-swap bays for flexible installation of hard drives, supporting up to 584 GB internal data storage

Networking: Integrated Broadcom 5709 Dual-port 10/100/1000 Gigabit Ethernet

Power supply: Two 1440-watt, voltage sensing, rear access, hot-swap power supplies
