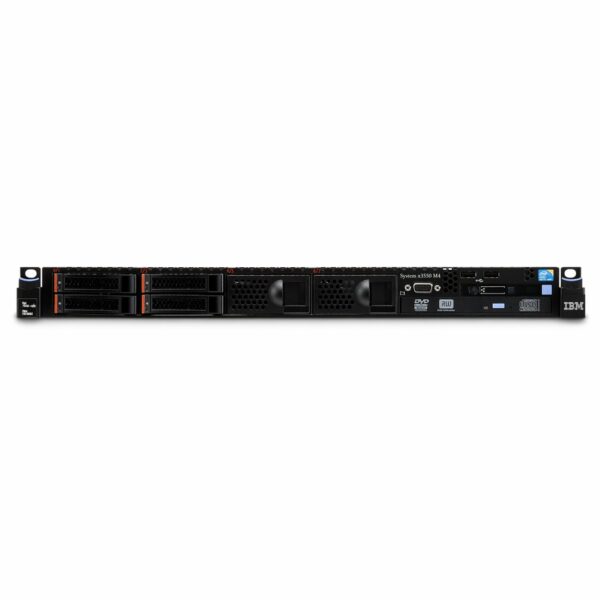

IBM System x3550 M4 Rack Mount Server
IBM System x3550 M4 Rack Mount Server
| Part No. | x3550m4 |
|---|---|
| End of Life? | No |
| Rack Units | 1 U |
| Height | 43 |
| Width | 429 |
| Depth | 734 |
| CPU Socket(s) | Up to two 12-core Intel Xeon E5-2600 v2 series processors |
| Compatible CPU(s) | Intel Xeon E5-2603 v2 4C 1.8GHz 10MB Cache 1333MHz 80W; Intel Xeon E5-2609 v2 4C 2.5GHz 10MB Cache 1333MHz 80W; Intel Xeon E5-2620 v2 6C 2.1GHz 15MB Cache 1600MHz 80W; Intel Xeon E5-2628L v2 8C 1.9GHz 20MB Cache 1600MHz 70W; Intel Xeon E5-2630 v2 6C 2.6GHz 15MB Cache 1600MHz 80W; Intel Xeon E5-2630L v2 6C 2.4GHz 15MB Cache 1600MHz 60W; Intel Xeon E5-2637 v2 4C 3.5GHz 15MB Cache 1866MHz 130W; Intel Xeon E5-2640 v2 8C 2.0GHz 20MB Cache 1600MHz 95W; Intel Xeon E5-2643 v2 6C 3.5GHz 25MB Cache 1866MHz 130W; Intel Xeon E5-2648L v2 10C 1.9GHz 25MB Cache 1866MHz 70W; Intel Xeon E5-2650 v2 8C 2.6GHz 20MB Cache 1866MHz 95W; Intel Xeon E5-2650L v2 10C 1.7GHz 25MB Cache 1600MHz 70W; Intel Xeon E5-2660 v2 10C 2.2GHz 25MB Cache 1866MHz 95W; Intel Xeon E5-2667 v2 8C 3.3GHz 25MB Cache 1866MHz 130W; Intel Xeon E5-2670 v2 10C 2.5GHz 25MB Cache 1866MHz 115W; Intel Xeon E5-2680 v2 10C 2.8GHz 25MB Cache 1866MHz 115W; Intel Xeon E5-2690 v2 10C 3.0GHz 25MB Cache 1866MHz 130W; Intel Xeon E5-2695 v2 12C 2.4GHz 30MB Cache 1866MHz 115W; Intel Xeon E5-2697 v2 12C 2.7GHz 30MB Cache 1866MHz 130W; Intel Xeon E5-2603 4C 1.8GHz 10MB 1066MHz 80W; Intel Xeon E5-2609 4C 2.4GHz 10MB 1066MHz 80W; Intel Xeon E5-2620 6C 2.0GHz 15MB 1333MHz 95W; Intel Xeon E5-2630 6C 2.3GHz 15MB 1333MHz 95W; Intel Xeon E5-2630L 6C 2.0GHz 15MB 1333MHz 60W; Intel Xeon E5-2637 2C 3.0GHz 5MB 1600MHz 80W; Intel Xeon E5-2640 6C 2.5GHz 15MB 1333MHz 95W; Intel Xeon E5-2643 4C 3.3GHz 10MB 1600MHz 130W; Intel Xeon E5-2648L 8C 1.8GHz 20MB 1600MHz 70W; Intel Xeon E5-2650 8C 2.0GHz 20MB 1600MHz 95W; Intel Xeon E5-2650L 8C 1.8GHz 20MB 1600MHz 70W; Intel Xeon E5-2658 8C 2.1GHz 20MB 1600MHz 95W; Intel Xeon E5-2660 8C 2.2GHz 20MB 1600MHz 95W; Intel Xeon E5-2665 8C 2.4GHz 20MB 1600MHz 115W; Intel Xeon E5-2667 6C 2.9GHz 15MB 1600MHz 130W; Intel Xeon E5-2670 8C 2.6GHz 20MB 1600MHz 115W; Intel Xeon E5-2680 8C 2.7GHz 20MB 1600MHz 130W; Intel Xeon E5-2690 8C 2.9GHz 20MB 1600MHz 135W |
| Max CPU Clk Spd | Up to 3.5 GHz |
| CPU Cache | 5, 10, 15, 20, 25 or 30 MB per CPU |
| Max # Core(s) | 2, 4, 6, 8, 10 or 12 per CPU |
| Memory Slot(s) | Up to 24 DIMM sockets (12 DIMMs per processor). |
| Memory Capacity | 768 GB |
| Memory Expansion | E5-2600 v2: With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors With LRDIMMs (support is planned for later in 2013): Up to 768 GB with 24x 32 GB LRDIMMs and two processors E5-2600: With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors With UDIMMs: Up to 64 GB with 16x 4 GB UDIMMs and two processors With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors |
| Drive Bays | Up to eight 2.5″ hot-swap SAS/SATA HDDs, or up to three 3.5″ hot-swap SAS/SATA HDDs, or up to three 3.5″ Simple Swap SATA HDDs. |
| Capacity | Up to 7.2 TB with 900 GB 2.5″ SAS HDDs (E5-2600 v2), or up to 9.6 TB with 1.2 TB 2.5″ SAS HDDs (E5-2600), or up to 8 TB with 1 TB 2.5″ NL SAS/SATA HDDs, or up to 12.8 TB with 1.6 TB 2.5″ SAS SSDs, or up to 12 TB with 4 TB 3.5″ NL SAS/SATA HDDs. Intermix o |
| HDD Suitability | 2.5″ NL SATA Hot-Swap HDDs; 2.5″ NL SAS Hot-Swap HDDs; 2.5″ SAS Hot-Swap HDDs; 3.5″ NL SAS Hot-Swap HDDs; 3.5″ NL SATA Hot-swap HDDs; 3.5″ NL SATA Simple-Swap HDDs; |
| RAID Controller | ServeRAID H1110, M1115, M1100, M5110, or M5100 |
| RAID Options | 6 Gb SAS/SATA: RAID 0, 1, 10 with H1110, M1115 or M5110. Optional upgrades to RAID 5, 50 available for M1115. Optional upgrades to RAID 5, 50 are available for M5110 (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 are available for M5110 with 512 MB or 1 GB cache upgrades.
12 Gb SAS/SATA (support is planned for later in 2013): RAID 0, 1, 10 with optional M5210. Optional upgrades to RAID 5, 50 are available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 are available for M5210 with 1 GB or 2 GB cache upgrades. |
| Supported OS | Microsoft Windows Server 2012 R2 (support is planned for earlier in 2014), 2012, 2008 R2 and 2008, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4.1 and VMware ESXi 4.1 embedded hypervisor (E5-2600 only), VMware vSphere 5. |
| USB Port(s) | 2 (three for 3.5″ model) front/4 back/1 internal |
| PCI Slot(s) | Two slots, depending on the riser cards installed. The slots are as follows (all PCIe slots are PCIe 3.0, all PCI-X slots are 64 bit/133 MHz): Slot 1: PCIe x16; low profile, half-length Slot 2: PCIe x8, opt. PCI-X or PCIe x16; full-height/half-length (PCIe x16 req. 2nd CPU) Additional dedicated slot for ServeRAID adapter. |
| LAN Socket(s) | Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two integrated 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume a PCIe slot). |
| Graphics / GPU | Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600×1200 at 75 Hz with 16 M colors. |
| Standard | Three-year customer-replaceable unit and onsite limited warranty with 9×5/NBD. |
| Optional | Optional service upgrades are available through IBM ServicePacs®: 4-hour or 2-hour response time, 8 hours fix time, one-year or two-year warranty extension, remote technical support for IBM hardware and selected IBM and third-party (Microsoft, Linux, VMware) software. |
