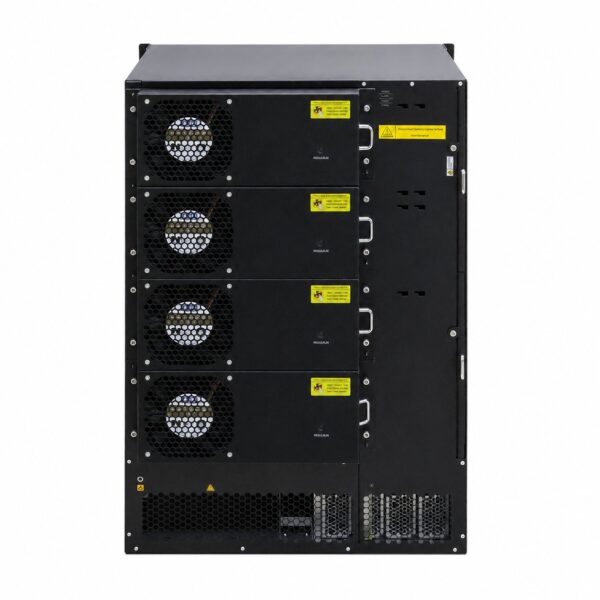

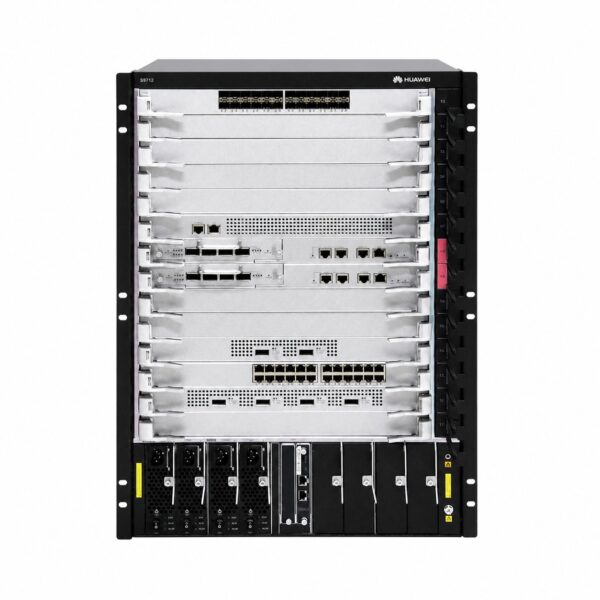

Huawei CloudEngine S7712 – Product Documentation

Name: Huawei CloudEngine S7712 - SunSpike
SKU: S7712

Product Overview

The Huawei CloudEngine S7712 is a high-density modular chassis switch within the CloudEngine S7700 series, designed for large-scale enterprise campus networks, data centers, and metropolitan area networks. The S7712 chassis offers 14 total slots, comprising 2 main control unit (MPU) slots and 12 line processing unit (LPU) slots, making it the highest-capacity model in the S7700 series.

The switch features a modular architecture with dual MPU redundancy, hot-swappable power supplies and fan modules, and support for Power over Ethernet (PoE++). It delivers high-density 10GE, 40GE, and 100GE connectivity, with a maximum port density of up to 576×10GE, 144×40GE, or 72×100GE ports per chassis.

Key capabilities include VXLAN with BGP-EVPN for virtual network fabrics, MACsec hop-by-hop encryption for enhanced security, CSS (Cluster Switch System) hardware clustering, and native wireless access controller (AC) functionality supporting wired and wireless convergence. The switch is powered by Huawei’s programmable Ethernet Network Processor (ENP) chips, enabling flexible service provisioning and support for MPLS VPN, H-QoS, hardware-assisted traffic analysis, and fast fault detection (BFD/HSR).

With its robust switching capacity, extensive port density, and advanced features such as iPCA (Packet Conservation Algorithm for Internet) quality awareness and unified user management, the CloudEngine S7712 is ideally suited for campus core/aggregation layers, serving as a central aggregation point for multiple S7706 or S7703 devices.

Specifications

Category	Parameter	Specification
Chassis & Slots	Total Slots	14
	MPU (Main Control Unit) Slots	2
	LPU (Line Processing Unit) Slots	12
	Fan Slots	4
	System Power Supply Slots	4
	PoE Power Supply Slots	4
	Chassis Height	12U
Switching Capacity	Switching Capacity	4.64 Tbps
	Forwarding Performance	3,480 Mpps
Port Density (Max)	10GE Ports	Up to 576×10GE
	40GE Ports	Up to 144×40GE
	100GE Ports	Up to 72×100GE
System Memory & Storage	System Memory	16 GB DRAM
	Storage	2 GB NAND Flash
	System Buffer	8 MB
Physical Specifications	Width × Depth × Height	442 × 585 × 663.9 mm
Power	Power Supply Type	AC or DC
	Maximum Power Consumption	4,200 W
Environmental	Operating Temperature	0°C to 45°C (up to 1,800 meters above sea level)
Key Features & Protocols	Virtualization	VXLAN, BGP-EVPN
	Clustering	CSS (Cluster Switch System), SVF (Super Virtual Fabric)
	Security	MACsec encryption, NAC (802.1x, Portal, MAC, DHCP), TPM-trusted boot, DoS protection
	Routing	IPv4/IPv6 static routes, RIP, OSPF, IS-IS, BGP4/BGP4+
	High Availability	Redundant MPUs, power modules, CMUs, and fan trays
	Quality of Service	H-QoS, multicast priority queues
	Operations & Management	Hardware OAM (IEEE 802.1ag, Y.1731), BFD, iPCA
	Energy Efficiency	IEEE 802.3az (Energy-Efficient Ethernet)
