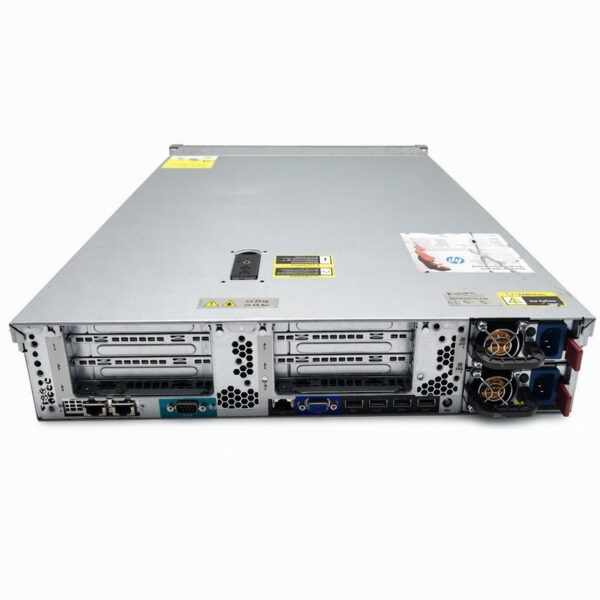

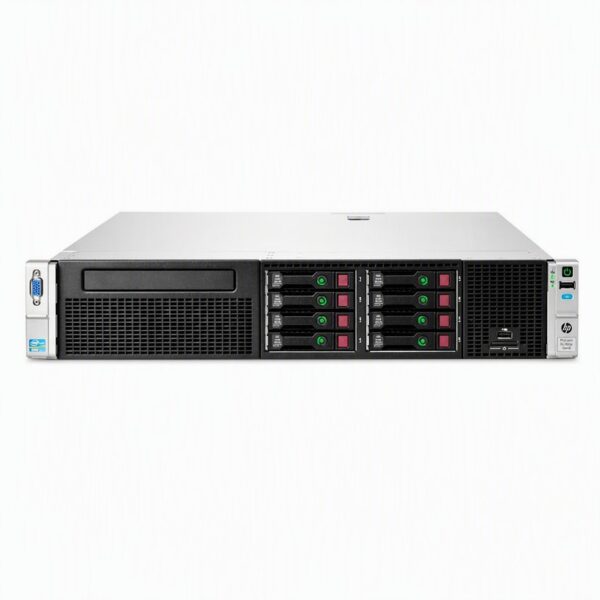

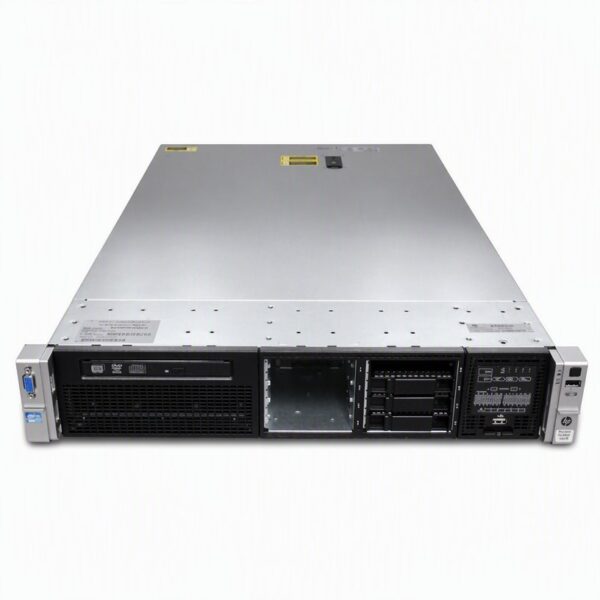

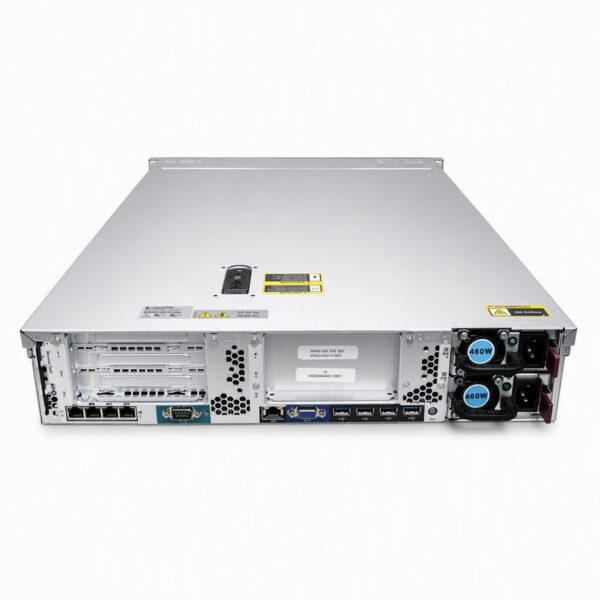

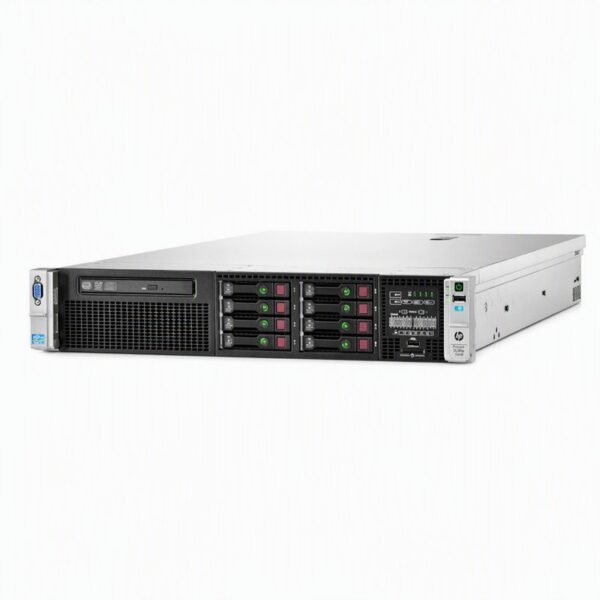

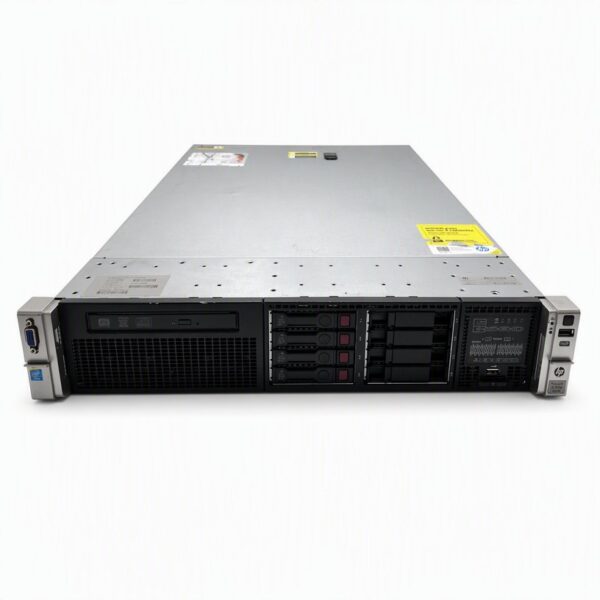

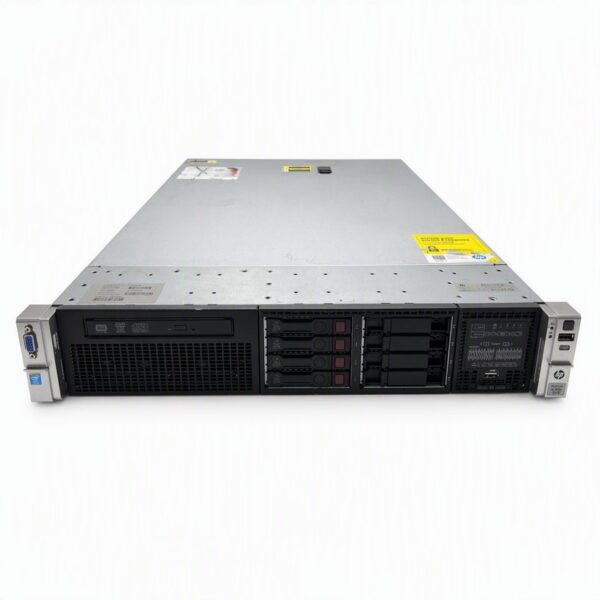

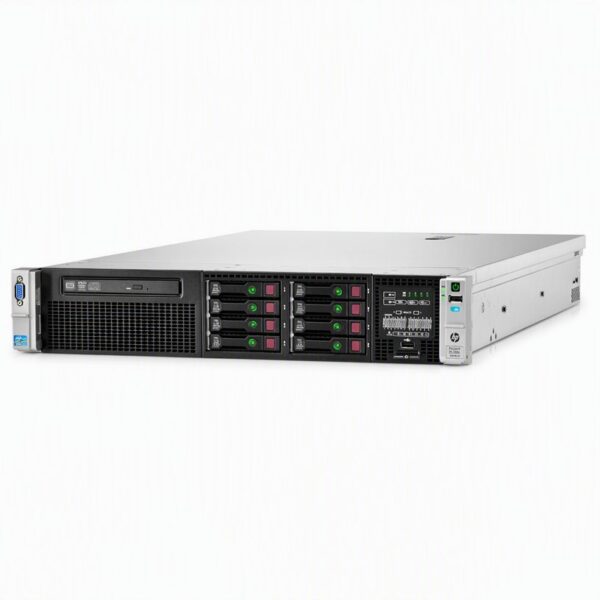

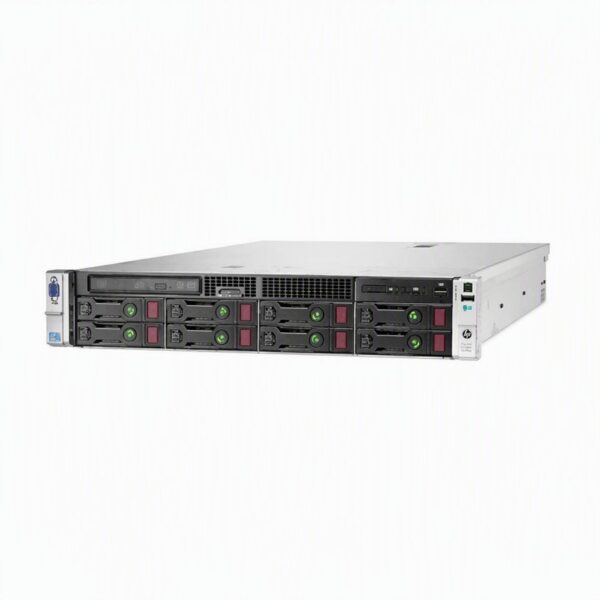

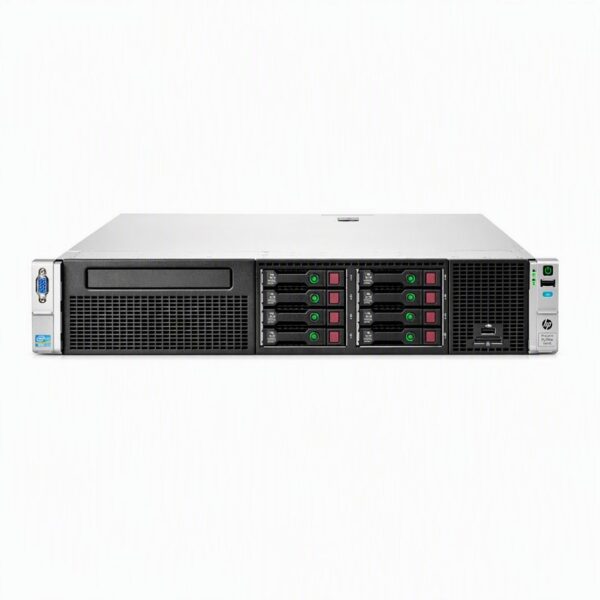

HPE ProLiant DL380p Gen8 2U Rack Mount

Technical Specifications Overview

Key Hardware Components

1. Processor & Chipset Architecture

• Supported CPUs: Intel Xeon E5-2600 v1 / E5-2600 v2 series

• Core Count: 4, 6, 8, 10, or 12 Cores per processor

• Max Thermal Design Power (TDP): Up to 130W per socket

• Interconnect: Intel QuickPath Interconnect (QPI) up to 8.0 GT/s

2. Memory Configurations (HP SmartMemory)

• Supported Types: DDR3 Registered (RDIMM), Unbuffered (UDIMM), and Load Reduced (LRDIMM)

• Max Capacities:

  • LRDIMM: Up to 768 GB ($24 \times 32\text{ GB}$) @ 1866 MHz

  • RDIMM: Up to 384 GB ($24 \times 16\text{ GB}$) @ 1866 MHz

  • UDIMM: Up to 128 GB ($16 \times 8\text{ GB}$) @ 1866 MHz

3. Drive Bay Options & Internal Storage

• 8 SFF Configuration: 8 Small Form Factor SAS/SATA/SSD drive bays (Expandable up to 16 or 25 SFF)

• 12 LFF Configuration: 12 Large Form Factor SAS/SATA drive bays

• 25 SFF Configuration: High-density 25 Small Form Factor drive bays

• Storage Options:

  • Hot-Plug SFF SAS/SATA: Max 50 TB ($25 \times 2\text{ TB}$)

  • Hot-Plug LFF SAS/SATA: Max 144 TB ($12 \times 12\text{ TB}$)

  • Hot-Plug SFF SSD: Max 96 TB ($25 \times 3.84\text{ TB}$)

4. System Interfaces & External Ports

• Video Ports: 2 (1 Front, 1 Rear)

• USB 2.0 Ports: Up to 7 total (2 Front, 4 Rear, 1 Internal)

• Network Ports: 4 x 1GbE or 2 x 10GbE via FlexibleLOM module

• Dedicated iLO Management Port: 1 x 1GbE Dedicated RJ-45

• SD Card Slot: 1 Internal MicroSD slot for hypervisor booting

Physical Dimensions & Environmental

• Dimensions ($H \times W \times D$): $3.44 \text{ in} \times 17.45 \text{ in} \times 27.5 \text{ in}$ ($8.74 \text{ cm} \times 44.55 \text{ cm} \times 69.85 \text{ cm}$)

• Weight:

  • Minimum (Empty): 41.0 lbs (18.59 kg)

  • Maximum (Fully Loaded): 60.0 lbs (27.22 kg)

• Supported Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi, Canonical Ubuntu
