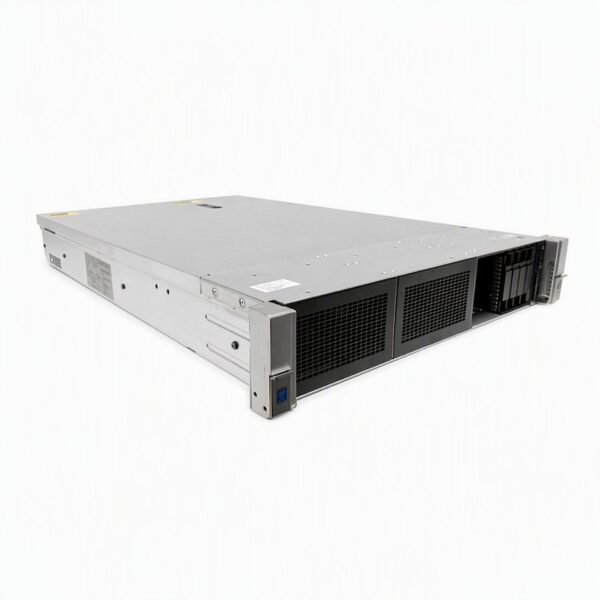

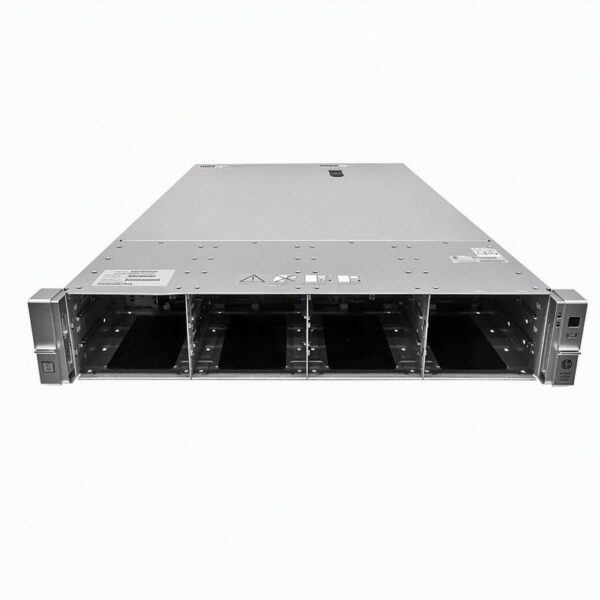

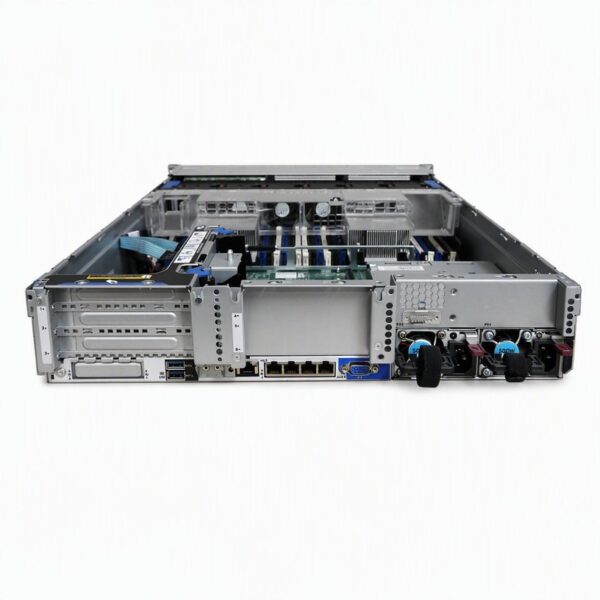

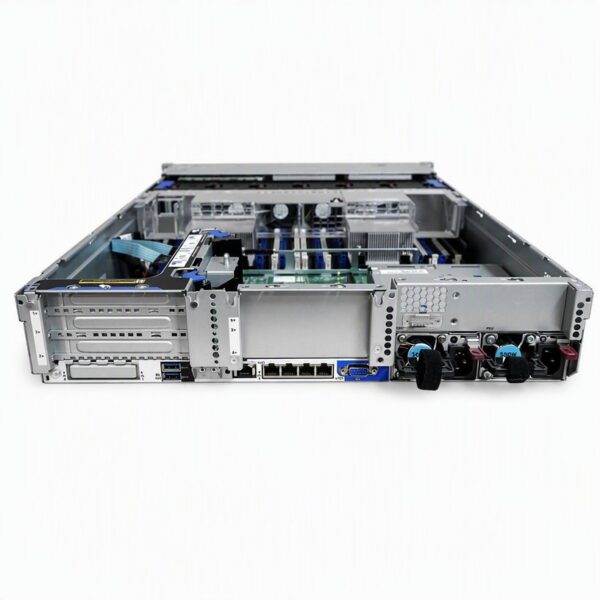

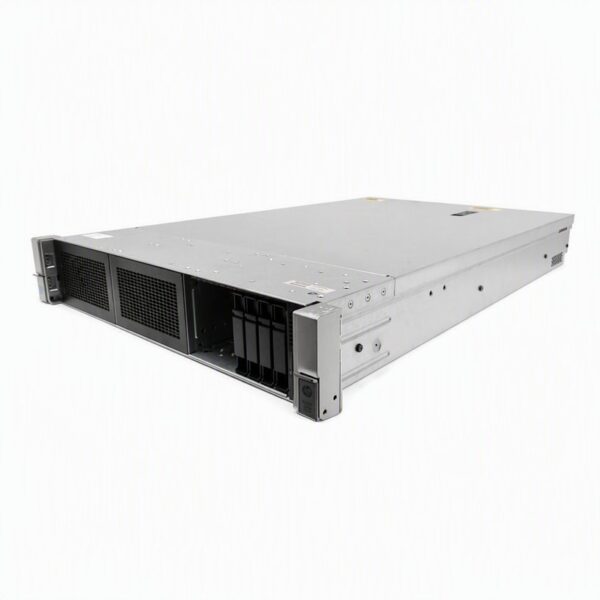

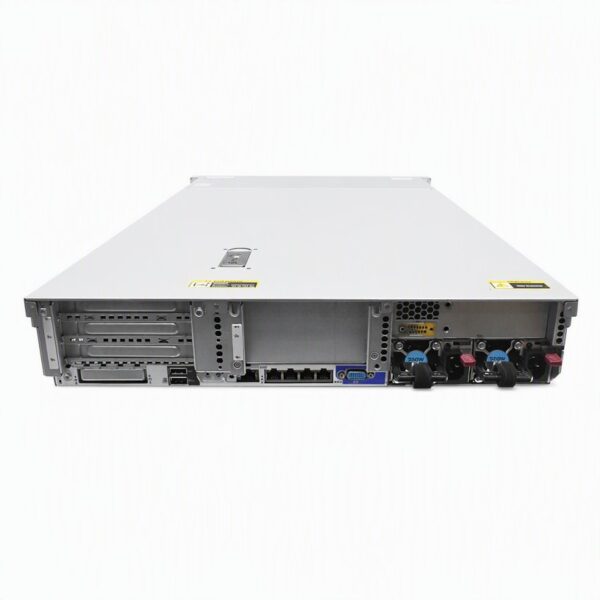

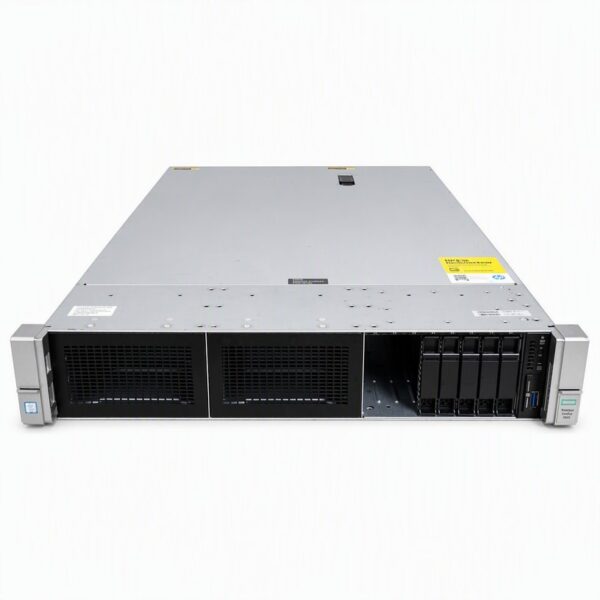

Name: HPE ProLiant DL380 Gen9 Server 2U Rack - SunSpike
SKU: DL380Gen9

The HPE ProLiant DL380 Gen9 Server is a industry-leading 2U 2-socket rack server designed to deliver high performance, expandability, and reliability for enterprise workloads, virtualization, database management, and high-performance computing (HPC).

Technical Specifications

Feature	Specification
Form Factor	2U Rack
Processor Family	Intel® Xeon® E5-2600 v3 / E5-2600 v4 Series
Processor Sockets	2
Max Cores	Up to 22 Cores per processor (Up to 44 total cores per server)
Memory Slots	24 DIMM slots (12 slots per processor, 4 channels per processor, 3 DIMMs per channel)
Memory Type	DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) SmartMemory
Max Memory Capacity	Up to 3.0 TB (24 x 128GB LRDIMM @ 2400MHz)
Internal Storage	• SFF: 8, 16, or 24 SFF SAS/SATA/SSD • LFF: 4 or 12 LFF SAS/SATA/SSD • NVMe: Up to 6 PCIe NVMe SSDs (via optional bay)
Storage Controllers	• Base: HPE Dynamic Smart Array B140i (SATA only) • Performance: HPE Smart Array P440ar/2GB or P840/4GB SAS (12Gb/s)
Network Controller	HPE Embedded 1Gb Ethernet 4-port 331i Adapter (plus optional FlexibleLOM for 10GbE / 25GbE)
Expansion Slots	Up to 6 PCIe 3.0 expansion slots (requires dual processors and secondary riser)
Remote Management	HPE iLO 4 (Integrated Lights-Out 4), HPE Intelligent Provisioning, HPE OneView
Power Supply	HPE 500W, 800W, or 1400W Flex Slot Platinum / Titanium Hot Plug Power Supplies
System Fans	Hot-plug redundant fans (4 fans single-processor, 6 fans dual-processor)

Key Features & Capabilities

Workload Performance: Supports Intel Xeon E5-2600 v4 processors delivering up to a 21% performance increase over v3 processors.
Energy Efficiency: HPE Flex Slot Power Supplies achieve up to 96% efficiency (Titanium), reducing data center operational costs.
Extended Ambient Temperature: Supports ambient operating temperatures up to 45°C (113°F) with HPE Extended Ambient Operating Support (ASHRAE A3 and A4 compliant).
System Management: HPE iLO 4 enables complete remote lifecycle management, monitoring, and firmware updates without requiring agent software on the OS.

Physical Dimensions & Weight

Dimensions (H x W x D): 8.74 cm x 44.55 cm x 67.94 cm (3.44 in x 17.54 in x 26.75 in) for SFF chassis
Maximum Weight: 23.6 kg (51.5 lb) for fully configured SFF model
