Executive Summary

Form Factor: 1U Rack-mount server chassis.
Processor Architecture: Single-socket Intel Xeon E3-1200 v2 series, Core i3, or Pentium processors.
Memory Capacity: 4 DIMM slots supporting up to 32 GB DDR3 Unbuffered ECC (UDIMM) memory.
Embedded Management: HPE Integrated Lights-Out 4 (iLO 4) with Active Health System.
Energy Efficiency: Optional Platinum Plus Hot-Plug Redundant Power Supply (up to 94% efficiency).

Technical Specifications

Component	Datasheet Specifications
Processor Family	Intel® Xeon® E3-1200 v2 product family, Intel® Core™ i3-3000 series, Intel® Pentium® G2120 / G630
Processor Sockets	1 (Single-socket compute configuration)
Chipset	Intel® C204 Chipset
Memory Type	PC3-12800E UDIMMs (DDR3 1600 MHz) with ECC protection
Memory Slots	4 DIMM slots (2 Channels / 2 DIMMs per channel)
Maximum Memory	32 GB (4 x 8GB UDIMMs)
Network Controller	HP Ethernet 1Gb 2-port 330i Adapter (2 x 1GbE RJ-45)
Storage Controller	Embedded HP Dynamic Smart Array B120i SATA RAID Controller (RAID 0/1/10)
Expansion Slots	• Slot 1: PCIe 3.0 x16 (Full-Height / Half-Length) • Slot 2: PCIe 2.0 x8 (Low-Profile)
System Fans	4 x Non-redundant fan modules
Power Supply Options	• 350W Standard non-redundant power supply • 460W Common Slot Hot-Plug Redundant Power Supply (Optional)

4 LFF Option: Supports up to four 3.5-inch Large Form Factor (LFF) SAS/SATA/SSD drives (Hot-Plug or Non-Hot-Plug).
8 SFF Option: Supports up to eight 2.5-inch Small Form Factor (SFF) SAS/SATA/SSD drives (Hot-Plug).
Max Storage Capacity: Up to 16 TB internal raw storage.

HP Smart Array P222: PCIe 3.0 x8 SAS Controller with 512MB Flash-Backed Write Cache (FBWC) for high-performance SAS/SATA HW RAID arrays.

Embedded Management: HPE iLO 4 (iLO Management Engine) with dedicated RJ-45 management port.
Proactive Monitoring: Active Health System, Agentless Management, HP Insight Control (Optional).

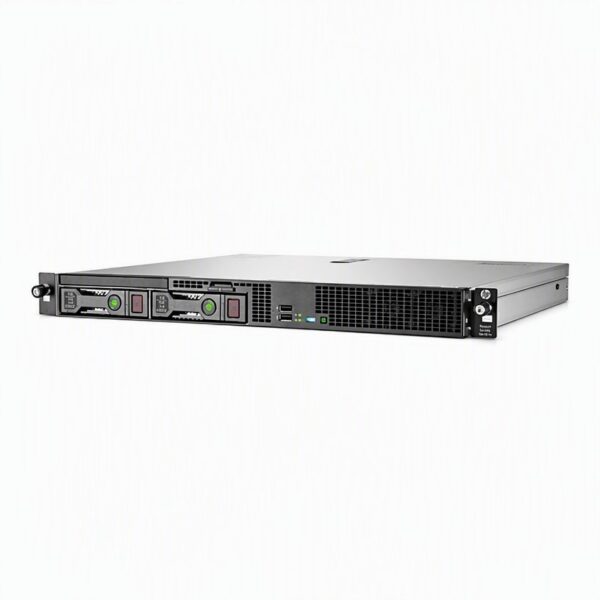

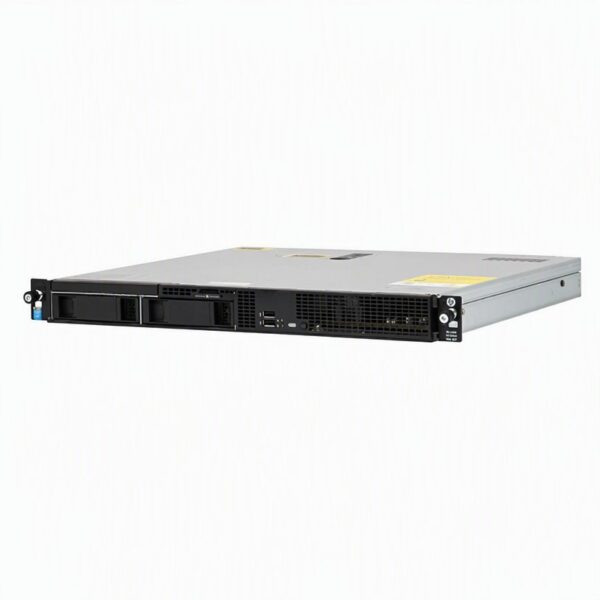

Front I/O Ports: 2 x USB 2.0, System Health LED, UID Button/LED, Power Button.

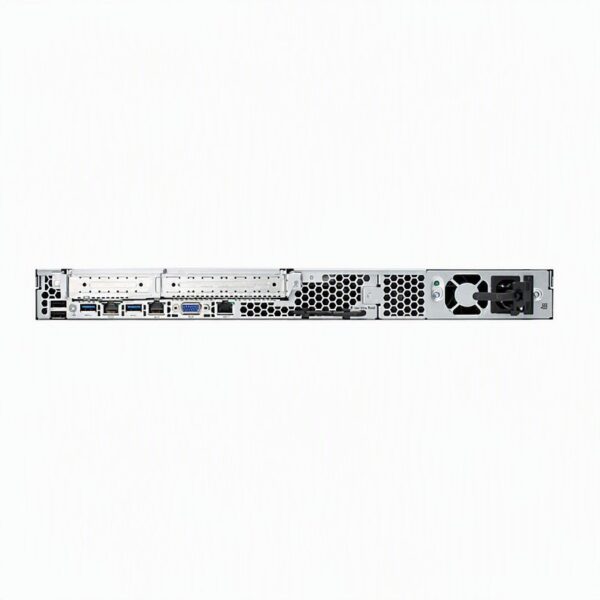

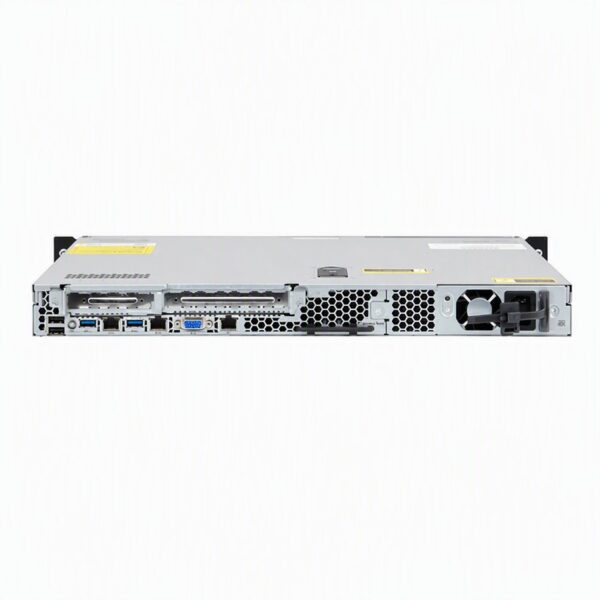

Rear I/O Ports: 4 x USB 2.0, 1 x VGA Video, 1 x Serial Port, 2 x 1GbE Network RJ-45, 1 x Dedicated iLO RJ-45.
Internal I/O: 1 x Internal USB 2.0 slot (for hypervisor boot media).
