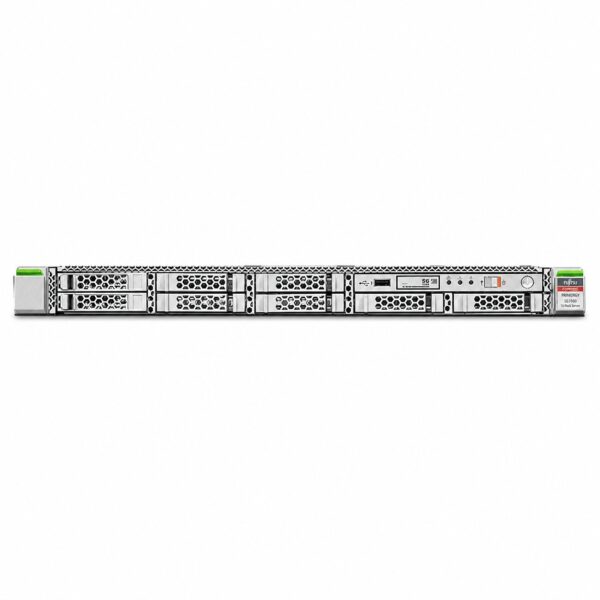

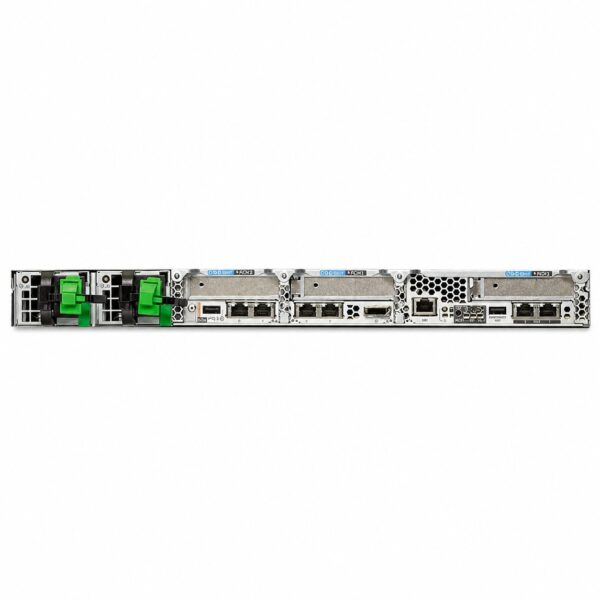

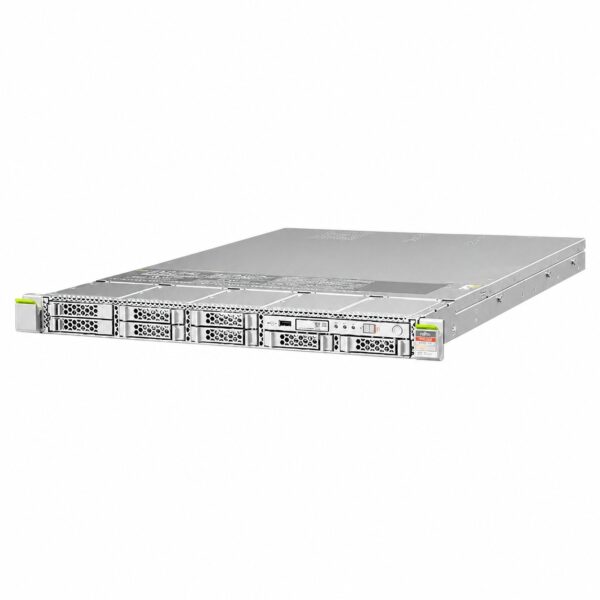

Fujitsu M10-1 Server
Fujitsu M10-1 Server
Fujitsu M10-1 Server
  1. Fujitsu M10-1 Server
  2. Fujitsu M10-1 Server
  3. Fujitsu M10-1 Server

Fujitsu M10-1 Server

Fujitsu M10-1 Server

SKU： M10-1 分类： 品牌： ,
Part No. 7105498
Manufacturer Fujitsu
Preceeded By Oracle Fujitsu M3000
Rack Units 1 RU
Height 42.5
Width 431.0
Depth 721.0
Weight [Kg] 18.00
Specification Safety

  • UL60950-1, 2nd edition + A1
  • CSA C22.2 No. 60950-1-07 + A1
  • EN60950-1:2006 + A1:2010 +A2:2011
  • IEC60950-1:2005, 2nd edition + A1:2009 (evaluated to all CB countries)
  • CFR21 Part 1040
  • IEC60825-1
  • IEC60825-2
  • CB Scheme with all country deviations
  • CNS14336
  • GB4943.1-2011
  • S-Mark
  • GOST-R certification mark

RFI/EMC

  • EN55022:2010
  • VCCI (2012)
  • FCC Part-15 (2012)
  • CNS13438:2006 (CISPR 22:2005 +A1:2005)
  • KCC
  • GOST-R certification mark
  • S-Mark
  • EN61000-3-2:2006 + A1:2009 + A2:2009
  • EN61000-3-3:2008
  • JIS C 61000-3-2 (2011)
  • ICES-003 Class A
  • AS/NZS CISPR 22 (2009)
  • GB9254-2008
  • GB17625.1-2003
  • CISPR 22:2008

Immunity

  • EN55024:2010
  • IEC61000-4-2
  • IEC61000-4-3
  • IEC61000-4-4
  • IEC61000-4-5
  • IEC61000-4-6
  • IEC61000-4-8
  • IEC61000-4-11

Telecommunications

  • EN 300 386 V1.4.1 (2008)
CPU Socket(s) 1
Compatible CPU(s) SPARC64 X: 16-core, dual-threaded SPARC V9 architecture, error-correcting code (ECC)–protected
Max CPU Clk Spd 2.8 GHz
CPU Cache L1: 64 K data cache and 64 K Instruction cache
L2: 22 MB
Max # Thread(s) 32
Max # Core(s) 16
Memory Slot(s) 16
Memory Capacity Up to 512 GB with 32 GB DIMM
Drive Bays As many as eight 600 GB internal 2.5-in. SAS HDDs or 200 GB SAS SSDs
Capacity 4.8 TB
HDD Suitability SAS HDD or SSD
Supported OS
  • Oracle Solaris 10
  • Oracle Solaris 11
USB Port(s) 2-port USB
PCI Slot(s) Three PCI Express 3.0 short, low-profile slots (eight lanes);
As many as 23 PCI Express slots with optional PCI expansion unit
LAN Socket(s) 4-port GbE
