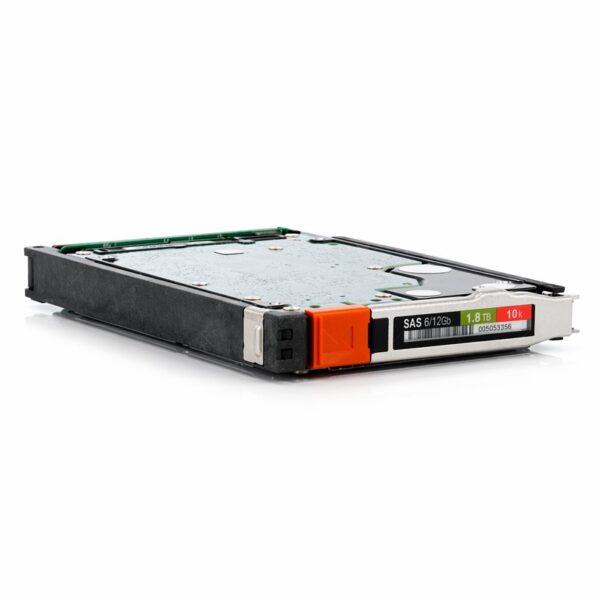

EMC D3-2S10-1800 Enterprise Hard Drive Datasheet

Product Overview

The EMC D3-2S10-1800 is an enterprise-class, high-performance Mission Critical hard disk drive (HDD) engineered for high-availability enterprise storage systems. It combines a fast 10,000 RPM spindle speed with a high-bandwidth 12Gb/s SAS interface, delivering the low latency and high IOPS (Input/Output Operations Per Second) required for demanding transactional workloads, real-time analytics, and enterprise database applications.

Technical Specifications

Parameter	Specification Details
EMC Marketing Part Number	D3-2S10-1800
EMC Replacement Part Numbers (PN)	005053356 / 005053359
Storage Capacity	1.8 TB (1,800 GB)
Rotational Speed	10,000 RPM (10K)
Interface	Dual-Port SAS 12Gb/s (Serial Attached SCSI)
Form Factor	2.5-inch (SFF – Small Form Factor)
Sector Format	512e (512 Emulation)
Raw Block Size	4160 bytes (Optimized for EMC data protection/parity overhead)

Performance & Reliability

• Interface Transfer Rate: 12 Gb/s (Backward compatible with 6Gb/s SAS architectures)

• Spindle Speed Latency: 3.0 ms (Average)

• Hot-Swappable: Yes (Supports online hot-plug replacement)

• Design Endurance: 24/7 continuous enterprise operation workloads

Storage System Compatibility

This drive carries specialized EMC Enterprise Firmware and is formatted to 4160-byte sectors (standard commercial drives use 512-byte or 4096-byte blocks). This specific block structure allows the EMC operating system to store data alongside end-to-end checksums and metadata for advanced data integrity.

Primary Storage Array Compatibility:

• EMC Unity Series (e.g., Unity 300, 400, 500, 600 / 300F, 400F, 500F, 600F Digital Arrays)

• EMC VNX2 Series (via supported 12G SAS expansion enclosures)

• EMC DAE (Disk Array Enclosures): 25-drive 2.5-inch 2U dense enclosures (e.g., high-speed performance tiers)
