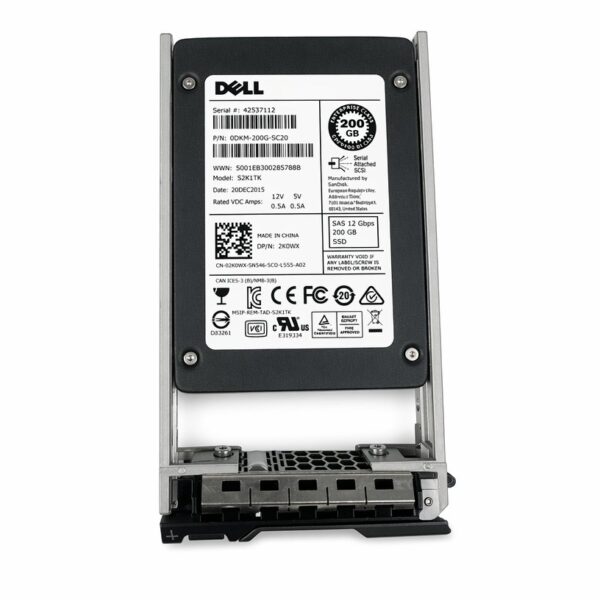

Product Technical Specification Sheet

1. Product Identification

• Brand Name: Dell

• Product Line: Write-Intensive (WI) Enterprise SSD Family

• Original Equipment Manufacturer (OEM): SanDisk / Western Digital Corporation

• OEM Underlying Series: Lightning® Gen. II 12Gb/s SAS SSD Series (Optimized Matrix)

• OEM Model Number: LT0200WM

• Dell Part Number (DP/N): 2XR0K / 02XR0K

• Target Environment: High-performance database logs, write-heavy caching tiers, Write-Ahead Logs (WAL), Online Transaction Processing (OLTP) journals, and high-velocity financial computing layers.

2. Core Architectural Specifications

• Form Factor: 2.5-inch Small Form Factor (SFF)

• Drive Z-Height Profile: 15.0 mm (Standard enterprise envelope)

• Formatted Capacity: 200 GB

• Interface Protocol: Dual-Port Serial Attached SCSI (SAS-3)

• Interface Link Speed: 12.0 Gbps (Backward compatible with 6.0 Gbps SAS-2)

• NAND Flash Technology: Enterprise 19nm Multi-Level Cell (eMLC)

• Sector Architecture: 512n (Native 512-byte block format) or 512e supportable

• Hot-Plug Support: Yes (Fully hot-swappable)

3. Performance & Throughput Profiles

Engineered specifically to maximize data throughput and deliver flat, predictable sub-millisecond write performance during heavy concurrent queue configurations:

Performance Metric	Rated Specification
Sustained Sequential Read (128KB)	Up to 1,000 MB/s
Sustained Sequential Write (128KB)	Up to 600 MB/s
Random Read IOPS (4KB, Steady State)	Up to 130,000 IOPS
Random Write IOPS (4KB, Steady State)	Up to 100,000 IOPS
Average Latency (Read / Write)	115 µs / 30 µs

4. Endurance, Reliability & Data Protection

High-Endurance Architecture

• Workload Classification: Write-Intensive (WI) / Endurance Class

• Drive Writes Per Day (DWPD): 10.0 DWPD (Calculated over a 5-year production deployment)

• Data Write Lifecycle Capacity: ~3.65 Petabytes Written (PBW)

Enterprise Integrity Safeguards

• MTBF (Mean Time Between Failures): 2.5 Million Hours

• UBER (Uncorrectable Bit Error Rate): Less than 1 sector error per $10^{17}$ bits read

• Dual-Port High Availability: True active-active dual-port pathways eliminate single connection vulnerabilities, offering seamless path failover down to the SAS backplane.

• Power Loss Protection (PLP): Discharges onboard hardware capacitors to flush volatile in-flight caching registers securely into physical NAND non-volatile logic blocks during unforeseen server power outages.

• Data Path Safeguards: End-to-End Data Protection with background error scrubbing prevents silent bit errors or cross-talk corruption.

5. Physical, Electrical & Environmental Parameters

Dimensions & Weight

• Physical Profile: 15.0 mm (Height) x 69.85 mm (Width) x 100.45 mm (Depth)

• Net Weight: ~145 g (Drive alone without caddy frame assembly)

Electrical Load Profiles

• Operating Input Voltage: Dual supply rails ($+5\text{VDC} \pm 5\%$ and $+12\text{VDC} \pm 5\%$)

• Active Operational Power (Max): ~9.0 Watts

• Idle State Power Consumption: ~3.9 Watts

Environmental Limits

• Operating Ambient Temperature: 0°C to 70°C (32°F to 158°F)

• Non-Operating Storage Range: -40°C to 85°C

• Operating Shock Limit: 1,000 G for 0.5 ms
