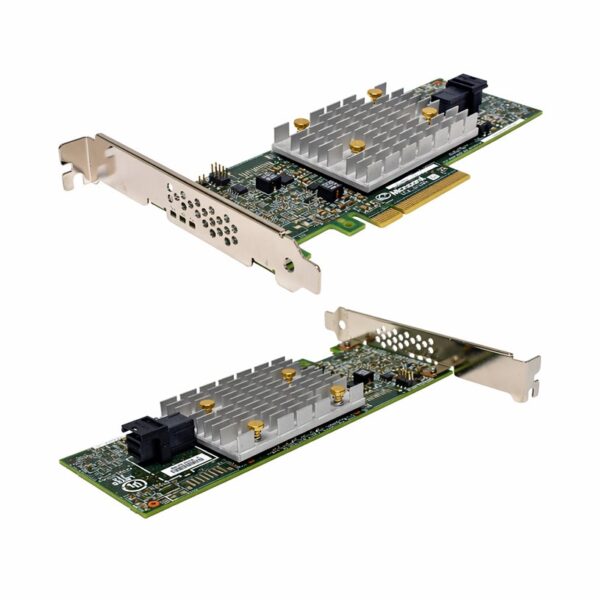

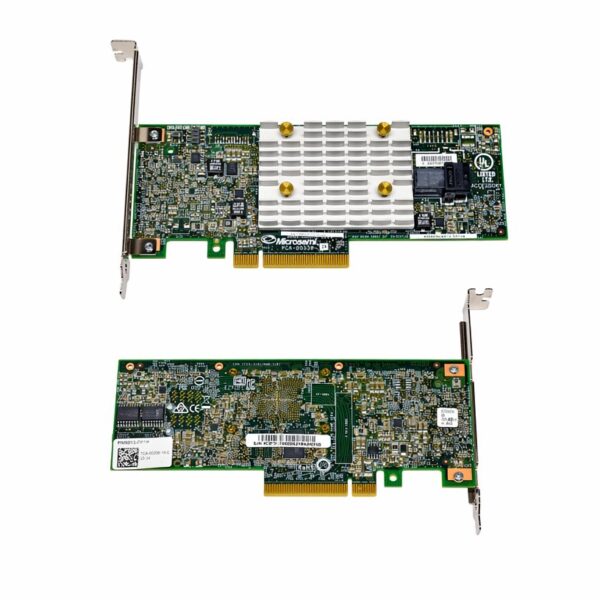

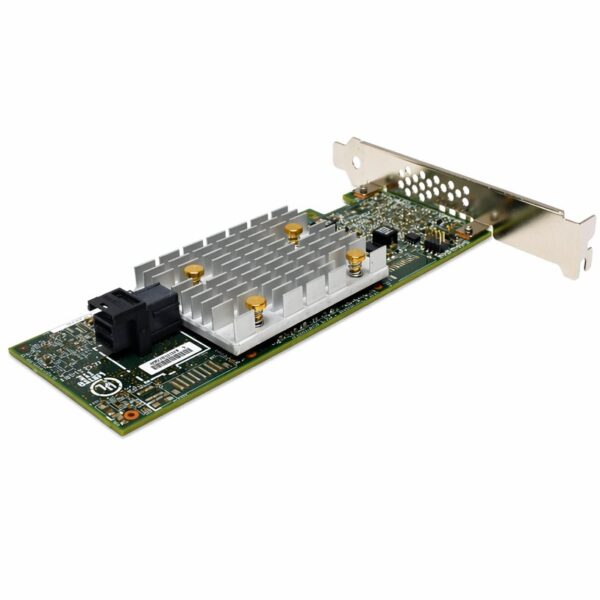

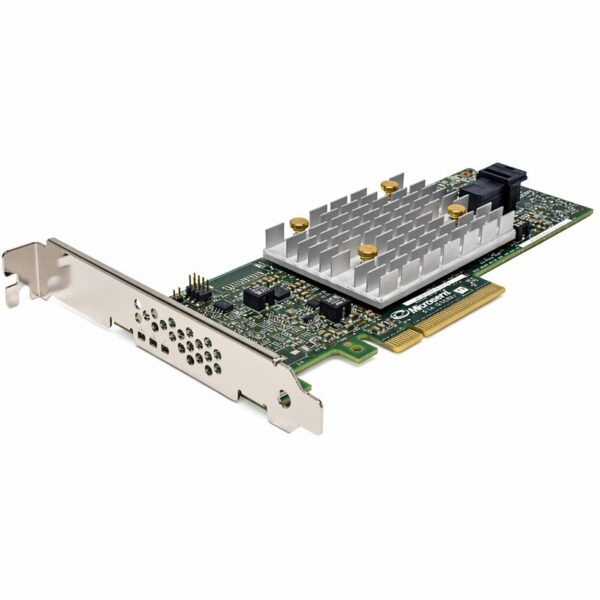

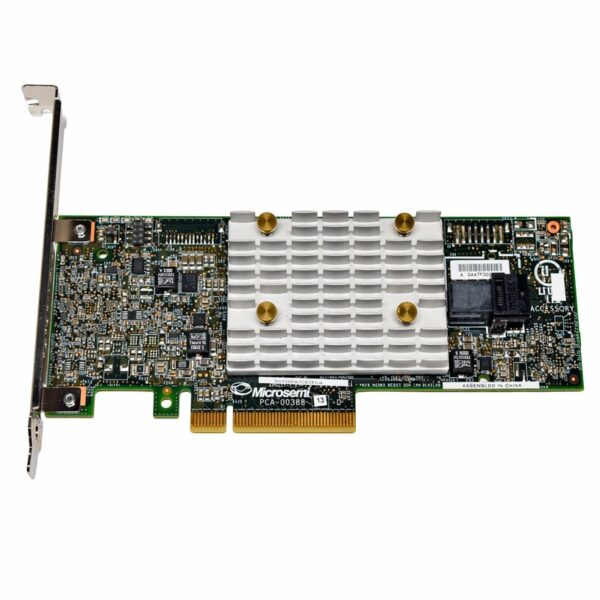

Adaptec Microsemi SmartRAID 3101-4i 12Gbps 4-Channel SAS/SATA RAID Controller

Overview

The Adaptec by Microsemi SmartRAID 3101-4i (built on the 28nm SmartROC 3100 protocol controller silicon) is an enterprise-class, entry-level PCIe Gen3 x8 storage controller designed for transactional workloads, high-performance database infrastructure, and dense scale-out server environments. It delivers up to 1.5 million 4K random read IOPS and offers exceptional energy efficiency, consuming up to 40% less power than previous-generation entry adapters.

Technical Specifications

Parameter	Specification Details
Model Name	SmartRAID 3101-4i
Microchip / HPE SKU	2291700-R
PCB Part Number (P/N)	TCA-00388-13-D
Interface Bracket	Full-Height (FP / Full-Profile) pre-installed
Bus Interface	PCI Express 3.0 x8 (8-lane PCIe Gen3 interface)
Processor Technology	12 Gbps SmartROC (RAID-on-Chip) processor silicon
Onboard Cache Memory	1 GB DDR4 running at 2100 MHz clock speeds
Cache Protection Backup	Not Available (NA) on entry-level 3101 variants
Physical Connectors	1 x Internal Mini-SAS HD (SFF-8643) single connector block
Logical Drive Lanes	4 internal SAS-3 / SATA-III logical data channels

Storage & Array Architectures

Performance & Advanced RAID Management

• Basic Volume Grouping: RAID 0, RAID 1, RAID 10

• Parity Array Support: RAID 5, RAID 6, RAID 50, RAID 60

• Advanced Data Management (ADM): Supports Triple Mirroring (1 ADM) and Split Mirroring (10 ADM) topologies for extreme high-availability redundancy configurations.

• Mixed Mode Capabilities: Enables simultaneous execution of structured RAID arrays alongside unconfigured raw pass-through HBA devices on the same controller board.

• Device Scalability: Supports up to a total of 256 SAS or SATA end-devices when integrated with external SAS expander infrastructure backplanes.

Core Capabilities & Performance Tuning

Smart Power & Drive Handling Optimization:

The card implements highly tailored drive spin-up management alongside adaptive power profiling to reduce active operational overheads within tight server topologies.

• Advanced Feature Set:

  • Quick Array Initialization and Online Capacity Expansion (OCE).

  • Dynamic Array Level Migration (RLM).

  • Global, Dedicated, and Pooled Hot Spare allocation with automated or manual target fallback rebuild mechanics.

  • Integrated Dynamic Caching algorithms paired with Native Command Queuing (NCQ).

• Enclosure Interfacing: Native SES (SCSI Enclosure Services) and SGPIO backend enclosure management routines.

• Drive Block Compatibility: Fully handles native 4K sector size topologies (4Kn) in tandem with legacy 512-byte (512e/512n) drive configurations.

• Power Savings: Built-in dynamic controller power management system, delivering up to 30% aggregate reduction in structural thermal dissipation.

Operating System & Management Infrastructure

Software Management Suite

• maxView Storage Manager: Web-based centralized graphical user interface (GUI) designed for remote configurations, firmware deployments, and email SMTP notification parameters.

• ARCCONF CLI: Scriptable command-line utility for system integration and automated health monitoring.

• Pre-Boot Utilities: Legacy BIOS configuration console (Ctrl+A) along with updated UEFI Human Interface Infrastructure (HII) extensions.

OS Ecosystem Support

• Microsoft Windows Server 2016 / 2019 / 2022 and newer

• Red Hat Enterprise Linux (RHEL) & SUSE Linux Enterprise Server (SLES)

• VMware ESXi hypervisor configurations (SMI-S infrastructure compliant)

• Community Linux branches (Ubuntu, Debian, Fedora) along with FreeBSD platforms
